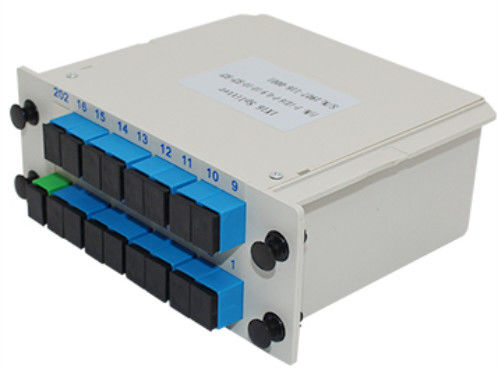

PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks

PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks
PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Optical Splitter
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T,L/C
Supply Ability: 30,000 PCS / Month
Get Best Price Contact Now
Detail Information
Model: PLC Splitter Bnad: HELLOSIGNAL
Cord: LGX Connector: SC/FC/LC/ST, APC/UPC
Highlight:

1X4/8/16 PLC Fiber Splitter

,

Single Mode Fiber Optic Splitter

,

SC/FC/LC/ST Connection PLC Splitter

Product Description

PLC Fiber Splitter 1X4/8/16 LGX
Single Mode Optic Fiber Splitter with SC/FC/LC/ST Connection
Fiber Optic Splitter Overview
1×4/1×8/1×16/1×32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER
Inquire Now PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks 0

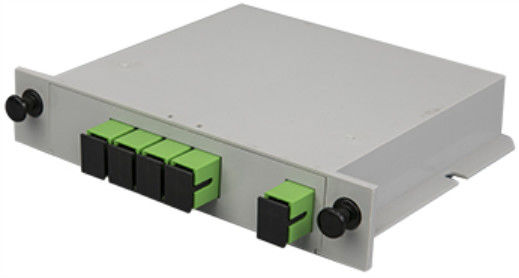

PLC Splitter Configurations
PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks 1

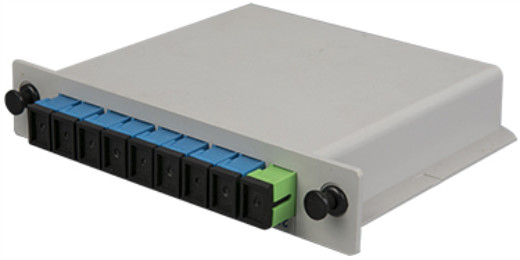

1X8 PLC Splitter
PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks 2
1X16 PLC Splitter
PLC Fiber Splitter 1X4/8/16 Single Mode with SC/FC/LC/ST Connection for High-Performance Fiber Optic Networks 3
1X32 PLC Splitter
Technical Specifications
Parameter 1x2 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32 2x64
Operation Wavelength 1260nm~1650nm
L max(dB) ≤3.8 ≤7.5 ≤10.5 ≤13.6 ≤17.0 ≤20.2 ≤4.4 ≤11.0 ≤14.3 ≤17.5 ≤21.2
IL Uniformity(dB) ≤0.6 ≤0.6 ≤1.0 ≤1.0 ≤1.3 ≤1.8 ≤0.8 ≤1.0 ≤1.5 ≤1.8 ≤3.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4
Return Loss(dB) ≥55
Directivity(dB) ≥55
Storage Temperature(℃) -40~85
Operation Temperature(℃) -40~85
Configuration Options
Feature Options
Splitter Configuration 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x4, 2x8, 2x16, 2x32, 2x64
Connector Type SC, LC, FC, ST
Ferrule Type UPC, APC
Fiber Type SM, OM1, OM2, OM3, OM4
Splitter Type T (Tube), C (Cassette), M (Module)
Jacket Material PVC, LSZH
Jacket Color Yellow, Blue, Black, Orange, Aqua, Purple, Customized
Diameter (mm) 0.9, 2.0, 3.0
Cable Length (cm) Input/Output: 50, 70, 100, 150
Related Products
Image Product Description Category
PLC Splitter 1×16 Single Mode Blockless PLC Splitter 1×16 Single Mode Blockless 0.9mm Fiber Cable with SC/UPC SC/APC Connectors (7233201) Fiber Optic Splitter, Optical Components, PLC Fiber Optic Splitter
1×8 Fiber PLC Splitter Single Mode Blockless 1×8 Fiber PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler (7233202) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
1×2 PLC Splitter Single Mode Blockless 1×2 PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler (7233203) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
PLC Splitter 1×4 Single Mode Blockless PLC Splitter 1×4 Single Mode Blockless PLC Fiber Optic Coupler (7233204) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

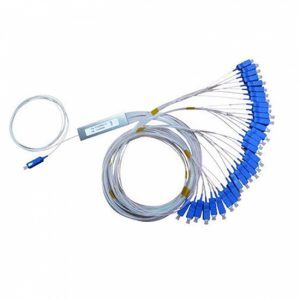

PLC Splitter 1×32 Single Mode Blockless PLC Splitter 1×32 Single Mode Blockless PLC Fiber Optic Coupler (7233205) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
