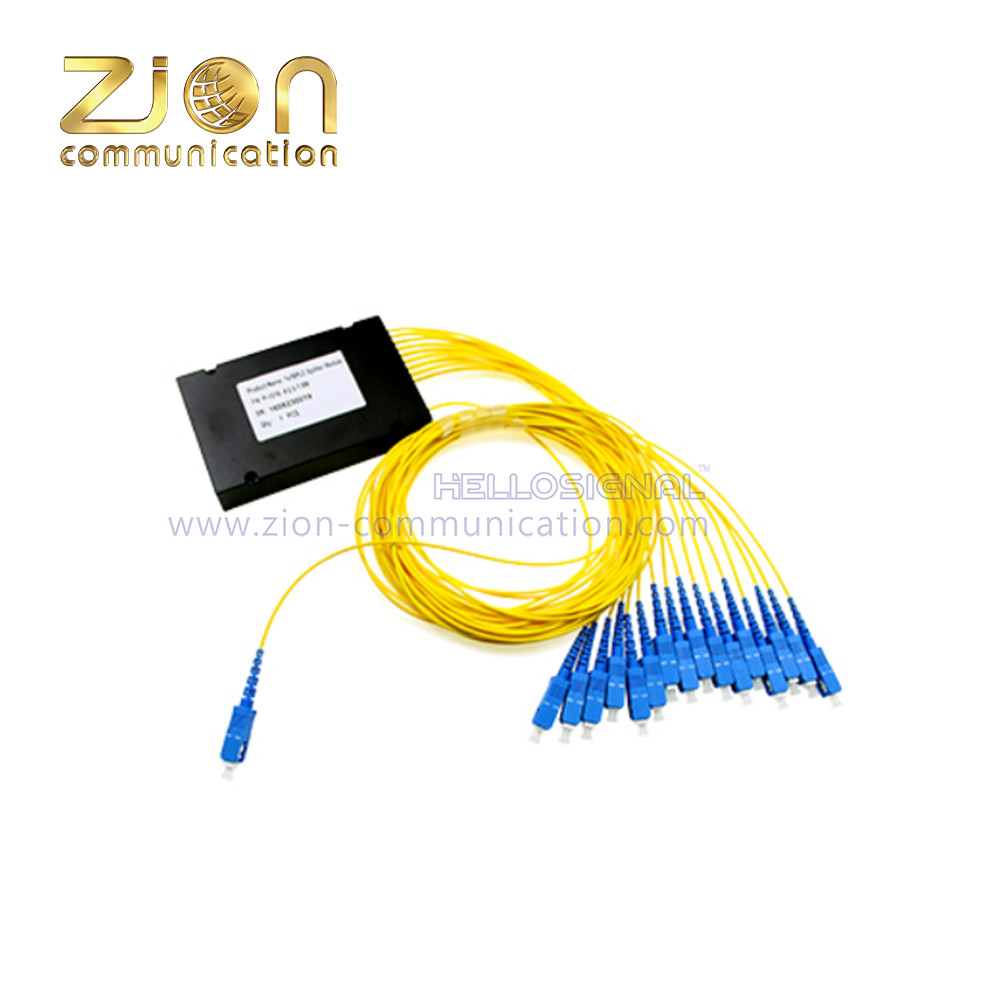

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter
1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Optical Splitter
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T, L/C
Supply Ability: 30,000 PCS / Month
Get Best Price Contact Now
Detail Information
Model: PLC Splitter Bnad: HELLOSIGNAL
Cord: ABS Connector: SC/FC/LC/ST, APC/UPC

Product Description



Fiber Optic Splitter

1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER

Inquire Now
1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 0

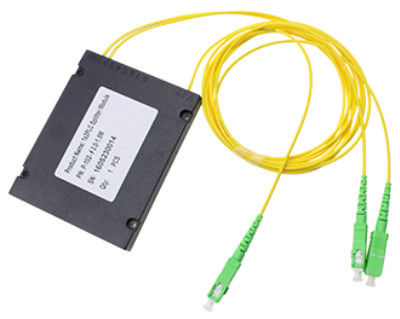

Optical Fiber Splitter — PLC Splitter ABS





1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 1













1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 2

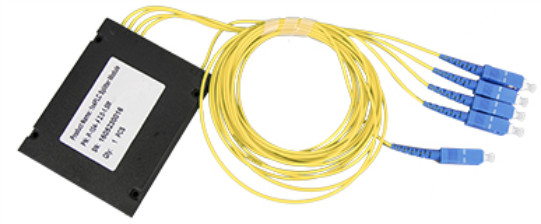

1X4 PLC Splitter 1X8 PLC Splitter



1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 3

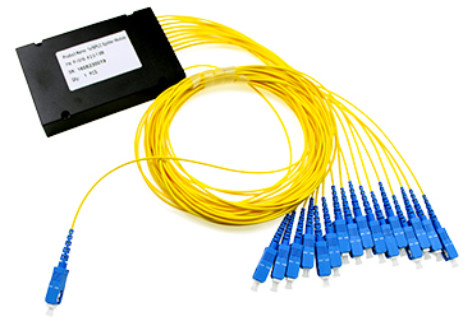

1X16 PLC Splitter

Structure information
Parameter 1x2 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32 2x64
Operation Wavelength 1260nm~1650nm
L max(dB) ≤3.8 ≤7.5 ≤10.5 ≤13.6 ≤17.0 ≤20.2 ≤4.4 ≤11.0 ≤14.3 ≤17.5 ≤21.2
IL Uniformity(dB) ≤0.6 ≤0.6 ≤1.0 ≤1.0 ≤1.3 ≤1.8 ≤0.8 ≤1.0 ≤1.5 ≤1.8 ≤3.0
PDL(dB) . ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4
Return Loss[dB) ≥55
Directivit(dB) ≥55
Storage
Temperature(℃)		 -40~85
Operation
Temperature(℃)		 -40~85


Technical Specifcation


Code Splitter
Configuration 0102 0104 0108 0116 0132 0164 0204 0208 0216 0232 0264
1x2 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32 2x64
Connector Type SC LC FC ST
Ferrule Type UPC APC
Fiber Type SM OM1 OM2 OM3 OM4
Splitter Type T C M
TubeType Cassette Type Module Type
Jacket Material PVC LSZH
Color Yellow Blue Black Orange Aqua Purple Customized
Diameter (mm) 0.9 2.0 3.0 ····
Cable
Length(cm)		 Input 50 70 100 150 ····
Output 50 70 100 150 ····





1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 4 PLC Splitter 1×16 Single Mode Blockless 0.9mm Fiber Cable with SC/UPC SC/APC Connectors(7233201) Fiber Optic Splitter, Optical Components, PLC Fiber Optic Splitter
1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 5 1×8 Fiber PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler(7233202) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 6 1×2 PLC Splitter Single Mode Blockless PLC Fiber Optic Coupler(7233203) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 7 PLC Splitter 1×4 Single Mode Blockless PLC Fiber Optic Coupler(7233204) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 8 PLC Splitter 1×32 Single Mode Blockless PLC Fiber Optic Coupler(7233205) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 9 Optic Fiber Splitter 1X8 LGX Single Mode PLC Fiber Optic Splitter with SC FC Connection(7233206) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

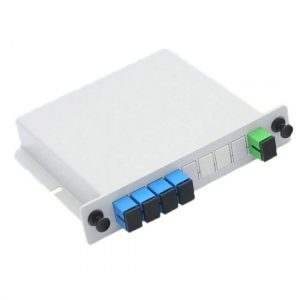

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 10 Fiber Optic Splitter 1×4 LGX Single Mode PLC Fiber Optic Splitter with SC FC Connection(7233207) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

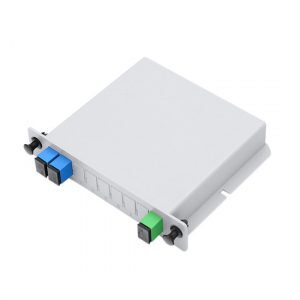

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 11 Fiber Optic Splitter 1×2 LGX Single Mode PLC with SC FC Connection(7233208) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

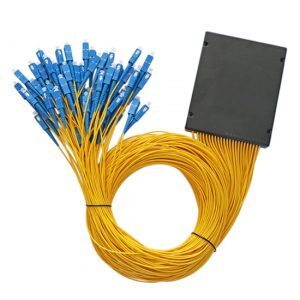

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 12 PLC Optical Splitter 1×64 Single Mode PLC Fiber Optic Splitter ABS Box Type with SC Connector(7233209) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

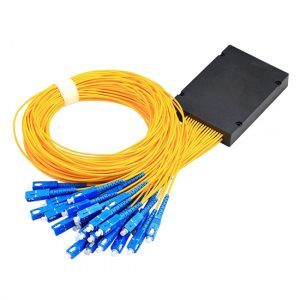

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 13 PLC Optical Splitter 1×32 Single Mode PLC Fiber Optic Splitter ABS Box Type with SC Connector(7233210) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

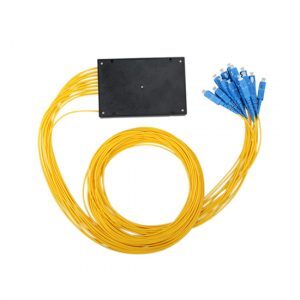

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 14 PLC Optical Splitter 1×16 Single Mode PLC Fiber Optic Splitter ABS Box Type with SC Connector(7233211) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

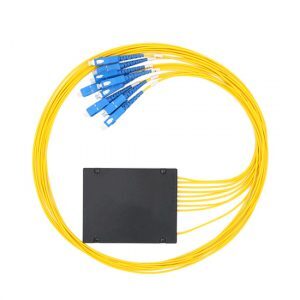

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 15 PLC Optical Splitter 1×8 Single Mode PLC Fiber Optic Splitter ABS Box Type with SC Connector(7233212) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 16 PLC Optical Splitter 1×4 Single Mode PLC Fiber Optic Splitter ABS Box Type with SC Connector(7233213) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

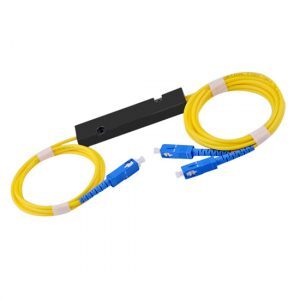

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 17 PLC Optical Splitter 1×2 Single Mode PLC Fiber Optic Splitter ABS Box Type with SC Connector(7233214) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components

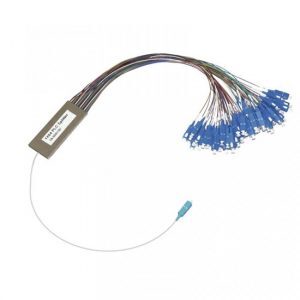

1x4/8/16 PLC Fibre Splitter in ABS Box , SC/LC/FC/ST, UPC/APC , Fiber Optical Splitter 18​ PLC Splitter 1×64 Single Mode Blockless PLC Fiber Optic Splitter(7233215) PLC Fiber Optic Splitter, Fiber Optic Splitter, Optical Components
