Mini Module PLC Fiber Splitter with SC/LC/FC/ST Connectors and UPC/APC for Fiber Optic Networks

Mini Module PLC Fiber Splitter with SC/LC/FC/ST Connectors and UPC/APC for Fiber Optic Networks
Mini Module PLC Fiber Splitter with SC/LC/FC/ST Connectors and UPC/APC for Fiber Optic Networks Mini Module PLC Fiber Splitter with SC/LC/FC/ST Connectors and UPC/APC for Fiber Optic Networks Mini Module PLC Fiber Splitter with SC/LC/FC/ST Connectors and UPC/APC for Fiber Optic Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Optical Splitter
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T,L/C
Supply Ability: 30,000 PCS / Month
Get Best Price Contact Now
Detail Information
Model: PLC Splitter Bnad: HELLOSIGNAL
Cord: Mini Module Connector: SC/FC/LC/ST, APC/UPC
Highlight:

Mini Module PLC Fiber Splitter

,

SC/LC/FC/ST Connectors Fiber Optic Splitter

,

UPC/APC PLC Splitter

Product Description

1x8/16/32 PLC Fiber Splitter - Mini Module
High-performance PLC fiber optic splitters available in 1x4, 1x8, 1x16, and 1x32 configurations with SC, LC, FC, and ST connectors in UPC/APC options.
Inquire Now Mini Module PLC Fiber Splitter with SC/LC/FC/ST Connectors and UPC/APC for Fiber Optic Networks 0
PLC Splitter Mini Module
Mini Module PLC Fiber Splitter with SC/LC/FC/ST Connectors and UPC/APC for Fiber Optic Networks 1

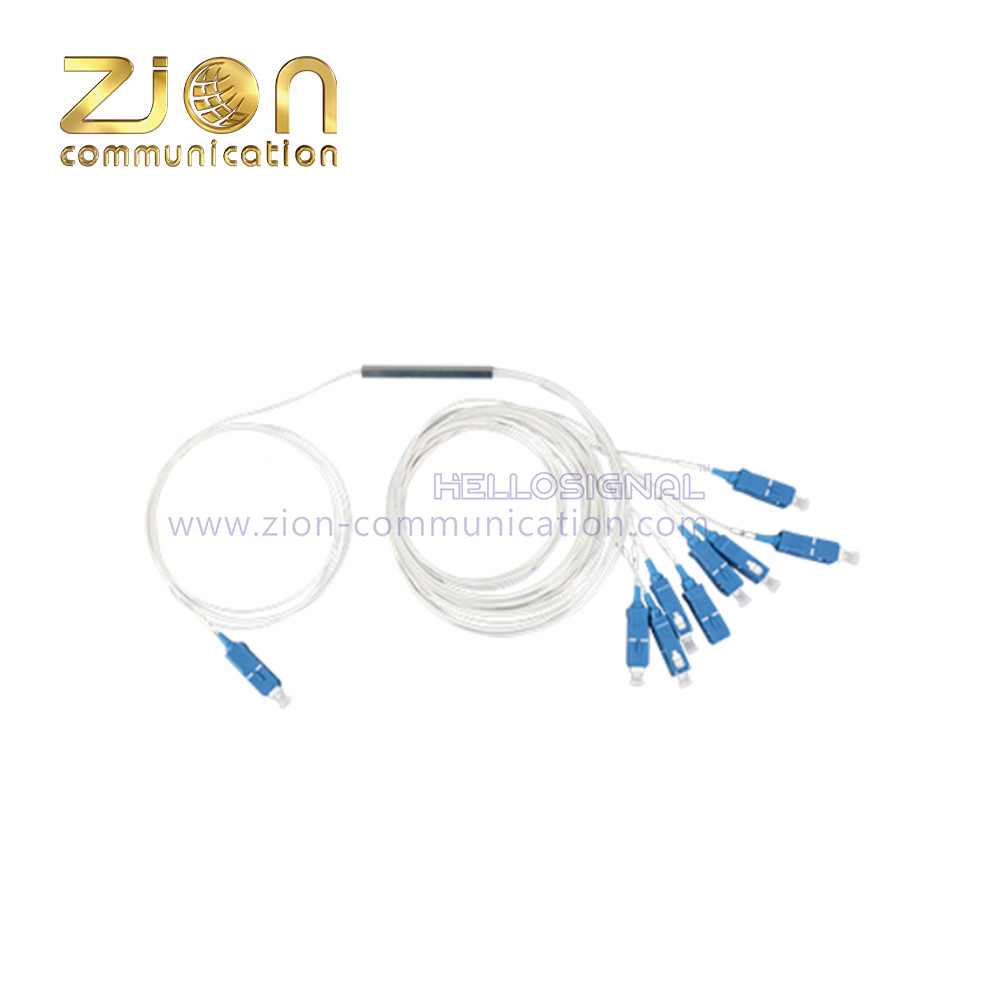

1X8 PLC Splitter With Connector
Mini Module PLC Fiber Splitter with SC/LC/FC/ST Connectors and UPC/APC for Fiber Optic Networks 2

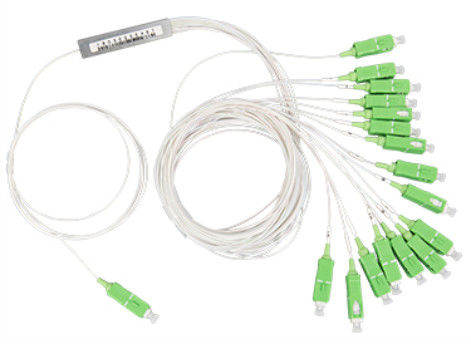

1X16 PLC Splitter With Connector
Mini Module PLC Fiber Splitter with SC/LC/FC/ST Connectors and UPC/APC for Fiber Optic Networks 3

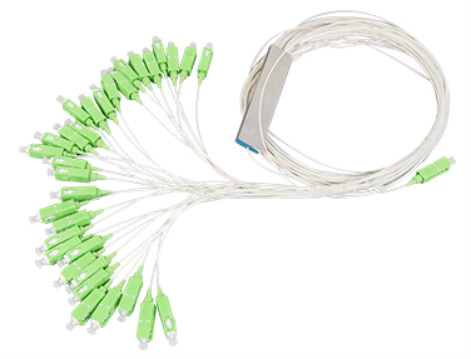

1X32 PLC Splitter With Connector
Technical Specifications
Parameter 1x2 1x4 1x8 1x16 1x32 1x64
Operation Wavelength 1260nm~1650nm
L max(dB) ≤3.8 ≤7.5 ≤10.5 ≤13.6 ≤17.0 ≤20.2
IL Uniformity(dB) ≤0.6 ≤0.6 ≤1.0 ≤1.0 ≤1.3 ≤1.8
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return Loss(dB) ≥55
Directivity(dB) ≥55
Storage Temperature(℃) -40~85
Operation Temperature(℃) -40~85
Configuration Options
Feature Available Options
Splitter Configuration 1x2, 1x4, 1x8, 1x16, 1x32, 1x64
Connector Type SC, LC, FC, ST
Ferrule Type UPC, APC
Fiber Type Single Mode, OM1, OM2, OM3, OM4
Splitter Type Tube Type, Cassette Type, Module Type
Jacket Material PVC, LSZH
Color Options Yellow, Blue, Black, Orange, Aqua, Purple, Customized
Diameter (mm) 0.9, 2.0, 3.0
Cable Length - Input (cm) 50, 70, 100, 150
Cable Length - Output (cm) 50, 70, 100, 150
