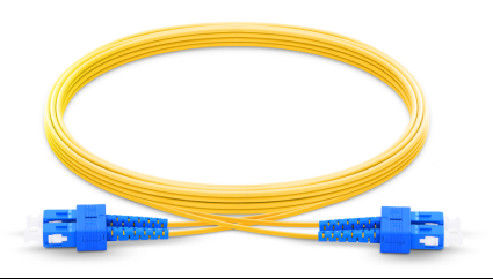

G655 PVC Jacket Fiber Optic Patch Cord with SC Connector for High-Performance Networking

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	SC

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G652D , G657A1/2 , G655	Connector:	SC
Jacket:	LSZH Or PVC...	Color:	12 Colours As Per IEC 60304
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	PVC SC Fiber Patch Cable , SC Fiber Patch Cable , SC Fiber Optic Patch Cord

Product Description

G655 PVC Jacket Fiber Optic Patch Cord with SC Connector

Fiber Optic Patch Cord Overview

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now G655 PVC Jacket Fiber Optic Patch Cord with SC Connector for High-Performance Networking 0

Fiber Patch Cord - SC Patch Cords

SC UPC OM1 SX

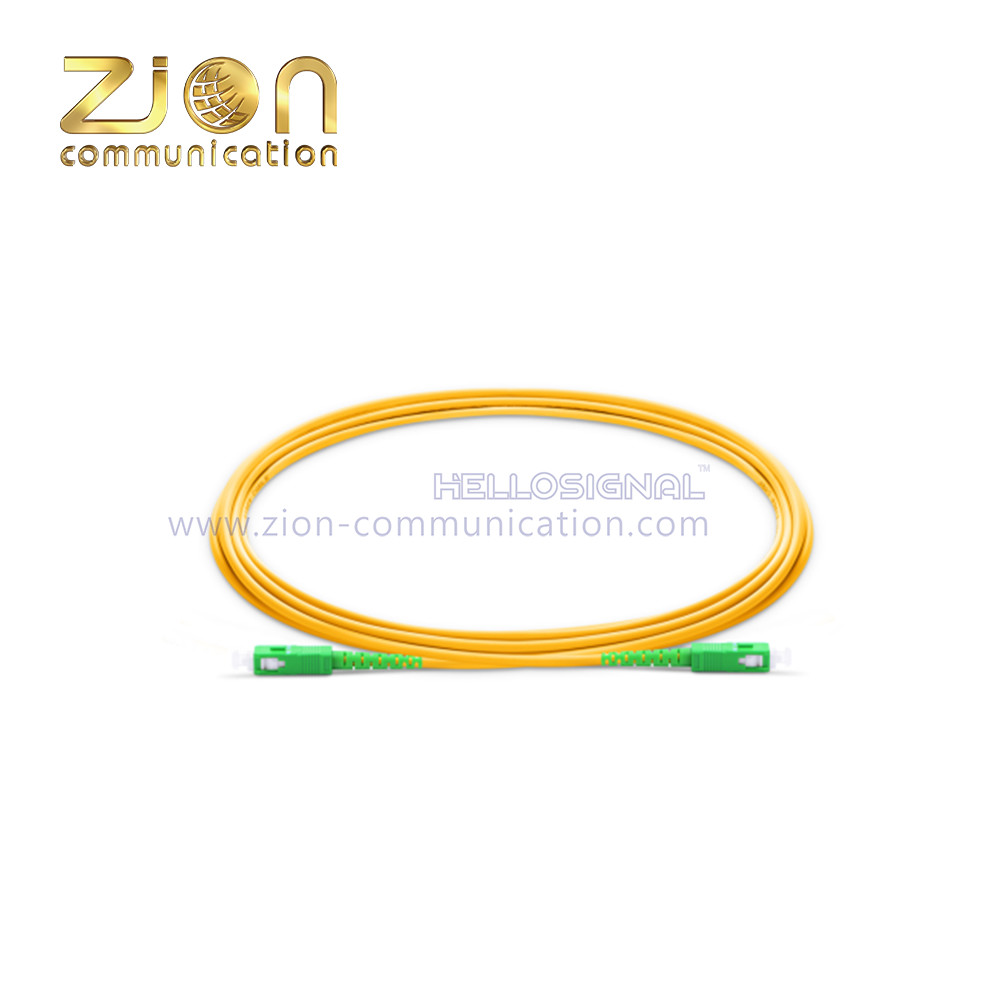

SC APC OM2 SX

SC UPC OM1 DX

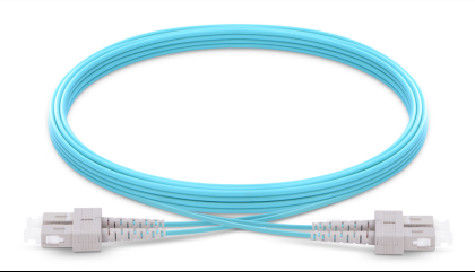

SC UPC OM3/OM4 SX/DX

Structure Information

Cord	Patch Cord & Pigtail
A Side	Connector Type: SC / LC / ST / FC / D4 / E2000 / MU Ferrule Type: UPC \| APC
B Side	Connector Type: SC / LC / ST / FC / D4 / E2000 / MU Ferrule Type: UPC \| APC
Fiber Model	SM: G652D \| G657A1 \| G657A2 \| G657B3 \| G655 MM: OM1 \| OM2 \| OM3-150 \| OM3-300 \| OM4-550 \| OM5
Cable Diameter	Φ0.9mm \| Φ2.0mm \| Φ3.0mm
Core Number	SX \| DX
Jacket	Material: PVC \| LSZH \| OFNR \| RE \| TPU Color: Yellow \| Blue \| Green \| Customized
Cable Length	1m \| 2m \| 3m \| 5m \| 10m

Technical Specification

Parameter	Single Mode	Multimode
Insertion Loss (Typical)	≤0.2 dB	≤0.2 dB
Insertion Loss (Maximum)	≤0.3 dB	≤0.3 dB
Return Loss (APC)	≥60 dB	≥35 dB
Return Loss (UPC)	≥50 dB	≥35 dB
Mating Durability	≤0.2 dB
Durability	≥1000 times
Operating Temperature	-20°C to 85°C / -40°C to 85°C

Product Variations

Image	Description	Type
	SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2121D112-2(7242113)SM(OS2)G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC 2121D412-2(7242114)OM2 G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord

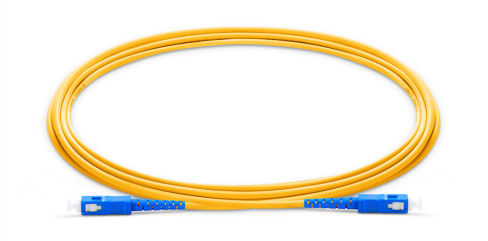

	SC UPC to SC UPC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2121S112-2(7242115)SM(OS2)G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC UPC to SC UPC Simplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC 2121S412-2(7242116)OM1 G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2222D112-2(7242117)SM(OS2)G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC APC to SC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2222S112-2(7242118)SM(OS2)G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
