LSZH Jacket FC Connector Fiber Optic Patch Cord with G657A1/2 Fiber for High Performance

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	FC

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G652D , G657A1/2 , G655	Connector:	FC
Jacket:	LSZH Or PVC...	Color:	12 Colours As Per IEC 60304
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	Fiber Optic FC Patch Cable , G657A1/2 Fiber Optic Patch Cord , LSZH Jacket Fiber Optic Patch Cord

Product Description

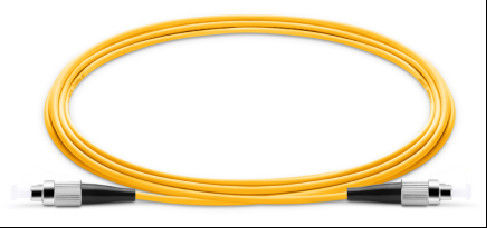

LSZH Jacket FC Connector Fiber Optic Patch Cord G657A1/2

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Fiber Patch Cord – FC Patch Cords

FC UPC OM1 SX

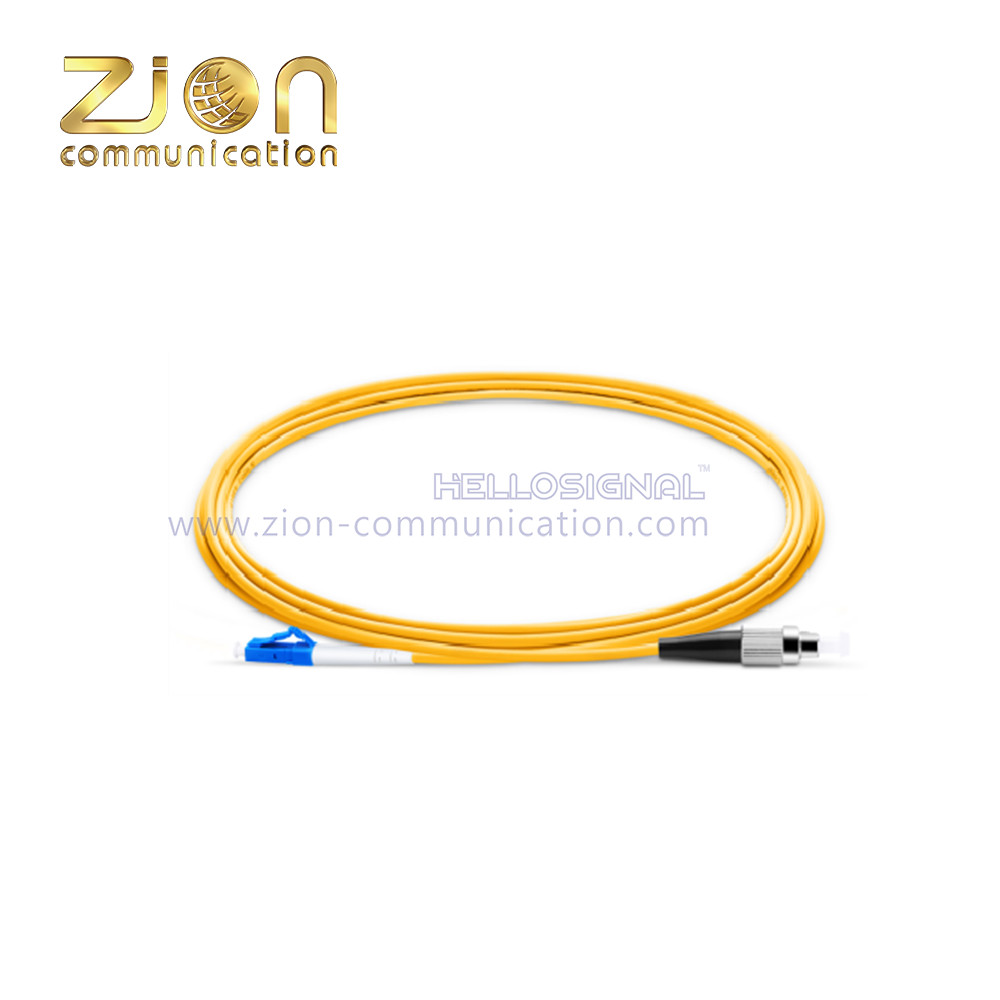

LC to FC UPC OM2 SX

FC APC OM1 DX

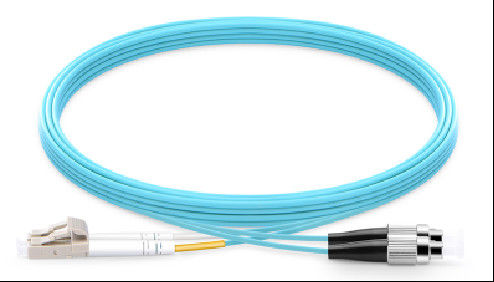

LC to FC UPC OM3/OM4 SX/DX

Structure Information

Cord	Patch Cord & Pigtail
A Side Connector Type	SC / LC / ST / FC / D4 / E2000 / MU
Ferrule Type	UPC \| APC
B Side Connector Type	SC / LC / ST / FC / D4 / E2000 / MU
Ferrule Type	UPC \| APC
Fiber Model	SM: G652D \| G657A1 \| G657A2 \| G657B3 \| G655 MM: OM1 \| OM2 \| OM3-150 \| OM3-300 \| OM4-550 \| OM5
Cable Diameter	Φ0.9mm \| Φ2.0mm \| Φ3.0mm
Core Number	SX \| DX
Jacket Material	PVC \| LSZH \| OFNR \| RE \| TPU
Color	Yellow \| Blue \| Green \| Customized
Cable Length	1m \| 2m \| 3m \| 5m \| 10m

Technical Specification

Parameter	Single Mode	Multimode
Insertion Loss (Typical)	≤0.2 dB	≤0.2 dB
Insertion Loss (Maximum)	≤0.3 dB	≤0.3 dB
Return Loss (APC)	≥60 dB	≥35 dB
Return Loss (UPC)	≥50 dB	≥35 dB
Mating Durability	≤0.2 dB
Durability	≥1000 times
Operating Temperature	-20°C to 85°C / -40°C to 85°C
