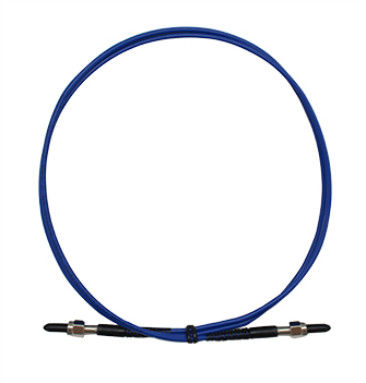

LSZH Jacket G652D Fiber Optic Patch Cord SMA To SMA Connector

LSZH Jacket G652D Fiber Optic Patch Cord SMA To SMA Connector
LSZH Jacket G652D Fiber Optic Patch Cord SMA To SMA Connector
LSZH Jacket G652D Fiber Optic Patch Cord SMA To SMA Connector LSZH Jacket G652D Fiber Optic Patch Cord SMA To SMA Connector LSZH Jacket G652D Fiber Optic Patch Cord SMA To SMA Connector
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: SMA
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T, L/C
Supply Ability: 30,000 PCS / Month
Get Best Price Contact Now
Detail Information
Fiber Unit: G652D , G657A1/2 , G655 Connector: SMA To SMA
Jacket: LSZH Or PVC... Color: 12 Colours As Per IEC 60304
Package: 1 PC/Plastic Bag, PCS/Carton
Highlight:

LSZH SMA Fiber Patch Cable

,

G652D SMA Fiber Patch Cable

,

SMA Fiber Optic Patch Cord

Product Description



Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now





LSZH Jacket G652D Fiber Optic Patch Cord SMA To SMA Connector 0

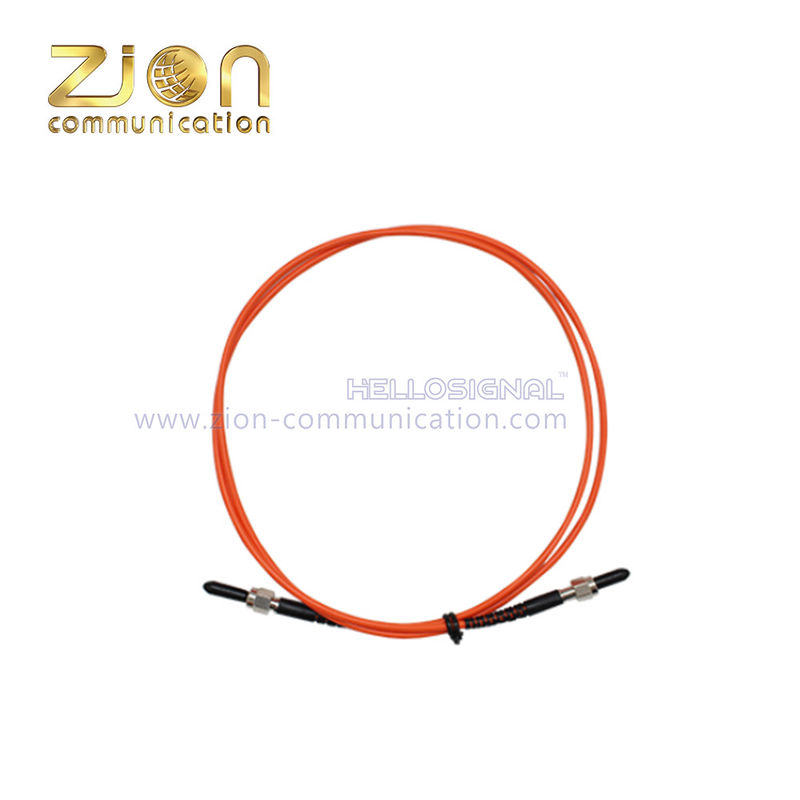

Fiber Patch Cord — SMA Patch Cords





LSZH Jacket G652D Fiber Optic Patch Cord SMA To SMA Connector 1







LSZH Jacket G652D Fiber Optic Patch Cord SMA To SMA Connector 2
SMA SM SMA MM






Structure information


Cord Patch Cord & Pigtall
A Side Connector Type SC / LC / ST / FC / D4 / E2000 / MU····
Ferrule Type UPC APC
B Side Connector Type SC / LC / ST / FC / D4 / E2000 / MU····
Ferrule Type UPC APC
Fiber Model SM G652D G657A1 G657A2 G657B3 G655 ·····
MM OM1 OM2 OM3-150 OM3-300 OM4-550 OM5
Cable Diameter Φ0.9mm Φ2.0mm Φ3.0mm ·····
Core Number SX DX ·····
Jacket Material PVC LSZH OFNR RE TPU ·····
Color Yellow Blue Green Customized
Cable Length 1m 2m 3m 5m 10m ·····





Technical Specifcation


Connector Type FC / SC / LC / ST / D4 / E2000 / MU ···
Fiber Type SM MM
Insertion Loss(Typic) ≤0.2 dB ≤0.2 dB
Insertion Loss(Max) ≤0.3 dB ≤0.3 dB
Return Loss APC ≥60 dB ≥35dB
UPC ≥50 dB ≥35dB
Mating Durability ≤0.2 dB
Durability ≥1000 times
Operating Temperature (℃) -20~85
Operating Temperature (℃) -40~85
