Detail Information

Fiber Unit:	OS1/OS2 , 9/125	Tight Buffer Fiber:	900μm Tight Buffer
Connector:	SC, LC, ST, FC, MU And E2000	Jacket:	LSZH
Color:	Orange	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	9/125μM Fiber Patch Cord , Simplex Fiber Patch Cord , OS1/OS2 Fiber Optic Patch Cord

Product Description

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

9/125 (OS1-OS2) Optical Fibre Patch Cords
Features:
✔ SC, LC, ST, FC, MU and E2000 connectors ✔ Low smoke zero halogen (LSZH) jacket in yellow colour ✔ 900μm tight buffer ✔ OS1/OS2 fibre conforms to ITU-652.D, TIA/EIA 492 CAAA ✔ Simplex and duplex assemblies ✔ Duplex assemblies available with clips (SC and LC) ✔ Different connector performance range for specific application ✔ Armoured option also available
Application:
✔ CATV / VIDEO ✔ Passive Optical Network PON ✔ WDM / DWDM ✔ FTTH ✔ Data centres - Support high speed multi channel video, data and voice ✔ services in metropolitan and access networks ✔ ATM, SONET and WDM
Connector Specification:
Optical Performance			Singlemode	Conformance
IL Max/Master (Acceptance)			0.25 dB	IEC 61300-3-4
Ave/Master			0.18 dB	IEC 61300-3-4
Ave/Random			0.18 dB	IEC 61300-3-34
Return Loss UPC/APC			55/65 dB	IEC 61300-3-6

Fibre Specification:
Characteristics
Attenuation (dB) / km			0.38 @ 1310nm / 0.25 @ 1550nm
Chromatic Dispersion (ps/nm x km)			3.00 @ 1310nm / 18.0 @ 1550nm

Cable Specification:
Characteristics			Simplex	Duplex
Cable Material			LSZH	LSZH
Strength Member			Aramid	Aramid
Crush (N)			1000	1000
Operating Temperature (˚C)			-20 to 60	-20 to 60
Fire Specification			IEC 60332-1

Part Number Generator:
SC SC UPC SX OS1 1 1 YE 0 ① ② ③ ④ ⑤ ⑥⑦ ⑧ ⑨
Connector End A	Connector End B	Polish Type	Cable Type	Mode	Cable Diameter	Jacket Type	Jacket Color	Length
SC LC ST FC D4 E2000 MU	SC LC ST FC D4 E2000 MU	UPC APC	SX=Simplex DX=Duplex A=Armoured W=Water-proff B=Break-out R=Rbbon B=Bundle	OS1 OS2 OM1 OM2 OM3 OM4 OM5	1=0.9mm 2=2.0mm 3=3.0mm	1=PVC 2=LSZH 3=OFNP 4=OFNR 5=PE 6=TPU	YE=Yellow BL=Blue GN=Green OR=Orange GY=Grey PU=Purple AQ=Aqua	0=0.5m 1=1m 2=2m 3=3m ····


①	②	③	④	⑤	⑥	⑦	⑧	⑨

	SC UPC to SC UPC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2121D112-2(7242113)SM(OS2)G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC 2121D412-2(7242114)OM2 G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC UPC to SC UPC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2121S112-2(7242115)SM(OS2)G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC UPC to SC UPC Simplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC 2121S412-2(7242116)OM1 G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2222D112-2(7242117)SM(OS2)G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord
	SC APC to SC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC 2222S112-2(7242118)SM(OS2)G.652.D/G.657.A1/G.657.A2	SC to SC Type, Copper Cabling, Fiber Optic Patch Cord

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	SC to SC duplex

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T, L/C
Supply Ability:	30,000 PCS / Month

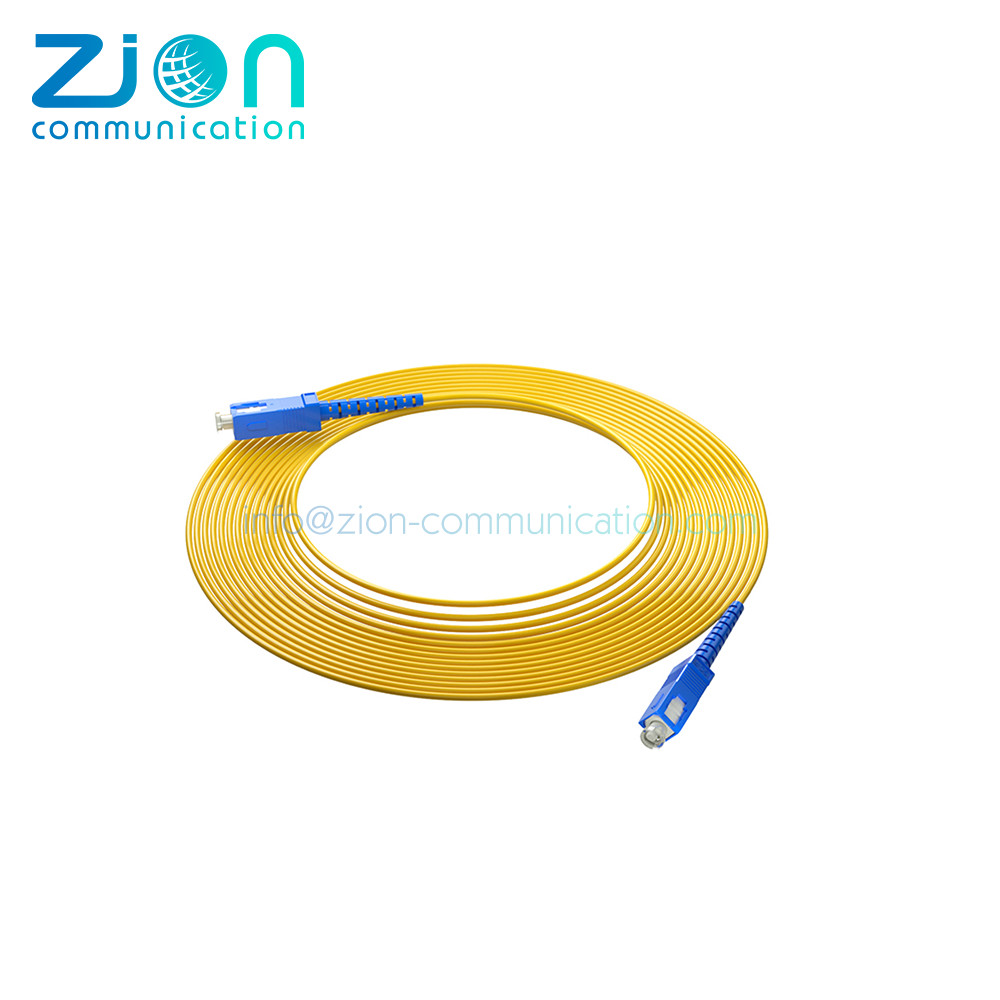

SC To SC OS1/OS2 9/125μM Fiber Patch Cord LSZH Simplex 1M 2M 3M
