Simplex LC to LC LSZH Jacket OM3 50/125μm Fiber Optic Patch Cord for High-Speed Networks

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC to LC Simplex

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	OM3 50/125	Tight Buffer Fiber:	900μm Tight Buffer
Connector:	SC, LC, ST, FC Connectors	Assemblies:	Simplex And Duplex
Jacket:	LSZH	Color:	Aqua Colour Or Purple
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	OM3 Fiber Jumper Cables , LSZH Fiber Optic Patch Cable , Simplex Fiber Jumper

Product Description

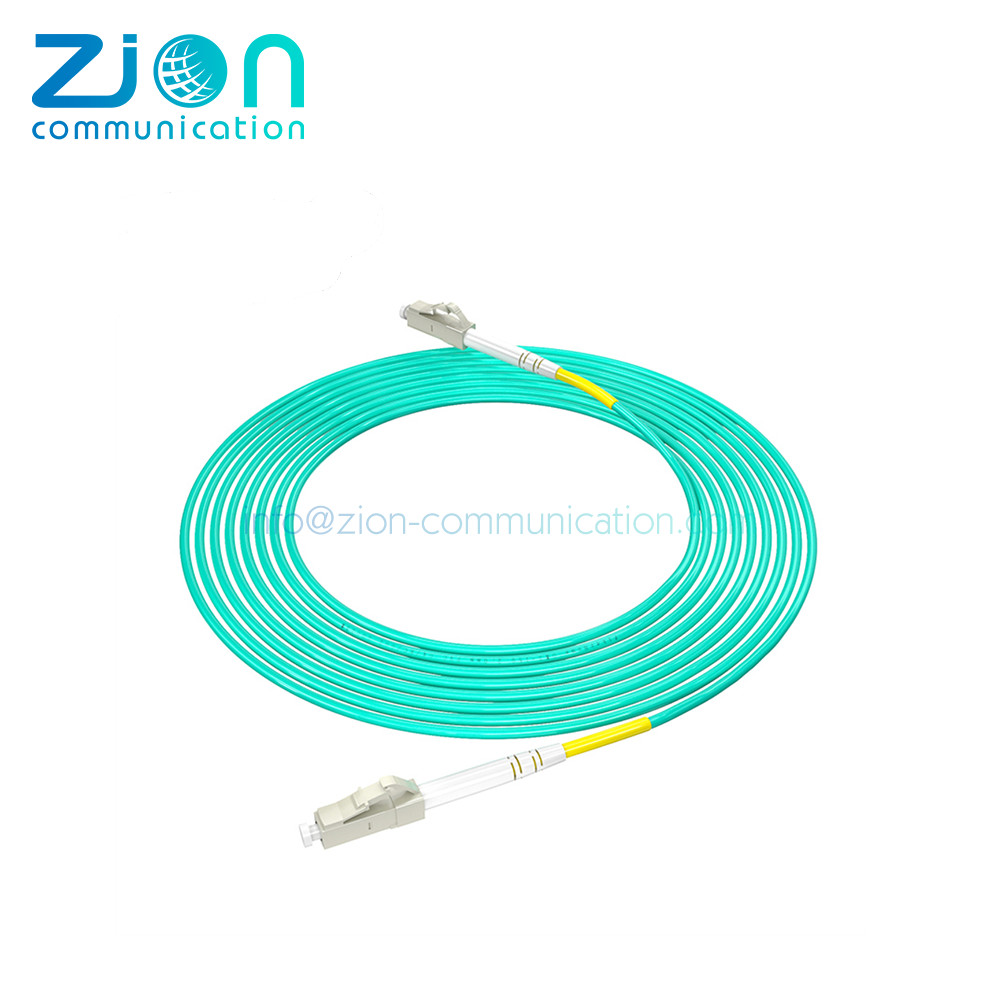

Simplex LC To LC LSZH Jacket Fiber Jumper Cables OM3 50/125μM

High-performance fiber optic patch cords designed for reliable data transmission in demanding environments. Available in SC, LC, FC, ST connectors with APC/UPC polish types and various cable diameters.

50/125 (OM3) Optical Fibre Patch Cords

Key Features

SC, LC, ST, FC connectors available
Low smoke zero halogen (LSZH) cable in aqua or purple colors
900μm tight buffer construction
OM3 fibre conforms to ITU-T G.651.1, TIA/EIA 492AAAB, IEC60793-2-10
Simplex and duplex assemblies
Duplex assemblies available with clips (SC and LC)
Armoured option available for enhanced protection

Applications

10 Gb/s high speed LAN networks with 300m link length at 850nm wavelength
10 Gb/s high speed LAN networks with 1000m link length at 850nm wavelength
High speed and legacy networks including Gigabit Ethernet, Fast Ethernet and Ethernet
Data centers and premises cabling in data networks
Backbone, riser and horizontal cabling systems
Supports video, data and voice services

Connector Specifications

Optical Performance	Singlemode	Conformance
IL Max/Master (Acceptance)	0.25 dB	IEC 61300-3-4
Ave/Master	0.15 dB	IEC 61300-3-4

Fibre Specifications

Characteristics	Specifications
Attenuation (dB/km)	2.80 @ 850nm / 0.80 @ 1300nm
Bandwidth OFL (MHz x km)	500 @ 850nm / 500 @ 1300nm

Cable Specifications

Characteristics	Simplex	Duplex
Cable Material	LSZH	LSZH
Strength Member	Aramid	Aramid
Crush (N)	1000	1000
Operating Temperature (°C)	-20 to 60	-20 to 60
Fire Specification	IEC 60332-1

Part Number Generator

LC LC UPC SX OS1 1 1 YE 0

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Connector End A	Connector End B	Polish Type	Cable Type	Mode	Cable Diameter	Jacket Type	Jacket Color	Length
SC, LC, ST, FC, D4, E2000, MU	SC, LC, ST, FC, D4, E2000, MU	UPC, APC	SX=Simplex, DX=Duplex, A=Armoured, W=Water-proof, B=Break-out, R=Ribbon, B=Bundle	OS1, OS2, OM1, OM2, OM3, OM4, OM5	1=0.9mm, 2=2.0mm, 3=3.0mm	1=PVC, 2=LSZH, 3=OFNP, 4=OFNR, 5=PE, 6=TPU	YE=Yellow, BL=Blue, GN=Green, OR=Orange, GY=Grey, PU=Purple, AQ=Aqua	0=0.5m, 1=1m, 2=2m, 3=3m
