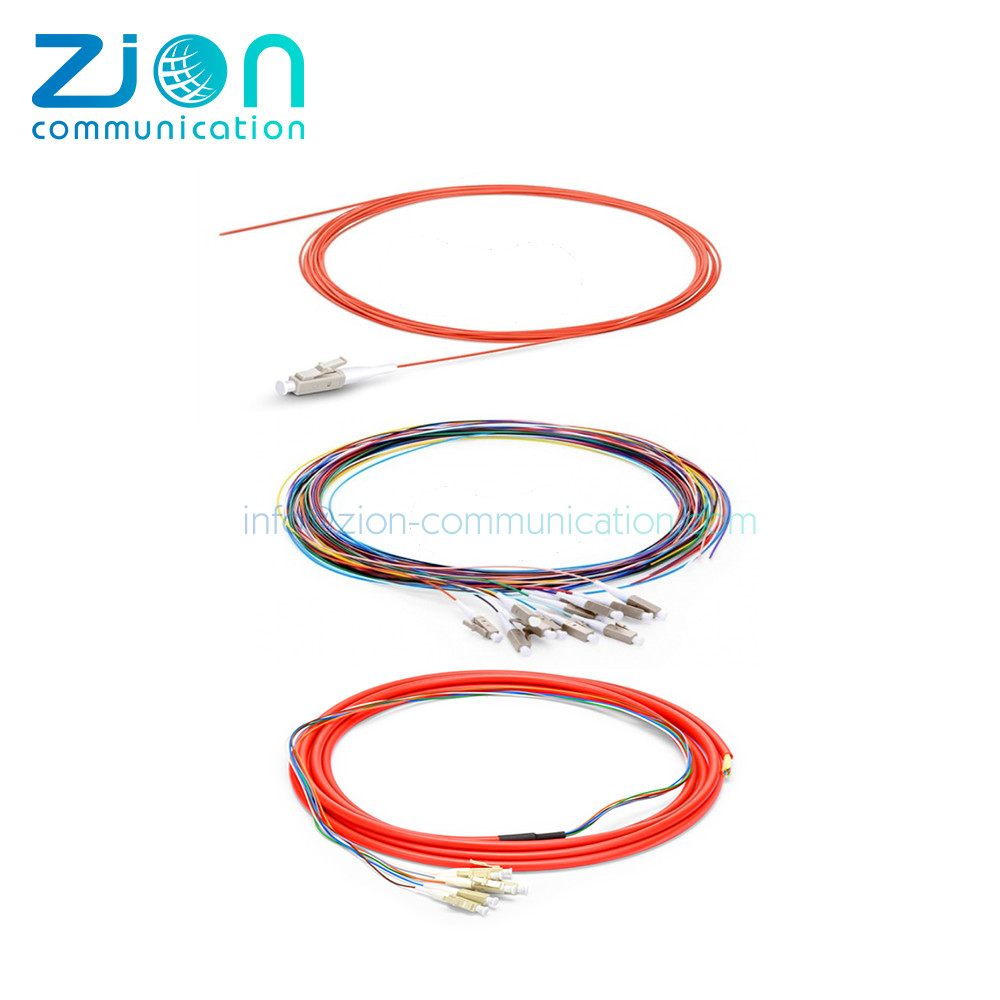

50/125 (OM2) Optical Fibre Pigtails

Features

SC, LC, ST, FC and E2000 connectors
Low smoke zero halogen (LSZH) buffer
900μm tight buffer or easy strip
OM2 pigtail available in standard white colour
Multimode fibre conforms to TIA/EIA 492AAAA
Different connector performance range for specific applications
Available in standard 12 colours as per IEC 60304

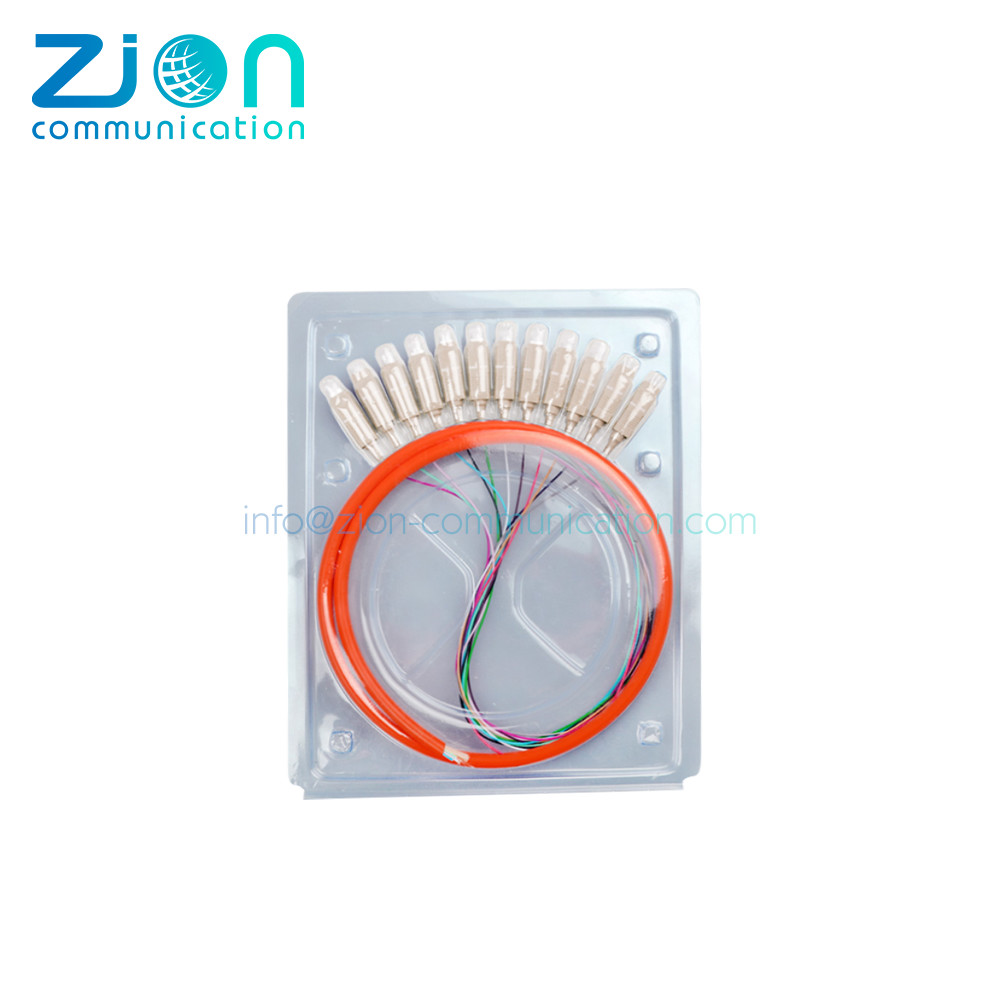

Available in standard and blister packing

Applications

Networks including Ethernet, Fast Ethernet and GBE
Internal inter-connect
Ideal for telecom, datacom and process control applications requiring ruggedisation
Suitable for repeated handling in patch panels and racks

Connector Specifications

Optical Performance	Singlemode	Conformance
IL Max/Master (Acceptance)	0.25 dB	IEC 61300-3-4
Ave/Master	0.15 dB	IEC 61300-3-4
Ave/Random	0.20 dB	IEC 61300-3-34

Fibre Specifications

Characteristics	Values
Attenuation (dB/km)	2.80 @ 850nm / 0.80 @ 1300nm
Bandwidth OFL (MHz x km)	3500 @ 850nm / 500 @ 1310nm

Cable Specifications

Characteristics	Units	Simplex
Max Tensile Load	N	6
Nominal buffer Diameter	μm	900+50
Crush	N/100mm	500
Operating Temperature	˚C	-20 to 60

Part Number Generator

SC APC SX OS2 1 YE 1

① Connector	② Polish Type	③ Cable Type	④ Mode	⑤ Jacket Type	⑥ Jacket Color	⑦ Length
SC, LC, ST, FC, D4, E2000, MU	UPC, APC	SX=Simplex, DX=Duplex	OS1, OS2, OM1, OM2, OM3, OM4, OM5	0=Unjacketed, 1=PVC, 2=LSZH, 3=OFNP, 4=OFNR, 5=PE, 6=TPU	YE=Yellow, BL=Blue, GN=Green, OR=Orange, GY=Grey, PU=Purple, AQ=Aqua	0=0.5m, 1=1m, 2=2m, 3=3m

Optical Components

ADSS Cable Products

All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath, Gel-filled, Self-supporting, Aramid Yarn| KEVLAR

FTTH Drop Cable

FTTH (fiber to the home) networks installed in indoor and outdoor sections

Fiber Optic Splice Closure

24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

Fiber Optic Terminal Box

Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Fiber Optic Patch Panel

FTTX project, Data processing centers/Cable television (CATV), Other applications in Fiber optical systems

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

MTP/MPO

MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters

Fiber Optic Splitter

1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER

WDM

Low insertion loss, wide pass band, high channel isolation, high stability and reliability

Fiber Optic Adapter

SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

Fiber Optic Attenuator

1310-1550nm 2/3/5/7/10 dB SC LC FC ST/APC UPC Low Insertion Loss High Return Loss OPTIC ATTENUATOR

Fiber Optic Connector

SC LC FC ST/APC UPC SX/DX 0.9/2.0/3.0mm Pre-polished Ferrule/FAST Field Assembly OPTIC PATCH CONNECTOR

Cabling Infrastructure

Copper Patch Cord

24/26AWG CAT5E/CAT6/CAT6A/CAT7/CAT8 UTP/FTP/SFTP CCA/BC PVC/LSZH RJ45 FU to 50U Copper Patch Cord

Bulk Ethernet Cables

Bulk CAT 5e cables, CAT 6 cables, CAT 6a cables, CAT7 cables, Cat 8 cables, etc.

Server/Network Rack Cabinet

VE/603/IDC/601S/PE/TE series SPCC Cold Rolled Steel High Loading Capacity Server/Network Rack Cabinet

Wall Mount Rack Cabinet

SE/EW/SA/SB/SQ/VA series SPCC Cold Rolled Steel High Excellent Compression Wall Mount Rack Cabinet

Copper Patch Panel

CAT5E/CAT6/CAT6A 0.5/1/2U 8/12/24/25/48/50/72 ports UTP/FTP blank patch panel matching 19"/10" cabinets

Modular Plug

Modular Plug (RJ45, RJ11, GG45, TERA)

Face Plates

CAT5E/CAT6/CAT6A 0.5/1/2U 8/12/24/25/48/50/72 ports UTP/FTP blank patch panel matching 19″/10″ cabinets

Keystone Jacks

Fit into standard keystone wall plates or patch panels for flexible installation in networking environments

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	ST to ST Duplex Multimode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Fiber Unit:	OM2 , 50/125	Tight Buffer Fiber:	900μm Tight Buffer Or Easy Strip
Connector:	SC, LC, ST, FC And E2000	Jacket:	PVC Or LSZH
Color:	12 Colours As Per IEC 60304	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	LSZH Pigtail Fiber Optic , OM2 Pigtail Fiber Optic , Simplex Fiber Optic Pigtail

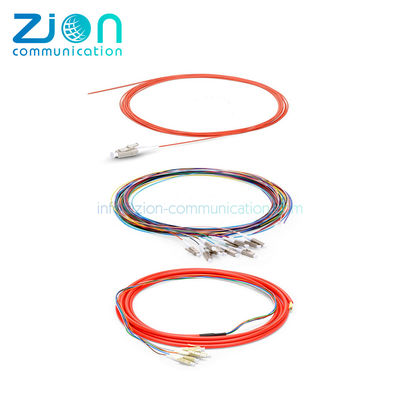

LSZH Jacket OM2 50/125 Fiber Optic Pigtail with 900μm Tight Buffer for Telecom and Datacom Applications
