OM3 50/125 Multimode Simplex Pigtail Patch Cord For Connectors

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: ST to ST Duplex Multimode
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T, L/C
Supply Ability: 30,000 PCS / Month
Detail Information
Fiber Unit: OM3 , 50/125 Tight Buffer Fiber: 900μm Tight Buffer Or Easy Strip
Connector: SC, LC, ST, FC And E2000 Jacket: PVC Or LSZH
Color: Purple Or Aqua Package: 1 PC/Plastic Bag, PCS/Carton
High Light:

OM3 Pigtail Patch Cord

,

Multimode Pigtail Patch Cord

,

Simplex Pigtail Patch Cord


Product Description



SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.





FIBER OPTIC PATCH CORD

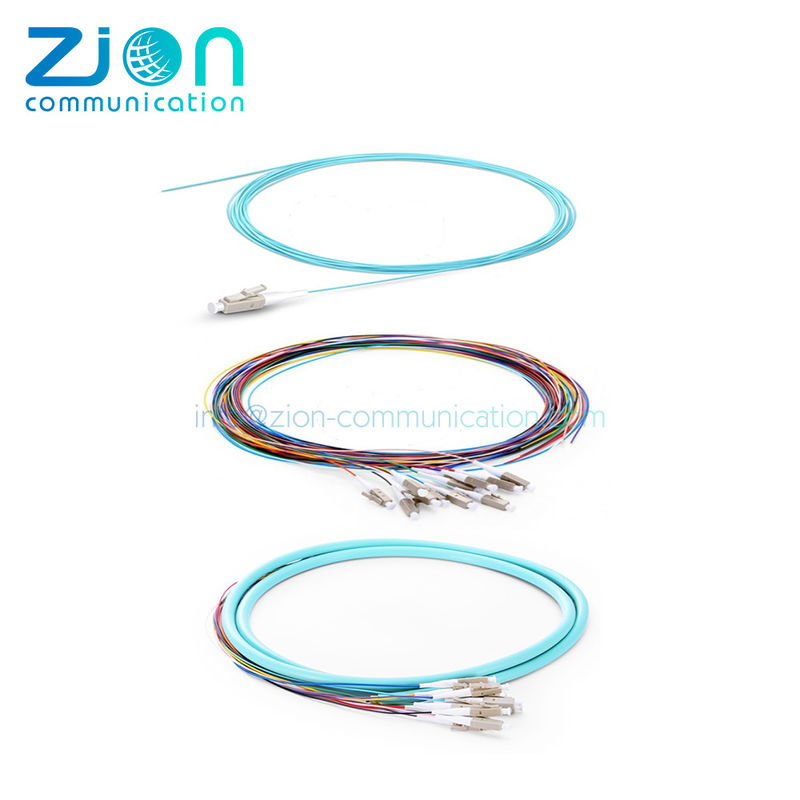

50/125 (OM3) Optical Fibre Pigtails

Features:

SC, LC, ST, FC and E2000 connectors
Low smoke zero halogen (LSZH) buffer
900μm tight buffer or easy strip
OM3 pigtail is available in standard
purple or aqua colour
Multimode fibre conforms to TIA/EIA 492AAAA
Different connector performance range for specific application
Available in standard 12 colours as per IEC 60304

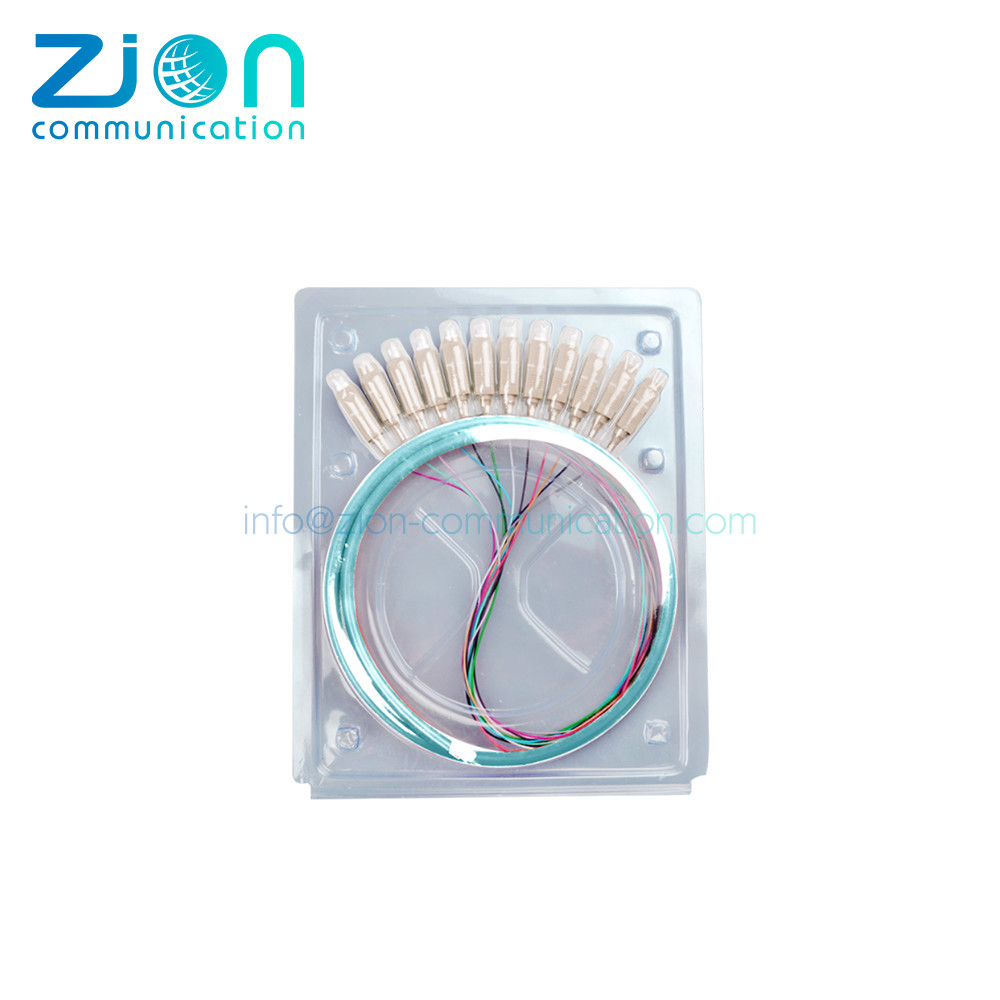

Available in standard and blister packing





Application:

Networks including Ethernet, Fast Ethernet and GBE
Internal inter-connect
Ideal for a wide range of telecom, datacom and process control applications where ruggedisation is required
Suitable for repeated handling in patch panels and racks




Connector Specification:





    50-125 (OM3) Optical Fibre Pigtails

        50-125 (OM3) Optical Fibre Pigtails 2



Optical Performance Singlemode Conformance
IL Max/Master (Acceptance) 0.25 dB IEC 61300-3-4
Ave/Master 0.15 dB IEC 61300-3-4
Ave/Random 0.20 dB IEC 61300-3-34

Fibre Specification:
Characteristics
Attenuation (dB) / km           2.80 @ 850nm / 0.80 @ 1300nm
Bandwidth OFL (MHz x km) 3500             1500@ 850nm / 500 @ 1310nm

Bandwidth LEMB (MHz x km) 4700           2000@ 850nm




Cable Specification:
Characteristics Units Simplex
Max Tensile Load N 6
Nominal buffer Diamete μm 900+50
Crush (N) N/100mm 500
Operating Temperature (˚C)   -20 to 60

Part Number Generator:

SC APC SX OS2 1 YE 1



Connector Polish
Type
Cable
Type
Mode Jacket
Type
Jacket
Color
Length
SC
LC
ST
FC
D4
E2000
MU
UPC


APC
SX=Simplex


DX=Duplex
OS1
OS2
OM1
OM2
OM3
OM4
OM5
0=Unjacketed
1=PVC
2=LSZH
3=OFNP
4=OFNR
5=PE
6=TPU
YE=Yellow
BL=Blue
GN=Green
OR=Orange
GY=Grey
PU=Purple
AQ=Aqua
0=0.5m
1=1m
2=2m
3=3m
····
