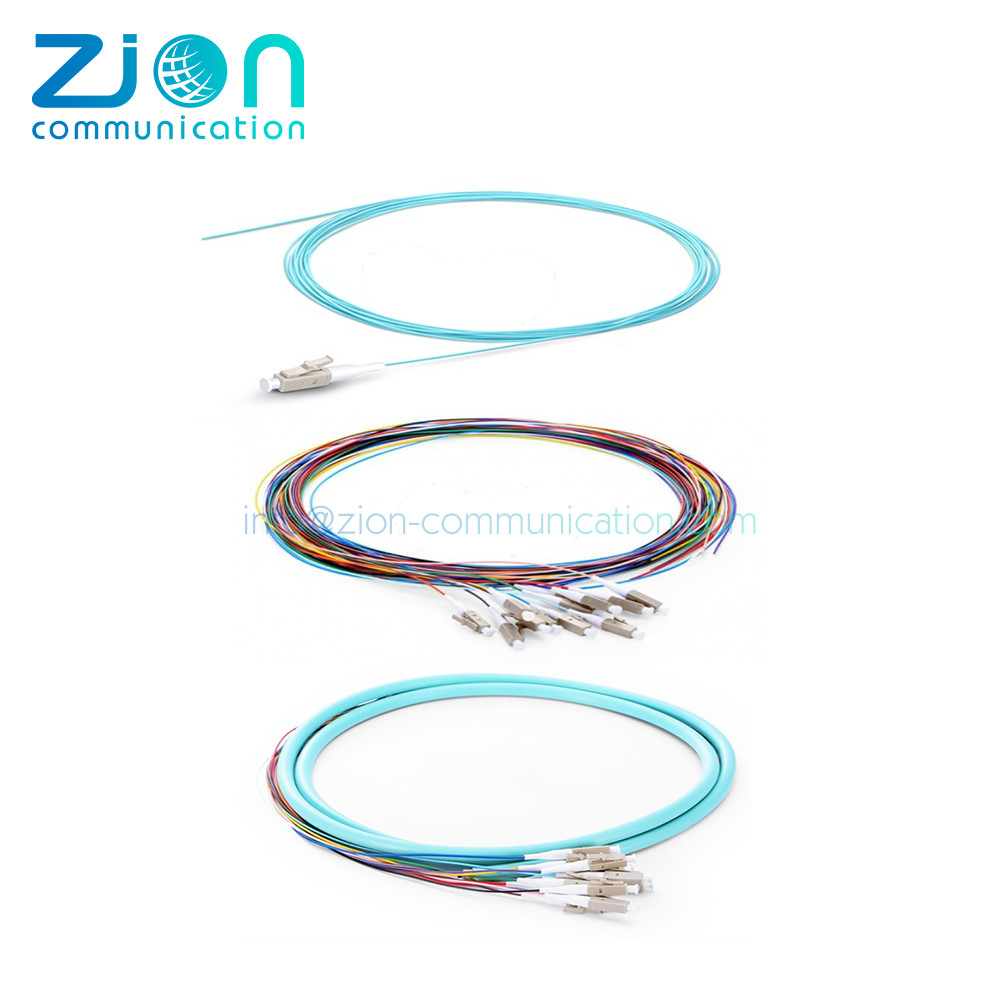

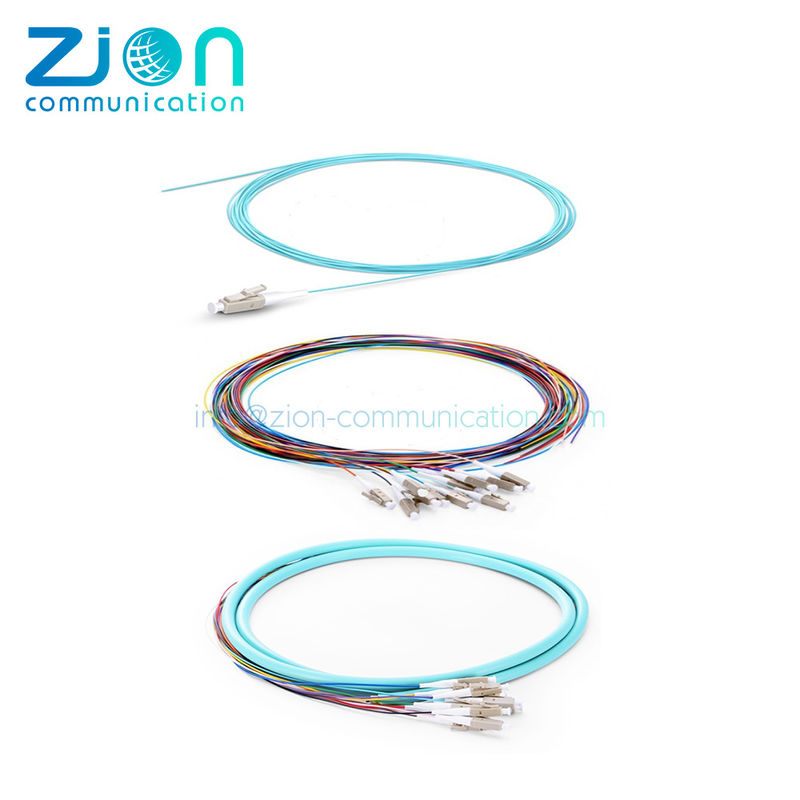

Aqua Multimode Fiber Optic Pigtail Connector OM4 50/125 with 900μm Tight Buffer for High-Speed Networks

Aqua Multimode Fiber Optic Pigtail Connector OM4 50/125 with 900μm Tight Buffer for High-Speed Networks
Aqua Multimode Fiber Optic Pigtail Connector OM4 50/125 with 900μm Tight Buffer for High-Speed Networks
Aqua Multimode Fiber Optic Pigtail Connector OM4 50/125 with 900μm Tight Buffer for High-Speed Networks Aqua Multimode Fiber Optic Pigtail Connector OM4 50/125 with 900μm Tight Buffer for High-Speed Networks Aqua Multimode Fiber Optic Pigtail Connector OM4 50/125 with 900μm Tight Buffer for High-Speed Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: ST to ST Duplex Multimode
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T,L/C
Supply Ability: 30,000 PCS / Month
Get Best Price Contact Now
Detail Information
Fiber Unit: OM4 , 50/125 Tight Buffer Fiber: 900μm Tight Buffer Or Easy Strip
Connector: SC, LC, ST, FC And E2000 Jacket: PVC Or LSZH
Color: Aqua Package: 1 PC/Plastic Bag, PCS/Carton
Highlight:

OM4 Fiber Optic Pigtail Connector

,

Aqua Fiber Optic Pigtail Connector

,

Multimode Pigtail Fiber Cable

Product Description

Aqua Multimode Fiber Optic Pigtail Connector OM4 50/125
High-performance fiber optic patch cords and pigtails available in SC, LC, FC, ST connectors with APC/UPC polish options. Available in 0.9mm, 2.0mm, and 3.0mm diameters for both single mode and multimode applications with PVC or LSZH jacket options.
Aqua Multimode Fiber Optic Pigtail Connector OM4 50/125 with 900μm Tight Buffer for High-Speed Networks 0
50/125 (OM4) Optical Fibre Pigtails
Features
  • SC, LC, ST, FC and E2000 connectors
  • Low smoke zero halogen (LSZH) buffer
  • 900μm tight buffer or easy strip
  • OM4 pigtail available in standard aqua colour
  • Multimode fibre conforms to TIA/EIA 492AAAA
  • Different connector performance range for specific applications
  • Available in standard 12 colours as per IEC 60304

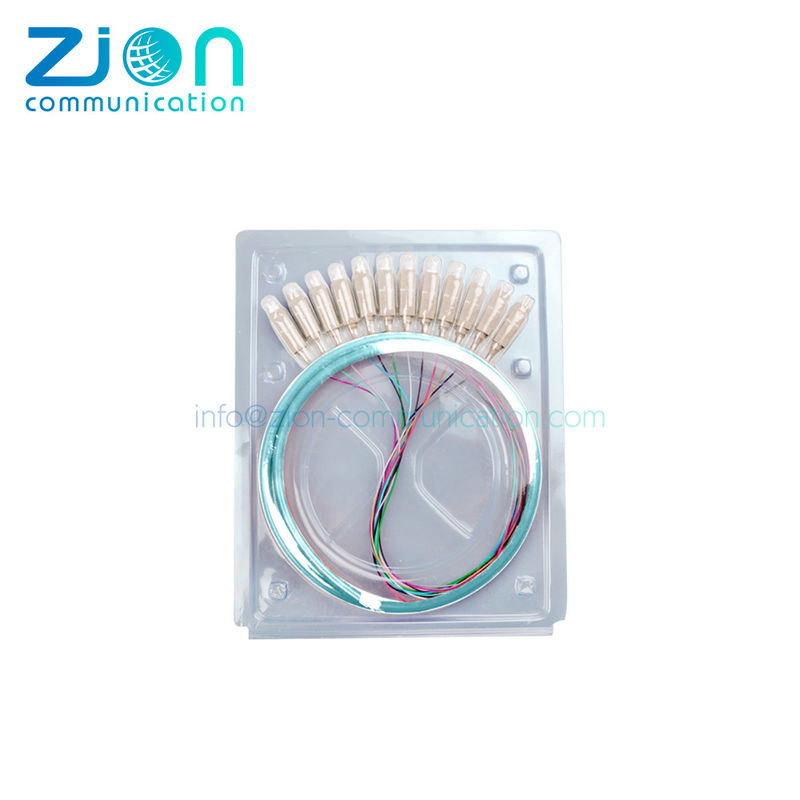

  • Available in standard and blister packing
Applications
  • Networks including Ethernet, Fast Ethernet and GBE
  • Internal inter-connect
  • Ideal for telecom, datacom and process control applications
  • Suitable for repeated handling in patch panels and racks
Connector Specifications
Optical Performance Singlemode Conformance
IL Max/Master (Acceptance) 0.25 dB IEC 61300-3-4
Ave/Master 0.15 dB IEC 61300-3-4
Ave/Random 0.20 dB IEC 61300-3-34
Fibre Specifications
Characteristics Values
Attenuation (dB/km) 2.80 @ 850nm / 0.80 @ 1300nm
Bandwidth OFL (MHz x km) 3500 @ 850nm / 500 @ 1310nm
Bandwidth LEMB (MHz x km) 4700 @ 850nm
Cable Specifications
Characteristics Units Simplex
Max Tensile Load N 6
Nominal buffer Diameter μm 900+50
Crush N/100mm 500
Operating Temperature °C -20 to 60
