Detail Information

Conductor:	Finely Stranded Bare Copper	Insulation:	PVC
Shielding:	Gray PVC Inner Jacket; Galvanized Steel Braid (75% Coverage)	Jacket:	PVC; Transparent
Color:	Black
Highlight:	power cable and control cable , control cable and power cable

Product Description

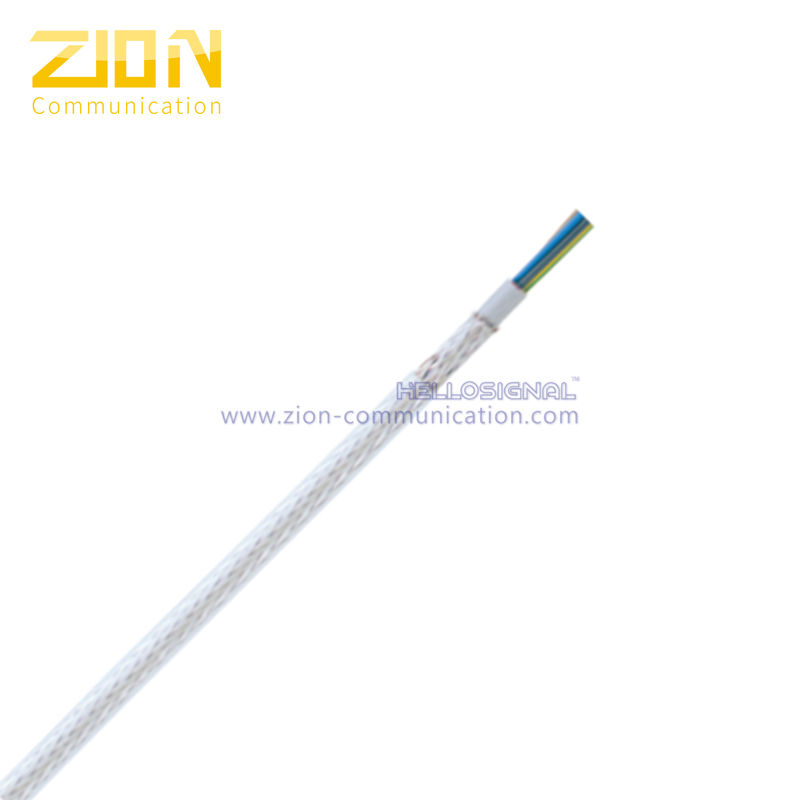

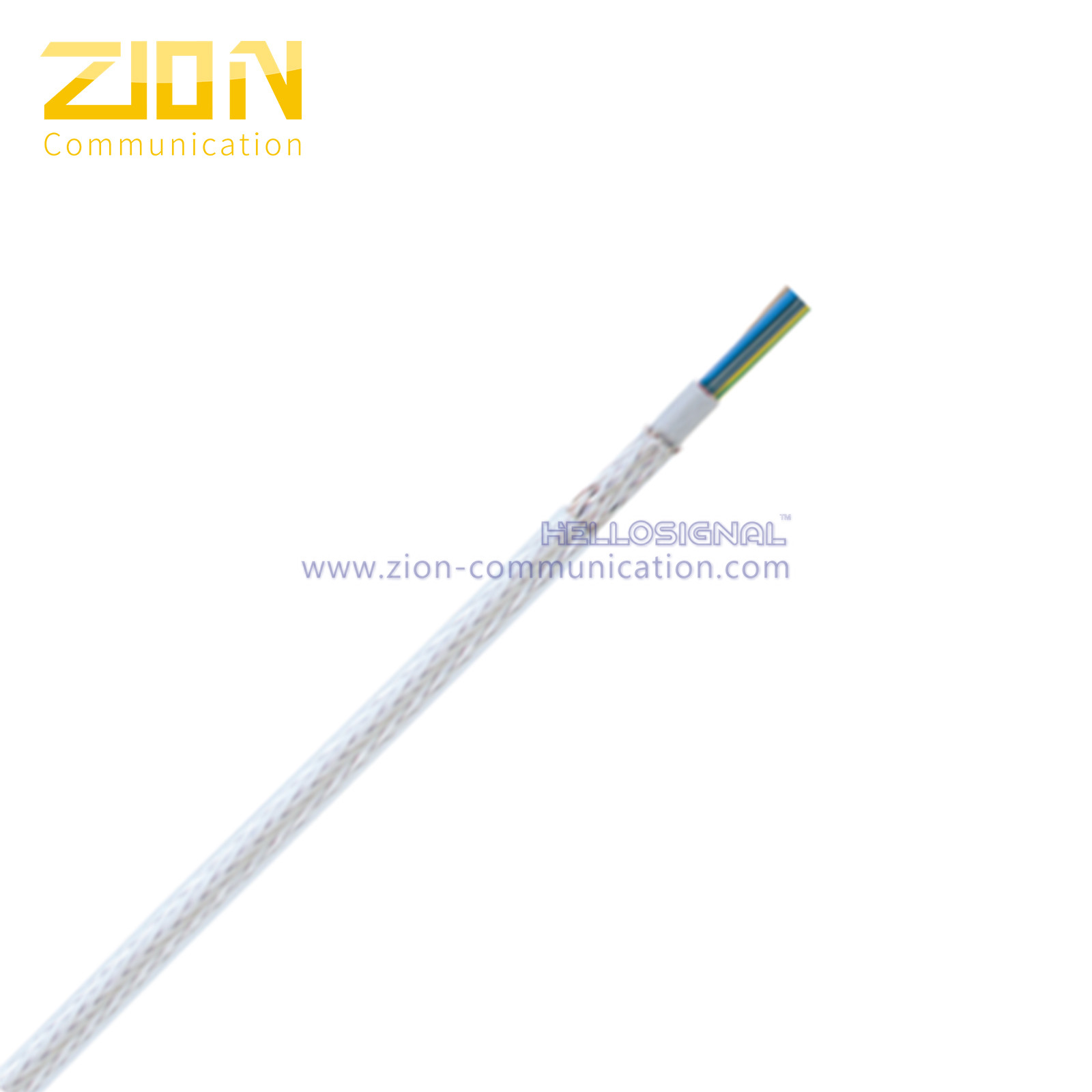

Classic 100 SY Color Coded Multi Conductor Copper Electrical Cable

Product Overview

HELLOSIGNAL CLASSIC 100 SY is a color-coded multi-conductor power and control cable with galvanized steel braided shielding for mechanical and low frequency protection. Designed for use in all electrical equipment in dry, damp, or wet conditions, this European-style cable conforms to CE standards.

View Power & Control Cable Catalog

Applications

For use in control systems, assembly lines, control panels, data processing equipment, and European machinery.

Construction

Conductors: Finely stranded bare copper
Insulation: PVC
Shielding: Gray PVC inner jacket with galvanized steel braid (75% coverage)
Jacket: Transparent PVC

Application Advantages

Available with inner jacket and steel braid for mechanical protection
Steel braid provides protection from low-frequency noise
Pressure-extruded jacket for improved flexibility

Technical Specifications

Minimum Bend Radius: 6 x cable diameter (installation)

Temperature Range: -5°C to +70°C (flexible use), -40°C to +80°C (stationary use)

Nominal Voltage: ≤ 16 AWG: 300/500V, ≥ 14 AWG: 450/750V

Test Voltage: 4000V

Conductor Stranding: Class 5 fine wire

Color Code: VDE 0293-308: Chart 6, page 673

Approvals: Based on VDE specifications, CE & RoHS compliant

100 SY Product List

Item No.	Number of Conductors	Nominal Outer (in)	Copper Weight (lbs/mft)	Approx. Weight (lbs/mft)
18 AWG (1.00 mm²)
7142300	3	0.346	19	103
7142301	4	0.374	26	121
7142302	5	0.398	32	136
16 AWG (1.50 mm²)
7142305	3	0.382	29	128
7142306	4	0.402	39	146
7142307	5	0.437	48	180
14 AWG (2.50 mm²)
7142310	3	0.496	48	187
7142311	4	0.547	65	228
7142312	5	0.598	81	267
12 AWG (4.00 mm²)
7142315	2	0.535	52	221
7142316	4	0.618	103	307
7142317	5	0.673	129	366
10 AWG (6.00 mm²)
7142320	3	0.622	116	365
7142321	4	0.677	155	461
7142322	5	0.740	194	536
8 AWG (10 mm²)
7142325	4	0.838	258	677
7142326	5	0.917	323	803
6 AWG (16 mm²)
7142330	4	0.949	413	929
4 AWG (25 mm²)
7142331	4	1.157	645	1356
7142332	5	1.283	8.6	1654
2 AWG (35 mm²)
7142335	4	1.276	903	1725

Order Information

Marking: HELLOSIGNAL CLASSIC 100 SY XXXFT/M

Package: 100M/Reel, 300M/Wooden Spool

Delivery Time: Normally 25 days after receiving deposit

Tag:

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	CE, RoHS, VDE, UL
Model Number:	Flexible Control Cable

Minimum Order Quantity:	10 KM
Packaging Details:	100M/Reel, 300M/Wooden Spool
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month
