Industrial Control Cable with Stranded Bare Copper Wire and SR-PVC Insulation for Oil Resistance in Sensor & Actuator Applications

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE, RoHS, VDE, UL
Model Number: Sensor Cable
Minimum Order Quantity: 10 KM
Packaging Details: 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
Delivery Time: 25 working days
Payment Terms: T/T,L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Stranded Bare Copper Wire Insulation: SR-PVC
Shield: BC Braid Jacket: See Attached List
Color: Gray
Highlight:

power control cable

,

control cable and power cable


Product Description

PVC Sensor & Actuator Power And Control Cables
SR PVC assists sensor to monitor processing data for industrial automation applications
Industrial Ethernet Cable Solutions
View Industrial Ethernet Cable Products
PVC Sensor & Actuator Cable

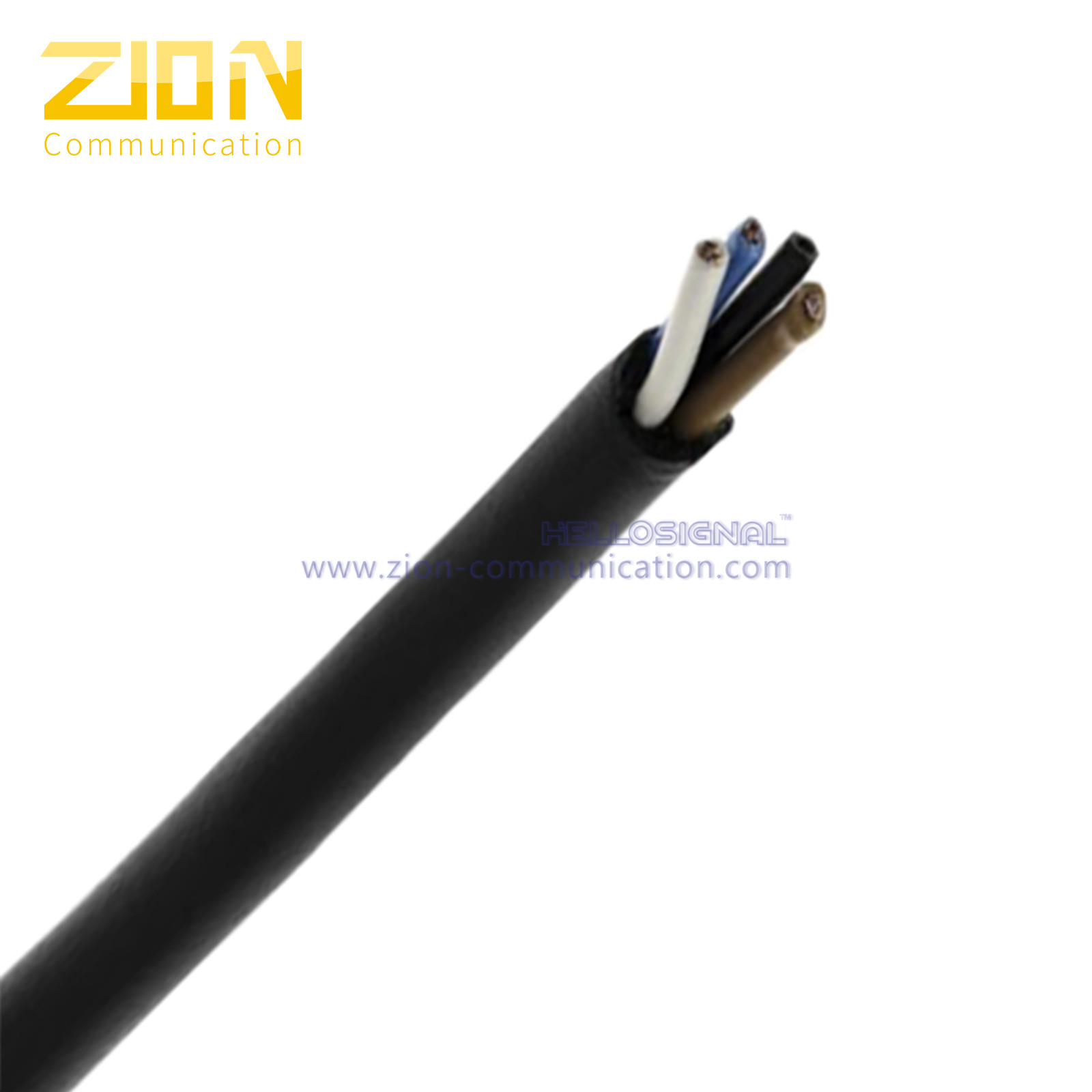

Industrial Control Cable with Stranded Bare Copper Wire and SR-PVC Insulation for Oil Resistance in Sensor & Actuator Applications 0
Application
Designed for industrial sensor applications to monitor processing data. These cables are essential for automated testing and control systems, widely used in industrial production, environmental protection, and resource exploration. Suitable for fixed installation with slight movement requirements.
Cable Construction
  • Conductor: Stranded bare copper wire
  • Insulation: SR-PVC
  • Cabling: PET (optional)
  • Jacket: PVC
  • Color: Grey or other colors
Product Features
  • Oil resistance
  • Easy flexible bending
  • Fire resistance meets IEC60332-1
  • UV resistance

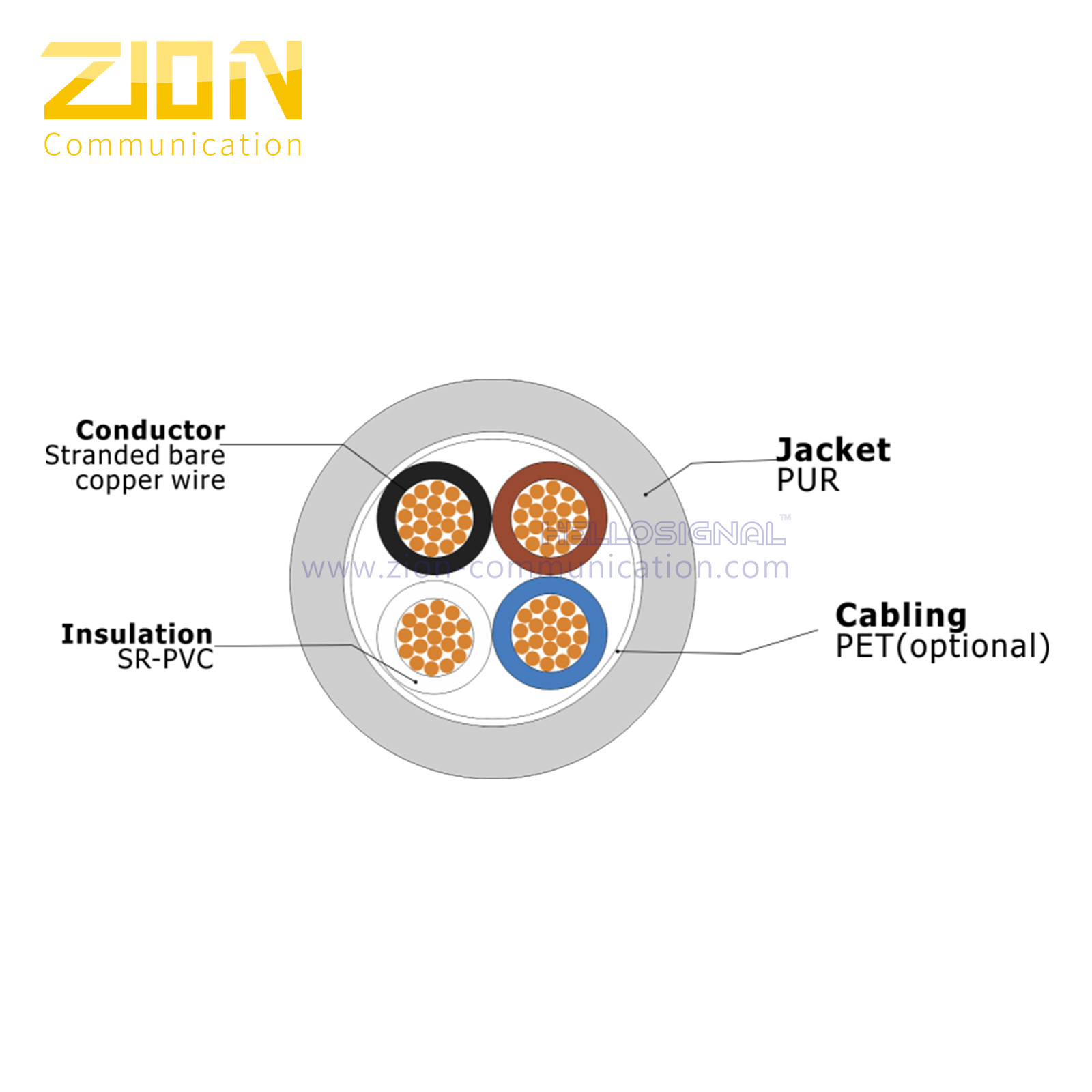

Cross Section
Industrial Control Cable with Stranded Bare Copper Wire and SR-PVC Insulation for Oil Resistance in Sensor & Actuator Applications 1
Technical Data
Temperature range: -40℃ to 80℃
Rated voltage: UL/CSA 300V
Bending radius: 10x cable diameter
Test voltage: 1500V 1min, no breakdown
Insulation resistance: 0.25mm²≤80 ohms/km, 0.34mm²≤60 ohms/km
Product List
Item No. Spec. Jacket Nominal OD(mm) Copper Weight (kg/km) Weight (kg/km)
7140000 3*0.25mm² PVC 4.4 7 25
7140001 4*0.25mm² PVC 4.4 9.5 27
7140002 3*0.34mm² PVC 5.2 10 34
7140003 4*0.34mm² PVC 5.2 13.5 37
7140004 5*0.34mm² PVC 5.2 17 42
Order Information
Marking: HELLOSIGNAL PVC Sensor & Actuator Cable XXXFT/M
Package: 100M/Reel, 300M/Wooden Spool
Delivery time: Normally 25 days after received the deposit
