Place of Origin: | Hangzhou, China |
---|---|
Brand Name: | hellosignal |
Certification: | UL, ETL, CE,CPR, RoHS |
Model Number: | CAT5E Outdoor Cable with Messenger |
Packaging Details: | pull box, wooden spool, carton, pallet |
Delivery Time: | Normally 25 working days |
Payment Terms: | T/T, L/C, D/P |
Supply Ability: | 30KM month |
Number Of Conductors: | 4 | Type: | CAT5/CAT5e/CAT6/CAT7 |
---|---|---|---|
Jacket: | PVC | Color: | Blue/Red/Black/Grey |
Conductor: | Bare Copper | Application: | Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer |
Highlight: | cat5e networking cable,outdoor camera cable |

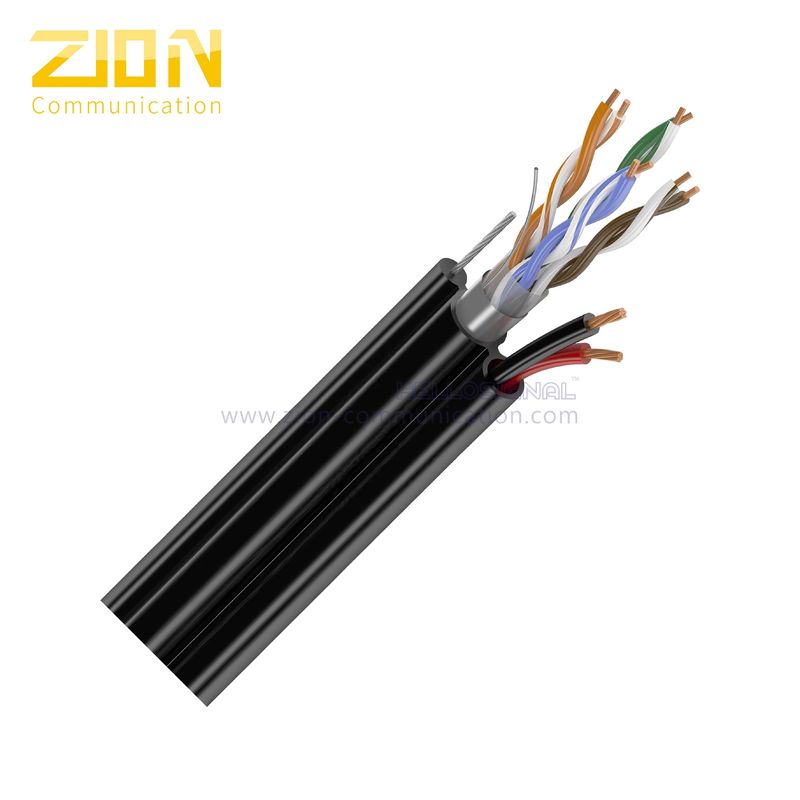

Video over FTP Outdoor Cable
Construction Parameters: | ||
Description | 4 Pair Cat5E Type + 2C-0.75 With Messenger Construction | |
Video and Control Pairs | ||
Inner Conductor | 0.0196"/0.50mm/24AWG Bare Copper | |
Stranding | Solid | |
Insulation Material | Polyethylene 0.008"/0.2mm | |
Number of Conductors | 8(4 Pair) | |
Drain wire | TCCS | |
Shield | Aluminum/PET Foil | |
Power Conductors | ||
Inner Conductor | Copper Clad Aluminum | |
Stranding | 31×0.25mm | |
Insulation Material | PVC 0.008"/0.25mm | |
Number of Conductors | 2 | |
Shield | None | |
Messenger | 1.2mm Zinned Steel | |
Electrical Characteristics: | ||
Video and Control Pairs | ||
Temperature Rating | -20℃ to 60℃ | |
Operating Voltage | 300 V RMS | |
Max.Capacitance @1 KHz | 45.9 pf/100m | |
Nom.Impedance | 100 Ohms | |
Nom.Velocity of Propagation | 66% | |
DC Resistance per Cond. @ 20℃ | 26 Ohms/1M' Nom | |
Power Conductors | ||
Temperature Rating | -20℃ to 60℃ | |
Operating Voltage | 300 V RMS | |
Max.Capacitance @1 KHz | NA | |
DC Resistance per Cond. @ 20℃ | ||
Insulation Colors | Black, Red | |
Overall Construction | ||
Jacket Type | UV-PE | |
Jacket Color | Siamese-Black | |
Nom.O.D. | 5.4mm × 5.0mm | |
Mechanical Properties | ||
Max.Recommended Pull Tension | 15 KGS | |
Min. Bend Radius(Install) | 86mm | |
Order Informations: | ||
Marking | HELLOSIGNAL Video Over UTP 4 Pair FTP Cat5E Type + 2C-0.75MM2 M | |
Inner Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | |
Delivery time | Normally 20-25 days after received the deposit. | |
Brand | HELLOSIGNAL® OR OEM |
Packing
