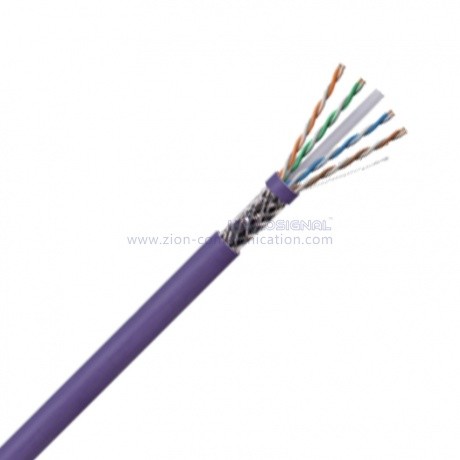

SF / UTP CAT6 Network Cable BC LSZH Long Network Cable 4 Number Of Conductors

Basic Information
Place of Origin: Hangzhou, China
Brand Name: hellosignal
Certification: UL, ETL, CE,CPR, RoHS
Model Number: SF/UTP Dual CAT6
Packaging Details: pull box, wooden spool, carton, pallet
Delivery Time: Normally 25 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 30KM month
Detail Information
Number Of Conductors: 4 Type: CAT5/CAT5e/CAT6/CAT7
Jacket: LSZH Color: Blue/Red/Black/Grey
Conductor: Bare Copper Application: Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
High Light:

cctv camera cable

,

outdoor camera cable


Product Description

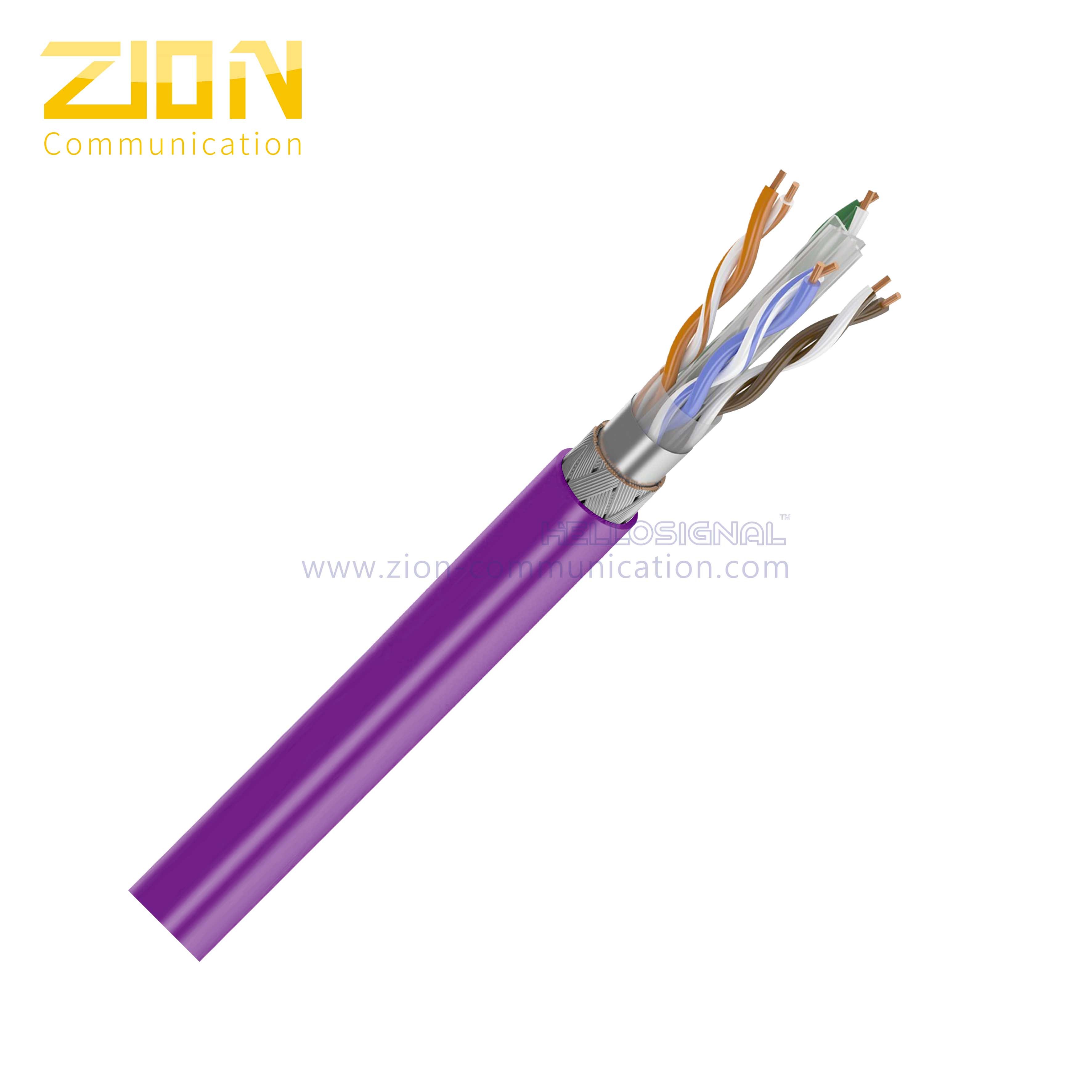

SF/UTP CAT6 Twisted Pair Installation Cable
LAN CABLE
NO. 7112226

Construction
Conductor: 23 AWG Solid Bare Copper
Pairs: 4 Pairs
Insulation: 1.02 mm HDPE
Insulation Colors: Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown
Filler: Cross Filler
Shield 1: PET
Drain Wire: 0.40±0.005mm TC
Shield 2: Al/PET Foil,Foil face out
Shield 3: Tinned Copper Braid
Rip Cord: Cotton
Out Jacket: 8.1±0.2 mm LSZH
Electrical Characteristics
Impedance 1 - 250MHz 100±15 Ohms
Insulation Resistance 5000MΩ*KM
Dielectric strength DC 2500V 2S
Max.Conductor DC
Resistance 20
8.4 Ohms/100m
Res. unbalance (%) Max. 2.5
Pair to Ground
Capacitance Unbalance
330 pF/100m
Transfer Impendance Max 10 mOhms/m @100Mhz
Installation temp. -30 - 50
Operation temp. -20 - 75

Cross Section
Application
• Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Class E Category 6 channel standards.
• Exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156·5 Category 6 component standards.
• Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
• Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
• Descending length cable markings enable easy identification of remaining cable
which reduces installation time and cable scrap.
• Color Availability: Additional cable colors available.

Performance Characteristics
Frequency RL (Min.) Insertion Loss(Max.) Propagation Delay (Max.) Delay Skew(Max.) NEXT (Min.) PSNEXT (Min.) ELNEXT (Min.) PSELNEXT (Min.)
MHz dB dB/100m ns/100m ns/100m dB dB dB/100m dB/100m
1 20.0 2.2 590.0 62.0 74.3 72.3 67.8 64.8
4 23.0 4.1 572.0 62.0 65.2 63.2 55.7 52.7
10 25.0 6.5 565.0 62.0 59.3 57.3 47.8 44.8
16 25.0 8.2 563.0 62.0 56.2 54.2 43.7 40.7
20 25.0 9.3 562.0 62.0 54.7 52.7 41.7 38.7
31.25 23.6 11.5 560.0 62.0 51.8 49.8 37.9 34.9
62.5 21.5 16.2 558.0 62.0 47.3 45.3 31.8 28.8
100 20.1 20.4 557.0 62.0 44.3 42.3 27.8 24.8
200 18.0 29.2 556.0 62.0 39.7 37.7 21.7 18.7
250 17.3 33.8 555.0 62.0 38.3 36.3 19.8 16.8
Note: The above transmission performance tor the 100M, 20±2 under the conditions tested.

Order Informations
Marking HELLOSIGNAL NO.7112226 SF/UTP CAT6 4PR 23AWG LSZH XXX
(or Per customer's request)
Inner Package 305m/Spool,305m/Reel (or Per customer's request)
Outer Package Color Box, Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
