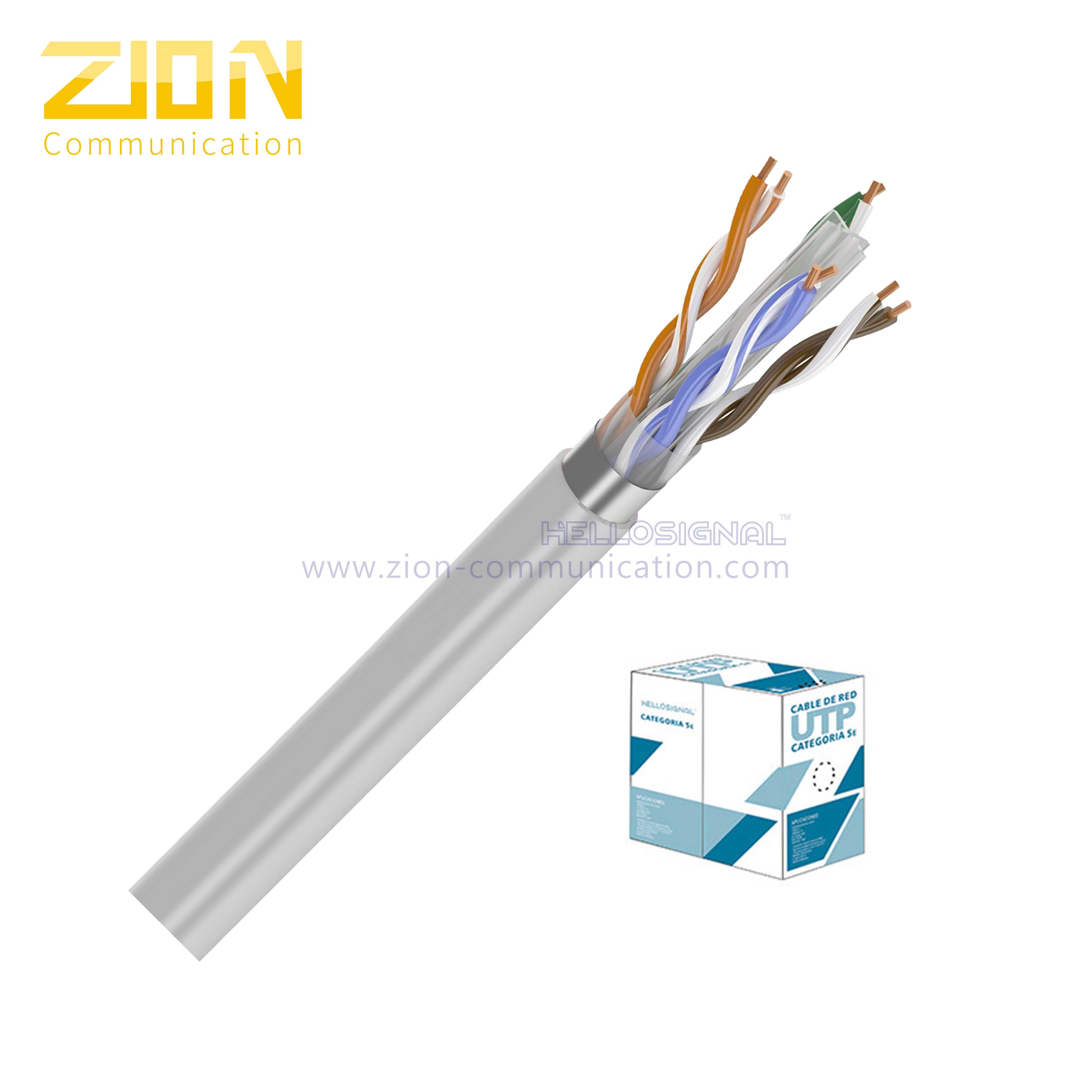

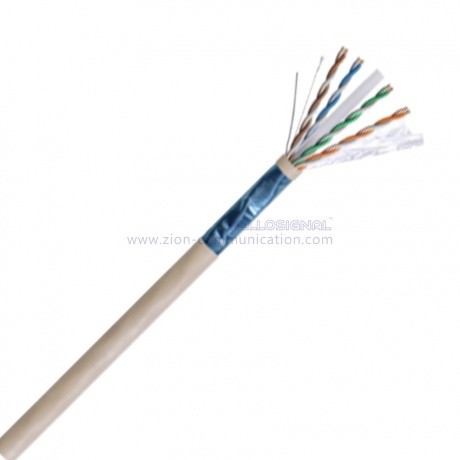

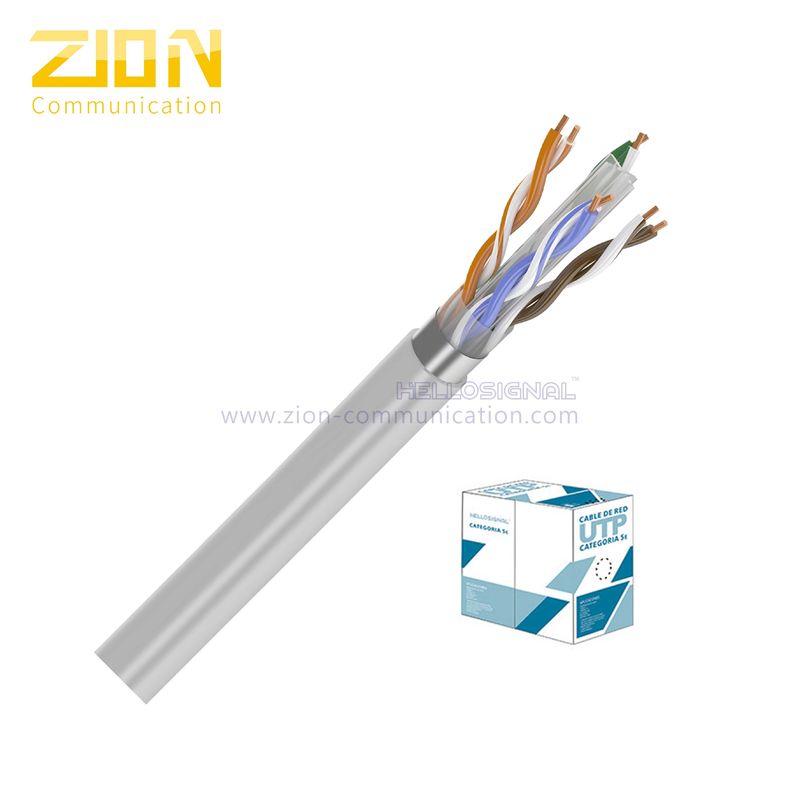

| F/UTP CAT6 Twisted Pair Installation Cable | ||||||||
| LAN CABLE | ||||||||
| NO. 7112213 | ||||||||
| Construction | ||||||||
| Conductor: | 23 AWG Solid Bare Copper | |||||||
| Pairs: | 4 Pairs | |||||||
| Insulation: | 1.02 mm HDPE | |||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | |||||||
| Green-White/Green,Brown-White/Brown | ||||||||
| Filler: | Cross Filler | |||||||
| Shield: | PET | |||||||
| Drain Wire: | 0.40±0.005mm TC | |||||||
| Overall Shield: | Al/PET Foil,Foil face out | |||||||
| Rip Cord: | Cotton | |||||||
| Out Jacket: | 7.6±0.2 mm PVC CM | |||||||
| Electrical Characteristics | ||||||||
| Impedance | 1 - 250MHz 100±15 Ohms | |||||||
| Insulation Resistance | ＞5000MΩ*KM | |||||||
| Dielectric strength | DC 2500V 2S | |||||||
| Max.Conductor DC Resistance 20℃ |
8.4 Ohms/100m | |||||||
| Res. unbalance (%) | Max. 2.5 | |||||||
| Pair to Ground Capacitance Unbalance |
330 pF/100m | |||||||
| Transfer Impendance | Max 10 mOhms/m @100Mhz | |||||||
| Installation temp. | -30 - 50℃ | |||||||
| Operation temp. | -20 - 75℃ | |||||||
| Cross Section | ||||||||
|
||||||||
| Application | ||||||||
| • Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Class E Category 6 channel standards. | ||||||||
| • Exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156·5 Category 6 component standards. | ||||||||
| • Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications. | ||||||||
| • Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels. | ||||||||
| • Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap. |
||||||||
| • Color Availability: Additional cable colors available. | ||||||||
| Performance Characteristics | ||||||||
| Frequency | RL (Min.) | Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 20.0 | 2.0 | 570.0 | 45.0 | 74.0 | 72.0 | 67.8 | 64.8 |
| 4 | 23.0 | 3.8 | 552.0 | 45.0 | 65.0 | 63.0 | 55.7 | 52.7 |
| 10 | 25.0 | 6.0 | 545.0 | 45.0 | 59.0 | 57.0 | 47.8 | 44.8 |
| 16 | 25.0 | 7.6 | 543.0 | 45.0 | 56.0 | 54.0 | 43.7 | 40.7 |
| 20 | 25.0 | 8.5 | 542.0 | 45.0 | 55.0 | 53.0 | 41.7 | 38.7 |
| 31.25 | 23.6 | 10.7 | 540.0 | 45.0 | 52.0 | 50.0 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.4 | 539.0 | 45.0 | 47.0 | 45.0 | 31.8 | 28.8 |
| 100 | 20.1 | 19.8 | 538.0 | 45.0 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 29.0 | 537.0 | 45.0 | 39.7 | 37.7 | 21.7 | 18.7 |
| 250 | 17.3 | 32.8 | 536.0 | 45.0 | 38.0 | 36.0 | 19.8 | 16.8 |
| Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||
| Order Informations | ||||||||
| Marking | HELLOSIGNAL NO.7112213 F/UTP CAT6 4PR 23AWG PVC CM XXX (or Per customer's request) |
|||||||

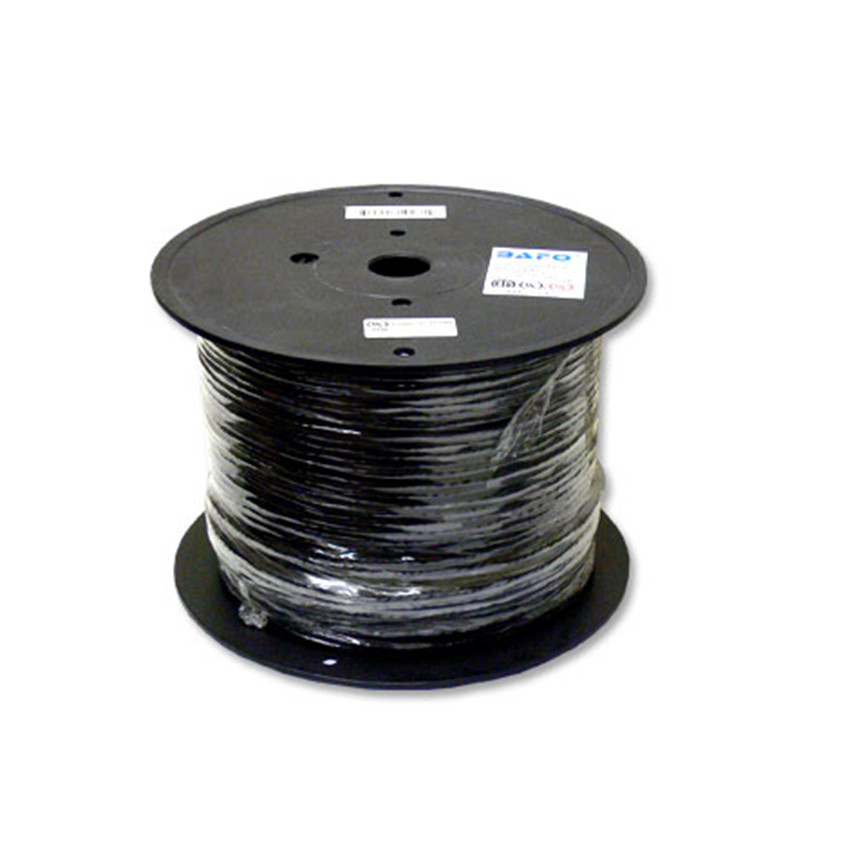

| Inner Package | 305m/Spool,305m/Reel (or Per customer's request) | |||||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
