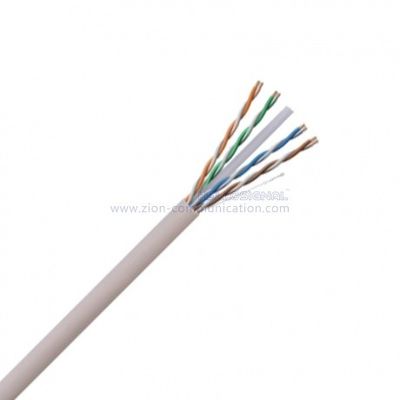

U / UTP CAT6 Network Cable , 4 Pairs CCA Conductor Cat6 Ethernet Cable

U / UTP CAT6 Network Cable , 4 Pairs CCA Conductor Cat6 Ethernet Cable
U / UTP CAT6 Network Cable , 4 Pairs CCA Conductor Cat6 Ethernet Cable
U / UTP CAT6 Network Cable , 4 Pairs CCA Conductor Cat6 Ethernet Cable U / UTP CAT6 Network Cable , 4 Pairs CCA Conductor Cat6 Ethernet Cable U / UTP CAT6 Network Cable , 4 Pairs CCA Conductor Cat6 Ethernet Cable U / UTP CAT6 Network Cable , 4 Pairs CCA Conductor Cat6 Ethernet Cable
Basic Information
Place of Origin: Hangzhou, China
Brand Name: hellosignal
Certification: UL, ETL, CE,CPR, RoHS
Model Number: U/UTP CAT6
Packaging Details: pull box, wooden spool, carton, pallet
Delivery Time: Normally 25 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 30KM month
Get Best Price Contact Now
Detail Information
Number Of Conductors: 4 Type: CAT5/CAT5e/CAT6/CAT7
Jacket: PVC Color: Blue/Red/Black/Grey
Conductor: Bare Copper Application: Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
Highlight:

cctv camera cable

,

outdoor camera cable

Product Description

U/UTP CAT6 4Pairs CCA Conductor

NO. 7112208

Construction
Conductor:23 AWG Solid CCA (Copper Clad Aluminum)
Pairs:4 Pairs
Insulation:1.02 mm HDPE
Insulation Colors:Blue-White/Blue,Orange-White/Orange
 Green-White/Green,Brown-White/Brown
Filler:Cross Filler
Rip Cord:Cotton
Out Jacket:6.4±0.2 mm PVC



Electrical Characteristics
Impedance1 - 250MHz 100±15 Ohms
Insulation Resistance＞5000MΩ*KM
Dielectric strengthDC 2500V 2S
Max.Conductor DC
Resistance 20℃		10.8 Ohms/100m

Res. unbalance (%)Max. 2.5
Pair to Ground
Capacitance Unbalance		330 pF/100m

Transfer ImpendanceMax 10 mOhms/m @100Mhz
Installation temp.-30 - 50℃
Operation temp.-20 - 75℃



Cross Section

U / UTP CAT6 Network Cable , 4 Pairs CCA Conductor Cat6 Ethernet Cable 0



Application
• Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 6 and
ISO 11801 2nd Edition Class E channel standards.

• Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5
Category 6 component standards.

• Third party tested to comply with ANSI/TIA-568-C.2.
• Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
• Descending length cable markings enable easy identification of remaining cable
which reduces installation time and cable scrap.

• Color Availability: Additional cable colors available.


Order Informations
MarkingHELLOSIGNAL NO.7112202 U/UTP CAT6 4PR 23AWG PVC XXX
(or Per customer's request)

Inner Package305m/Spool,305m/Reel (or Per customer's request)
Outer PackageColor Box, Pallet (or Per customer's request)
Delivery timeNormally 25 days after received the deposit.
BrandHELLOSIGNAL® OR OEM
