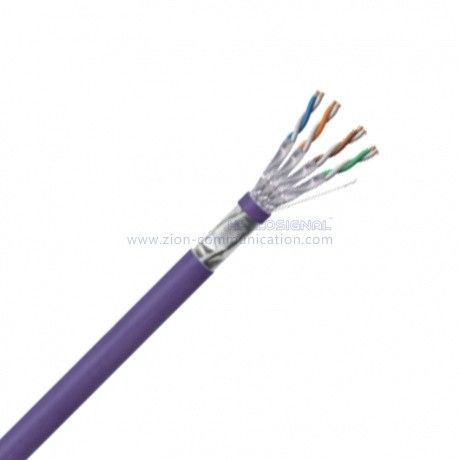

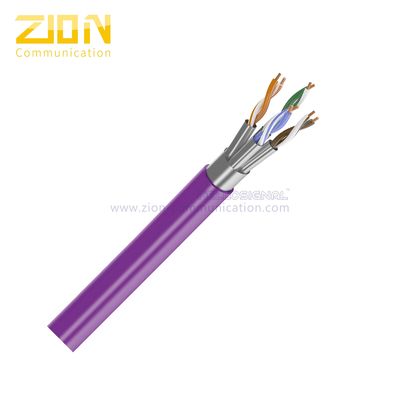

F/FTP Shielded CAT6A Cable with 23 AWG Bare Copper and PVC CMR Jacket for High-Speed Networking

Basic Information

Place of Origin:	Hangzhou, China
Brand Name:	hellosignal
Certification:	UL, ETL, CE,CPR, RoHS
Model Number:	F/FTP CAT6A

Packaging Details:	pull box, wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
Payment Terms:	T/T,L/C,D/P
Supply Ability:	30KM month

Get Best Price Contact Now

Detail Information

Number Of Conductors:	4	Type:	CAT5/CAT5e/CAT6/CAT7
Jacket:	PVC CMR	Color:	Blue/Red/Black/Grey
Conductor:	Bare Copper	Application:	Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
Highlight:	cctv camera cable , outdoor camera cable

Product Description

F/FTP CAT 6A Twisted Pair Installation Cable

Product Number: 7112334

Cable Type: LAN Cable

Construction Specifications

Conductor: 23 AWG Solid Bare Copper

Pairs: 4 Pairs

Insulation: 1.35 mm Skin-Foam-Skin

Insulation Colors: Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown

Shield: Individual Pair shield, Al/PET Foil, Foil face out

Drain Wire: 0.40±0.005mm TC

Overall Shield: Al/PET Foil

Rip Cord: Cotton

Outer Jacket: 8.0±0.2 mm PVC CMR

Electrical Characteristics

Impedance: 4-100MHz 100±15 Ohms, 100-200MHz 100±22 Ohms, 200-500MHz 100±32 Ohms

Max. Conductor DC Resistance (20℃): 8.7 Ohms/100m

Resistance Unbalance (%): Max. 2.5

Pair to Ground Capacitance Unbalance: 330 pF/100m

Transfer Impedance: Max 10 mOhms/m @100MHz

Installation Temperature: -30 to 50℃

Operation Temperature: -20 to 75℃ (-4 to 167℉)

Cross Section

Applications

Suitable for structured premises cabling
For transmission of digital and analogue voice and data signals
Especially suitable for all Class EA applications
ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T (IEEE 802.3)
Token Ring 4/16Mbit/s, TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s (IEEE 802.5)

Standards Compliance

IEC/ISO 61156-5; ANSI/TIA568C.2; ISO/IEC 11801

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.1	570.0	45.0	74.3	72.3	67.8	64.8
4	23.0	3.8	552.0	45.0	65.3	63.3	55.8	52.8
10	25.0	6.0	545.0	45.0	59.3	57.3	47.8	44.7
16	25.0	7.6	543.0	45.0	56.2	54.2	43.7	40.7
20	25.0	8.5	542.0	45.0	54.8	52.8	41.8	38.8
31.25	25.0	10.7	540.0	45.0	51.9	49.9	37.9	34.9
62.5	21.5	15.4	539.0	45.0	47.4	45.4	31.9	28.9
100	20.1	19.8	538.0	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	537.0	45.0	39.8	37.8	21.8	18.8
300	17.3	36.4	536.0	45.0	37.1	35.1	18.3	15.3
400	17.3	43.0	536.0	45.0	35.3	33.3	15.8	12.8
500	17.3	45.3	536.0	45.0	33.8	31.8	13.8	10.8
