U/FTP CAT 6A Network Cable with LSZH Jacket 23 AWG Bare Copper and 500MHz Bandwidth for High-Speed Data Transmission

Basic Information

Place of Origin:	Hangzhou, China
Brand Name:	hellosignal
Certification:	UL, ETL, CE,CPR, RoHS
Model Number:	U/FTP CAT6A

Packaging Details:	pull box, wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
Payment Terms:	T/T,L/C,D/P
Supply Ability:	30KM month

Get Best Price Contact Now

Detail Information

Number Of Conductors:	4	Type:	CAT5/CAT5e/CAT6/CAT7
Jacket:	PVC	Color:	Blue/Red/Black/Grey
Conductor:	Bare Copper	Application:	Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
Highlight:	cctv camera cable , outdoor camera cable

Product Description

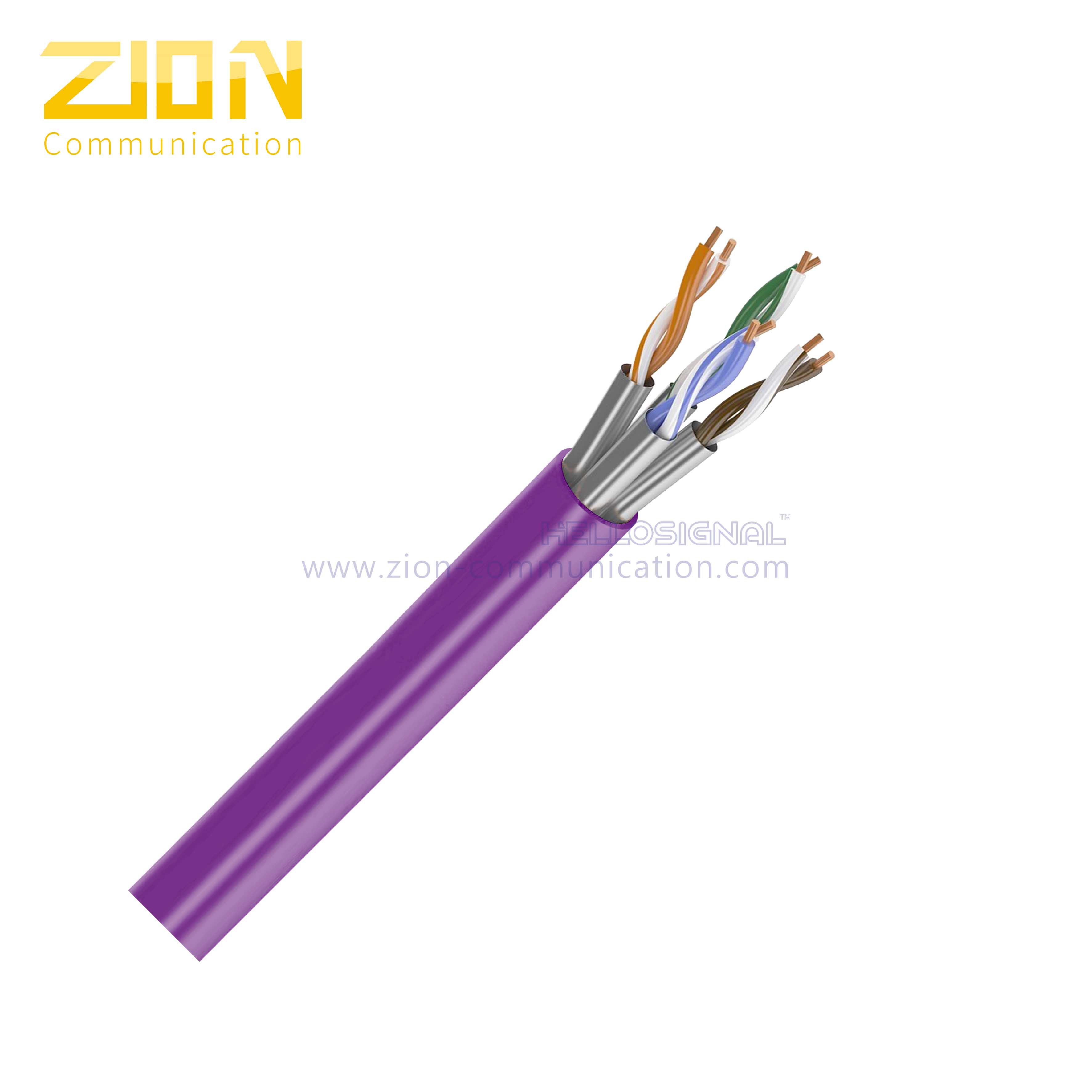

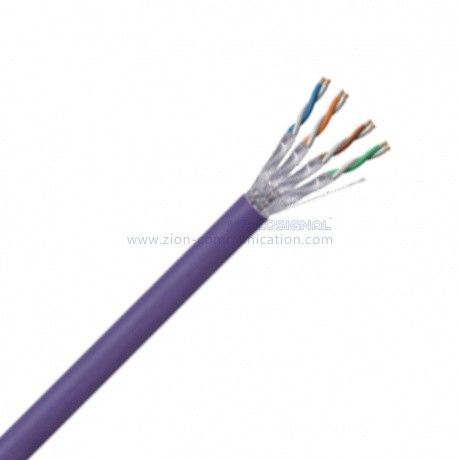

U/FTP Outdoor Network Cable CAT 6A BC LSZH Twisted Pair Installation

High-performance U/FTP CAT 6A twisted pair installation cable designed for outdoor networking applications with superior electrical characteristics and LSZH (Low Smoke Zero Halogen) jacket for enhanced safety.

Product Identification

LAN CABLE
NO. 7112326

Construction Details

Conductor: 23 AWG Solid Bare Copper

Pairs: 4 Pairs

Insulation: 1.35 mm Skin-Foam-Skin

Insulation Colors: Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown

Overall Shield: Individual Pair shield, Al/PET Foil, Foil face out

Drain Wire: 0.40±0.005mm TC

Rip Cord: Cotton

Out Jacket: 8.0±0.2 mm LSZH

Electrical Characteristics

Impedance: 4-100MHz 100±15 Ohms, 100-200MHz 100±22 Ohms, 200-500MHz 100±32 Ohms

Max. Conductor DC Resistance 20℃: 8.7 Ohms/100m

Resistance Unbalance (%): Max. 2.5

Pair to Ground Capacitance Unbalance: 330 pF/100m

Transfer Impedance: Max 10 mOhms/m @100MHz

Installation Temperature: -30 to 50℃

Operation Temperature: -20 to 75℃

Cross Section

Applications

Suitable for structured premises cabling
For transmission of digital and analogue voice and data signals
Especially suitable for all Class EA applications
ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T (IEEE 802.3)
Token Ring 4/16Mbit/s, TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s (IEEE802.5)

Standards Compliance

IEC/ISO 61156-5; ANSI/TIA568C.2; ISO/IEC 11801

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss(Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew(Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.1	570.0	45.0	74.3	72.3	67.8	64.8
4	23.0	3.8	552.0	45.0	65.3	63.3	55.8	52.8
10	25.0	6.0	545.0	45.0	59.3	57.3	47.8	44.7
16	25.0	7.6	543.0	45.0	56.2	54.2	43.7	40.7
20	25.0	8.5	542.0	45.0	54.8	52.8	41.8	38.8
31.25	25.0	10.7	540.0	45.0	51.9	49.9	37.9	34.9
62.5	21.5	15.4	539.0	45.0	47.4	45.4	31.9	28.9
100	20.1	19.8	538.0	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	537.0	45.0	39.8	37.8	21.8	18.8
300	17.3	36.4	536.0	45.0	37.1	35.1	18.3	15.3
400	17.3	43.0	536.0	45.0	35.3	33.3	15.8	12.8
500	17.3	45.3	536.0	45.0	33.8	31.8	13.8	10.8

Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Marking: HELLOSIGNAL NO.7112326 U/FTP CAT6A 4PR 23AWG LSZH XXX (or Per customer's request)

Inner Package: 305m/Spool, 305m/Reel (or Per customer's request)

Outer Package: Color Box, Pallet (or Per customer's request)

Delivery Time: Normally 25 days after received the deposit

Brand: HELLOSIGNAL® OR OEM
