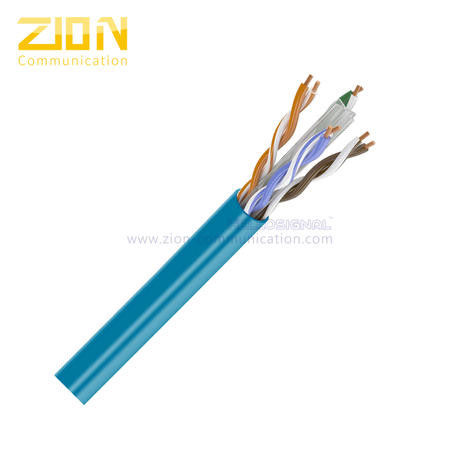

U/UTP CAT 6A Network Cable 500MHz 10Gbps with Bare Copper Conductor for High-Speed Ethernet and LAN Applications

Basic Information

Place of Origin:	Hangzhou, China
Brand Name:	HELLOSIGNAL OR OEM
Certification:	UL, ETL, CE,CPR, RoHS
Model Number:	NO. 7112302

Minimum Order Quantity:	305M/Spool, 100 spools
Packaging Details:	wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
Payment Terms:	T/T,L/C
Supply Ability:	30000 spools/month, 9150KM/Month

Get Best Price Contact Now

Detail Information

Number Of Conductors:	4 Pairs	Type:	U/utp Cat6a
Jacket:	PVC	Color:	Blue/Grey/......
Conductor:	Bare Copper	Application:	Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
Insulation:	HDPE	Standard 1:	ISO/IEC 11801-1 Ed.1.0
Standard 2:	ANSI/TIA-568-C.2 ANSI/TIA-568.2-D	Standard 3:	UL444、UL1581、UL1666、IEC60332-1、EN50399
Support:	10Gbase-t、1000BASE-T
Highlight:	cctv camera cable , outdoor camera cable

Product Description

U/UTP CAT 6A Network Cable - 500MHz, 10Gbps

Solid copper conductor, unshielded, PVC-CPR jacket, Cat6a Ethernet cable (NO 7112302)

Product Overview

U/UTP CAT 6A ILS-Global Market (NO. 7112302)

Cable Construction

Conductor	0.565±0.005mm Solid Bare Copper
Pairs	4 Pairs
Insulation	1.02±0.05 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Cross Section	Modified Polyethylene
RipCord	Cotton or Fibre
Outer Jacket	7.1±0.5 mm PVC ILS

ILS: Round jacket with internal Longitudinal Striations

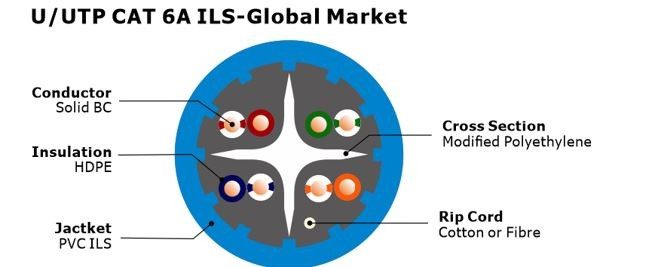

Cross Section

Application Support

10GBASE-T, 1000BASE-T, 100BASE-T, 10BASE-T
VoIP, ISDN, Token, 100MTPPDM, Analog and Data video
POE Type 1, 2, 3, 4

Electrical Characteristics

DC Resistance	<9.38 Ohms/100m @20℃
DC Resistance Unbalance	4% @ 20℃
Mutual Capacitance	5.6 nF/100m
Characteristic Impedance	1-100 MHz: 100±15 Ohms 100-200 MHz: 100±22 Ohms 200-500 MHz: 100±32 Ohms
Max Frequency	500MHz
Capacitance Unbalance	330 pF/100m
NVP (传输速率)	67%
Delay Skew	≤ 45ns/100m

Performance Characteristics

Frequency (MHz)	RL Min. (dB)	Insertion Loss Max. (dB/100m)	Propagation Delay Max. (ns/100m)	Delay Skew Max. (ns/100m)	NEXT Min. (dB)	PS NEXT Min. (dB)	ELNEXT Min. (dB/100m)	PS ELNEXT Min. (dB/100m)
1	20.0	2.1	570.0	45.0	74.3	72.3	67.8	64.8
4	23.0	3.8	552.0	45.0	65.3	63.3	55.8	52.8
10	25.0	6.0	545.4	45.0	59.3	57.3	47.8	44.7
16	25.0	7.6	543.0	45.0	56.2	54.2	43.7	40.7
20	25.0	8.5	542.1	45.0	54.8	52.8	41.8	38.8
31.25	23.6	10.7	540.4	45.0	51.9	49.9	37.9	34.9
62.5	21.5	15.4	538.6	45.0	47.4	45.4	31.9	28.9
100	20.1	19.8	537.6	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	536.1	45.0	39.8	37.8	21.8	18.8
300	17.3	36.4	536.1	45.0	37.1	35.1	18.3	15.3
400	17.3	43.0	535.8	45.0	35.3	33.3	15.8	12.8
500	17.3	45.3	535.6	45.0	33.8	31.8	13.8	10.8

The above transmission performance tested for 100M, 20±2℃ conditions

Order Information

Marking	HELLOSIGNAL NO.7112302 U/UTP CAT6A 4PR 23AWG PVC ...305M(1000FT) (or per customer's request)
Inner Package	305m/Spool, 305m/Reel (or per customer's request)
Outer Package	Color Box, Pallet (or per customer's request)
Delivery Time	Normally 25 days after receiving deposit
Brand	HELLOSIGNAL® OR OEM

About CAT 6A Cable

CAT6A cable (Category 6a) is used for internet and Ethernet cabling infrastructure. It delivers performance up to 500 MHz—twice that of Cat 6—with improved alien crosstalk specifications for reduced noise interference at high frequencies.

Construction Options

23 AWG Solid Copper conductor
U/UTP: 4 unshielded twisted pairs with no outer shielding
U/FTP: 4 pairs individually shielded
F/FTP: 4 pairs individually shielded with outer foil shield
Available in 100M, 305M, 300M, 500M bulk lengths
Jacket materials: PVC, PE, LSZH, CM, CMR, CMP

Applications

Supports 10 Gbps speeds with frequencies up to 500 MHz
10GBASE-T/POE+/HDBASE T
Computers, laptops, televisions, WiFi access points
Network-enabled appliances and telephones

Standards & Certifications

ISO/IEC 11801-1 Ed.1.0 | ANSI/TIA-568-C.2 | ANSI/TIA-568.2-D | IEC60332-1 | EN50399

UL/ETL/CPR/CE/DELTA/RoHS/REACH/ISO9001/ANATEL/SABS

Connectors

RJ-45 is the standard connector used with Cat6a cable assemblies, compatible with 99% of network devices.

Manufacturer Profile

Zion Communication is a leading manufacturer and exporter of U/UTP CAT6A PVC jacket cables. With extensive export manufacturing experience and advanced production facilities, we provide competitive signal and low voltage power transmission products while creating maximum value for our customers.
