Outdoor CAT5E Network Cable With Messenger and Bare Copper for Enhanced Durability

Basic Information

Place of Origin:	Hangzhou, China
Brand Name:	hellosignal
Certification:	UL, ETL, CE,CPR, RoHS
Model Number:	CAT5E Outdoor Cable with Messenger

Packaging Details:	pull box, wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
Payment Terms:	T/T,L/C,D/P
Supply Ability:	30KM month

Get Best Price Contact Now

Detail Information

Number Of Conductors:	4	Type:	CAT5/CAT5e/CAT6/CAT7
Jacket:	PVC	Color:	Blue/Red/Black/Grey
Conductor:	Bare Copper	Application:	Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
Highlight:	cat5e networking cable , outdoor camera cable

Product Description

Video Over FTP CAT5E Network Cable Outdoor With Messenger In Black Jacket

This outdoor-rated video over FTP cable combines Cat5E networking capabilities with power conductors in a durable, weather-resistant construction. Designed for demanding outdoor surveillance and security applications.

Construction Specifications

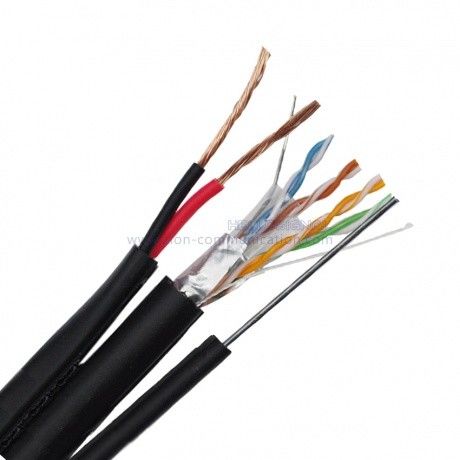

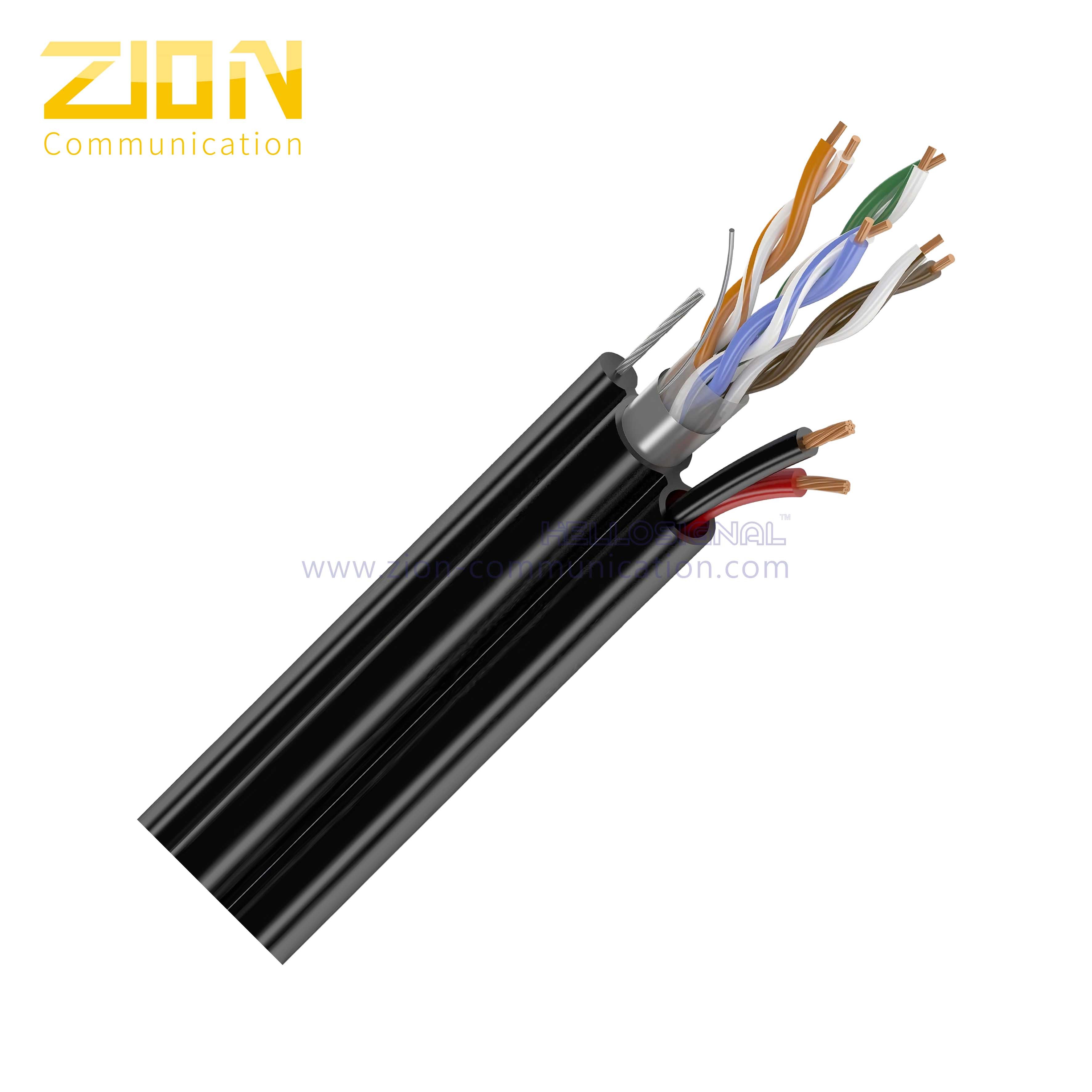

Description	4 Pair Cat5E Type + 2C-0.75 With Messenger Construction

Video and Control Pairs

Inner Conductor	0.0196"/0.50mm/24AWG Bare Copper
Stranding	Solid
Insulation Material	Polyethylene 0.008"/0.2mm
Number of Conductors	8 (4 Pair)
Drain Wire	TCCS
Shield	Aluminum/PET Foil

Power Conductors

Inner Conductor	Copper Clad Aluminum
Stranding	31*0.25mm
Insulation Material	PVC 0.008"/0.25mm
Number of Conductors	2
Shield	None
Messenger	1.2mm Zinned Steel

Electrical Characteristics - Video and Control Pairs

Temperature Rating	-20℃ to 60℃
Operating Voltage	300 V RMS
Max. Capacitance @1 KHz	45.9 pf/100m
Nominal Impedance	100 Ohms
Nominal Velocity of Propagation	66%
DC Resistance per Conductor @ 20℃	26 Ohms/1M' Nom

Electrical Characteristics - Power Conductors

Temperature Rating	-20℃ to 60℃
Operating Voltage	300 V RMS
Max. Capacitance @1 KHz	NA
DC Resistance per Conductor @ 20℃	-
Insulation Colors	Black, Red

Overall Construction

Jacket Type	UV-PE
Jacket Color	Siamese-Black
Nominal Outer Diameter	5.4mm * 5.0mm

Mechanical Properties

Max. Recommended Pull Tension	15 KGS
Minimum Bend Radius (Install)	86mm

Order Information

Marking: HELLOSIGNAL Video Over UTP 4 Pair FTP Cat5E Type + 2C-0.75MM2 M

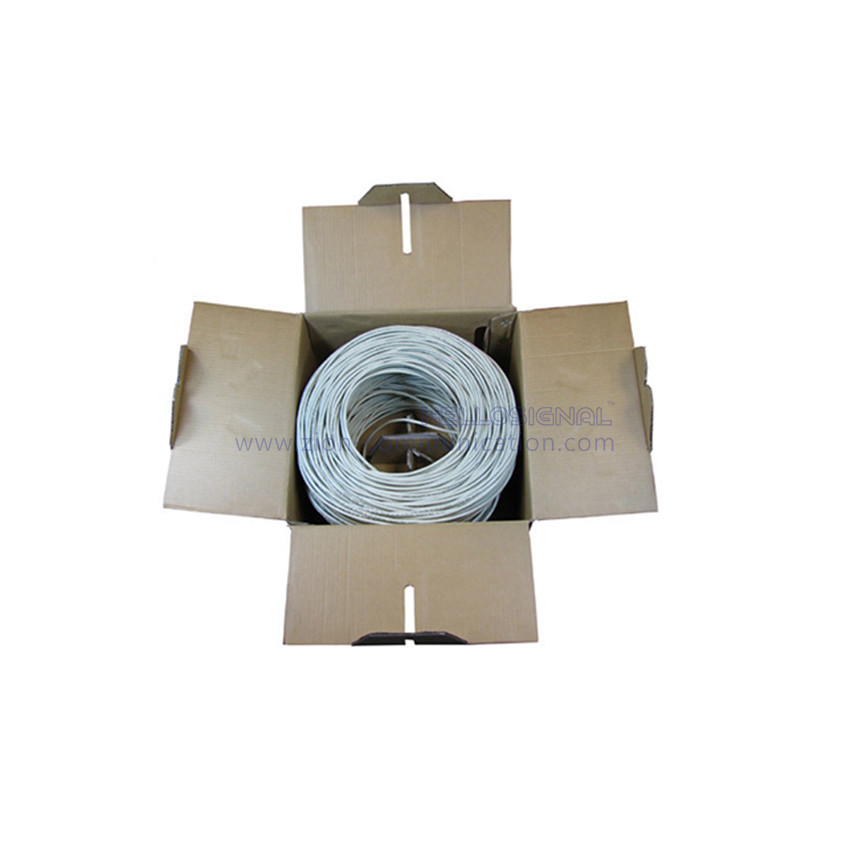

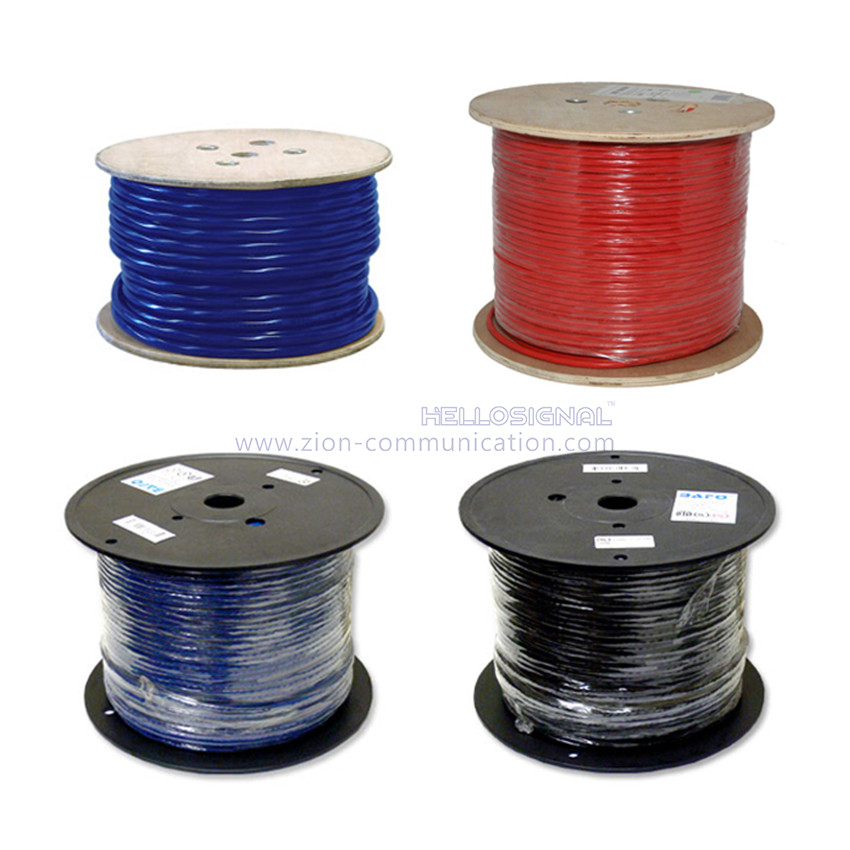

Inner Package: 500FT/PULL BOX, 1000FT/Wooden Spool, Pallet
Delivery Time: Normally 20-25 days after receiving deposit
Brand: HELLOSIGNAL® OR OEM
