U/UTP CAT6 Network Cable with 4 Pairs CCA Conductor for High-Speed Ethernet and LAN Connectivity

Basic Information

Place of Origin:	Hangzhou, China
Brand Name:	hellosignal
Certification:	UL, ETL, CE,CPR, RoHS
Model Number:	U/UTP CAT6

Packaging Details:	pull box, wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
Payment Terms:	T/T,L/C,D/P
Supply Ability:	30KM month

Get Best Price Contact Now

Detail Information

Number Of Conductors:	4	Type:	CAT5/CAT5e/CAT6/CAT7
Jacket:	PVC	Color:	Blue/Red/Black/Grey
Conductor:	Bare Copper	Application:	Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
Highlight:	cctv camera cable , outdoor camera cable

Product Description

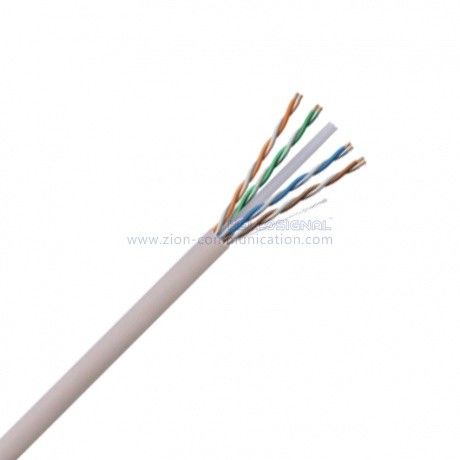

U/UTP CAT6 Network Cable, 4 Pairs CCA Conductor

High-performance Category 6 Ethernet cable featuring 4-pair copper-clad aluminum construction for reliable network connectivity.

Product Specifications

Product No.: 7112208

Cable Construction

Component	Specification
Conductor	23 AWG Solid CCA (Copper Clad Aluminum)
Pairs	4 Pairs
Insulation	1.02 mm HDPE
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Filler	Cross Filler
Rip Cord	Cotton
Outer Jacket	6.4±0.2 mm PVC

Electrical Characteristics

Parameter	Specification
Impedance	1 - 250MHz 100±15 Ohms
Insulation Resistance	>5000MΩ*KM
Dielectric Strength	DC 2500V 2S
Max. Conductor DC Resistance 20℃	10.8 Ohms/100m
Resistance Unbalance (%)	Max. 2.5
Pair to Ground Capacitance Unbalance	330 pF/100m
Transfer Impedance	Max 10 mOhms/m @100Mhz
Installation Temperature	-30 - 50℃
Operation Temperature	-20 - 75℃

Cross Section View

Applications & Standards Compliance

Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel standards
Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 6 component standards
Third party tested to comply with ANSI/TIA-568-C.2
Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications
Descending length cable markings enable easy identification of remaining cable, reducing installation time and cable scrap
Additional cable colors available upon request

Ordering Information

Item	Details
Marking	HELLOSIGNAL NO.7112202 U/UTP CAT6 4PR 23AWG PVC XXX (or per customer's request)
Inner Package	305m/Spool, 305m/Reel (or per customer's request)
Outer Package	Color Box, Pallet (or per customer's request)
Delivery Time	Normally 25 days after receiving deposit
Brand	HELLOSIGNAL® OR OEM
