F/UTP CAT 6A Network Cable with 23 AWG Solid Bare Copper and Dual Jacket PE for 500MHz Bandwidth

Basic Information

Place of Origin:	Hangzhou, China
Brand Name:	hellosignal
Certification:	UL, ETL, CE,CPR, RoHS
Model Number:	F/FTP CAT6A

Packaging Details:	pull box, wooden spool, carton, pallet
Delivery Time:	Normally 25 working days
Payment Terms:	T/T,L/C,D/P
Supply Ability:	30KM month

Get Best Price Contact Now

Detail Information

Number Of Conductors:	4	Type:	CAT5/CAT5e/CAT6/CAT7
Jacket:	PE	Color:	Blue/Red/Black/Grey
Conductor:	Bare Copper	Application:	Telecommunication,Networking,Telecom/CATV,broadband Connection,Telecommunication/CCTV/Computer
Highlight:	cctv camera cable , outdoor camera cable

Product Description

F/UTP Dual Jacket CAT 6A Network Patch Cable

High-performance twisted pair installation cable designed for demanding network environments with dual jacket construction for enhanced durability.

Product Information

Product Type	LAN Cable
Part Number	7112351

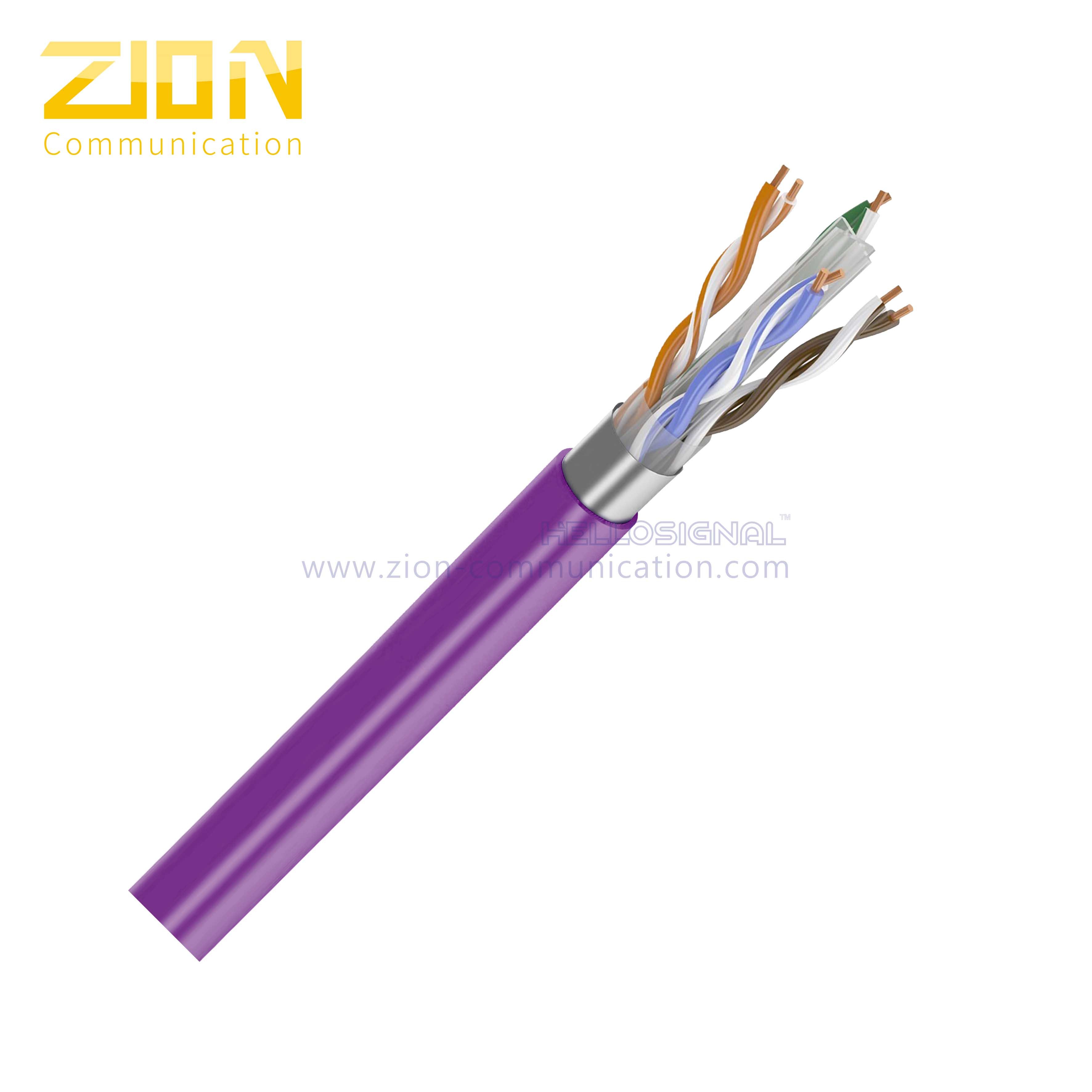

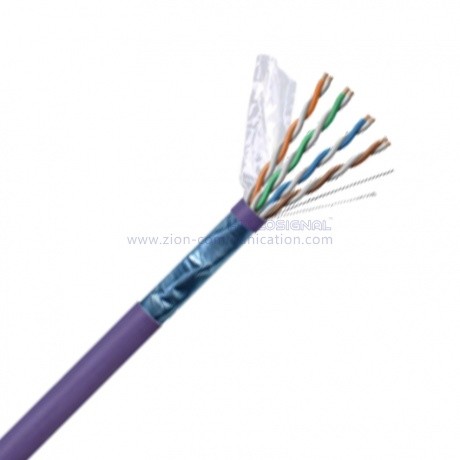

Cable Construction

Conductor	23 AWG Solid Bare Copper
Pairs	4 Pairs
Insulation	1.35 mm Skin-Foam-Skin
Insulation Colors	Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown
Rip Cord	Cotton
Drain Wire	0.40±0.005mm TC
Inner Jacket	6.2 ±0.2 mm PVC
Overall Shield	Al/PET Foil, Foil face out
Outer Jacket	7.6±0.2 mm PE

Electrical Characteristics

Impedance	4-100MHz: 100±15 Ohms 100-200MHz: 100±22 Ohms 200-500MHz: 100±32 Ohms
Max. Conductor DC Resistance (20℃)	8.4 Ohms/100m
Resistance Unbalance (%)	Max. 2.5
Pair to Ground Capacitance Unbalance	330 pF/100m
Transfer Impedance	Max 10 mOhms/m @100MHz
Installation Temperature	-30 to 50℃
Operation Temperature	-20 to 75℃

Cross Section

Applications

Suitable for structured premises cabling
For transmission of digital and analogue voice and data signals
Especially suitable for all Class EA applications
ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T (IEEE 802.3)
Token Ring 4/16Mbit/s, TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s (IEEE 802.5)

Standards Compliance

IEC/ISO 61156-5; ANSI/TIA568C.2; ISO/IEC 11801

Performance Characteristics

Frequency (MHz)	RL (Min.) (dB)	Insertion Loss (Max.) (dB/100m)	Propagation Delay (Max.) (ns/100m)	Delay Skew (Max.) (ns/100m)	NEXT (Min.) (dB)	PSNEXT (Min.) (dB)	ELNEXT (Min.) (dB/100m)	PSELNEXT (Min.) (dB/100m)
1	20.0	2.1	570.0	45.0	74.3	72.3	67.8	64.8
4	23.0	3.8	552.0	45.0	65.3	63.3	55.8	52.8
10	25.0	6.0	545.4	45.0	59.3	57.3	47.8	44.7
16	25.0	7.6	543.0	45.0	56.2	54.2	43.7	40.7
20	25.0	8.5	542.1	45.0	54.8	52.8	41.8	38.8
31.25	25.0	10.7	540.4	45.0	51.9	49.9	37.9	34.9
62.5	21.5	15.4	538.6	45.0	47.4	45.4	31.9	28.9
100	20.1	19.8	537.6	45.0	44.3	42.3	27.8	24.8
200	18.0	29.0	536.1	45.0	39.8	37.8	21.8	18.8
300	17.3	36.4	536.1	45.0	37.1	35.1	18.3	15.3
400	17.3	43.0	535.8	45.0	35.3	33.3	15.8	12.8
500	17.3	45.3	535.6	45.0	33.8	31.8	13.8	10.8

Note: The above transmission performance for the 100M, 20±2℃ under the conditions tested.

Order Information

Marking	HELLOSIGNAL NO.7112351 F/UTP Dual Jacket CAT6A 4PR 23AWG PE XXX (or Per customer's request)

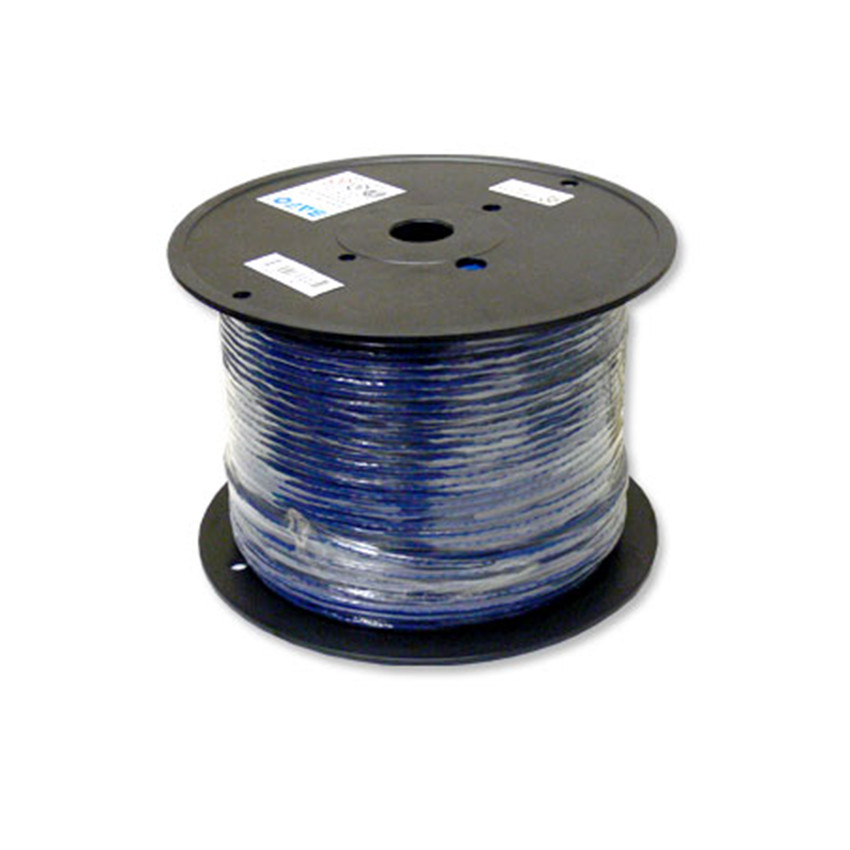

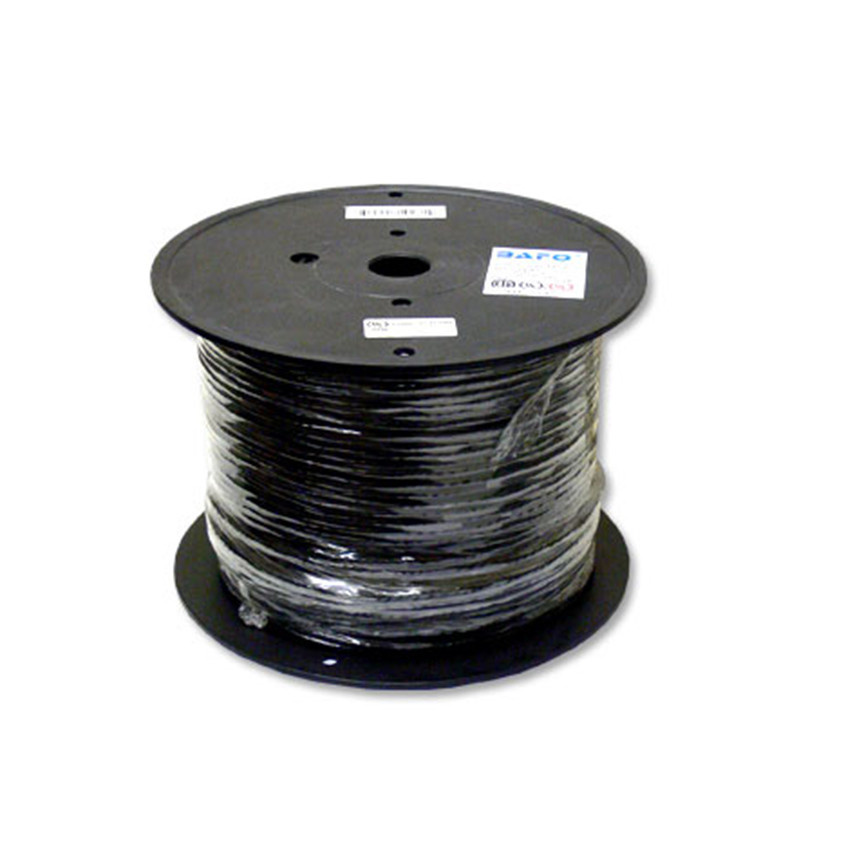

Inner Package	305m/Spool, 305m/Reel (or Per customer's request)
Outer Package	Color Box, Pallet (or Per customer's request)
Delivery Time	Normally 25 days after received the deposit
Brand	HELLOSIGNAL® OR OEM
