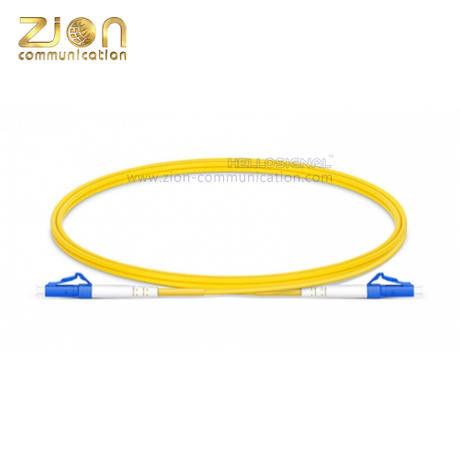

LC UPC to LC UPC Simplex G.652.D Single Mode Fiber Optic Patch Cord with 2.0mm PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to LC UPC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	G.652.D Fiber Unit LC UPC Simplex , LC UPC Simplex Single Mode

Product Description

LC UPC to LC UPC Simplex G.652.D Fiber Optic Patch Cord

High-performance fiber optic patch cord featuring LC UPC connectors on both ends, designed for reliable single-mode data transmission in industrial and telecommunications applications.

Product Specifications

Zion Code: 1111S112-2

Description: LC UPC to LC UPC Simplex G.652.D Single Mode PVC 2.0mm - 2m (6ft) FOPC

Fiber Optic Cable Specifications

Parameter	Specification
Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Fiber Count	Simplex
Cable Jacket	PVC, 2.0mm OD
Jacket Color	Yellow (Single-mode)
Cable Length	2m (6ft) - Custom lengths available

Mechanical Specifications

Parameter	Specification
Ferrule	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB (1,000 mating cycles)

Connector Specifications

Connector Type: LC UPC (Lucent Connector)

Typical Applications: High-density connections, SFP and SFP+ transceivers, XFP transceivers

Performance Parameters

Parameter	LC UPC Specification
Operating Wavelength	1310-1550 nm
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 55 dB
Repeatability	≤ 0.1 dB
Interchangeability	≤ 0.2 dB
Tensile Strength	≥ 1000 N
Operating Temperature	-20°C to +85°C
Storage Temperature	-40°C to +85°C

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:

Customized Logo Printing
Printing on Cable
Custom Label/PE Bag/Carton Design
Various Colors & Lengths Available
