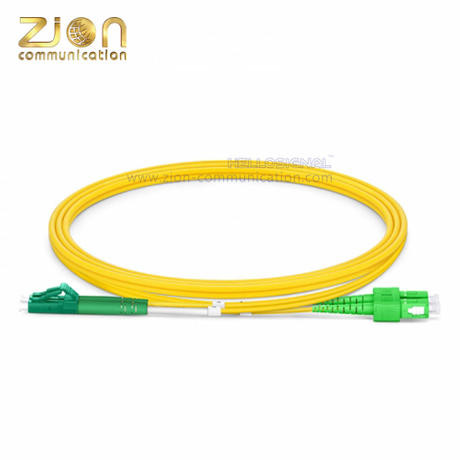

LC APC to SC APC Duplex G.652.D Single Mode PVC 2.0mm Fiber Optic Patch Cord

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC APC to SC APC Duplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	Single Mode SC APC Duplex , 2m Length Fiber Optic Patch Cord , G.652.D Fiber Optic Patch Cord

Product Description

LC APC to SC APC Duplex Fiber Optic Patch Cord

High-performance duplex fiber optic patch cord featuring LC APC to SC APC connectors, designed for reliable data transmission in demanding network environments.

Product Details

LC APC to SC APC Duplex

G.652.D Single Mode PVC 2.0mm - 2m (6ft) FOPC

Product Code: 1222D112-2

Fiber Optic Cable Specifications

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125), OM3, OM4 (50/125, Laser Optimization)
Fiber Count	Simplex / Duplex
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths available on request

Mechanical Specifications

Ferrule	Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm (Excluding MTRJ)
Repeatability	≤ 0.2dB 1,000 times mating cycles

Connector Specifications

LC Connector (Lucent/Little/Local Connector)

Typical Applications: High density connections, SFP and SFP+ transceivers, XFP transceivers

SC Connector (Subscriber/Square/Standard Connector)

Typical Applications: Telecom, GPON, EPON, GBIC

Performance Specifications

Parameter	LC APC	SC APC
Operating Wavelength (nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 60	≥ 60
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 to +85	-20 to +85
Storage Temperature (°C)	-40 to +85	-40 to +85

OEM/ODM Services

ZION Communication has extensive experience in producing OEM/ODM solutions with our professional R&D team.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Colors & Lengths Available
