Hydrometry Power And Control Cables 4 Core PE Insulation Jacket
Industrial Ethernet Cable
Application
Liquid level transmitter dedicated air guide cable is a specialized gas detection cable designed for underground monitoring applications. The cable features an integrated structure with air pipe, power cable, signal cable, waterproof decompression layer, shielding layer, and outer protective layer. Power and signal cables are tightly arranged around the airway to form a ring core, with waterproof decompression layer, shielding layer, and outer sheath wrapped coaxially around the cable core.
This innovative structural design enables simultaneous signal detection and transmission for multiple underground detection sensors, providing safe and accurate measurement of underground oil, water, and gas targets. The cable offers excellent resistance to oil, abrasion, acids, alkalis, corrosion, and water, along with superior shielding performance, flexibility, tensile strength, pressure resistance, and high reliability.
The outer jacket material is polyethylene or polyurethane flexible bright body, providing comprehensive protection with waterproof, anti-oil, anti-corrosion, and tensile properties.
Product Features
- XTZP Polyethylene insulated Dingqing sheathed shielded gas detection cable
- XTVP Polyethylene insulated PVC sheathed shielded gas detection cable
- XTUP Polyethylene Insulated Polyurethane Elastic Sheath Shielded Gas Transmission Detection Cable

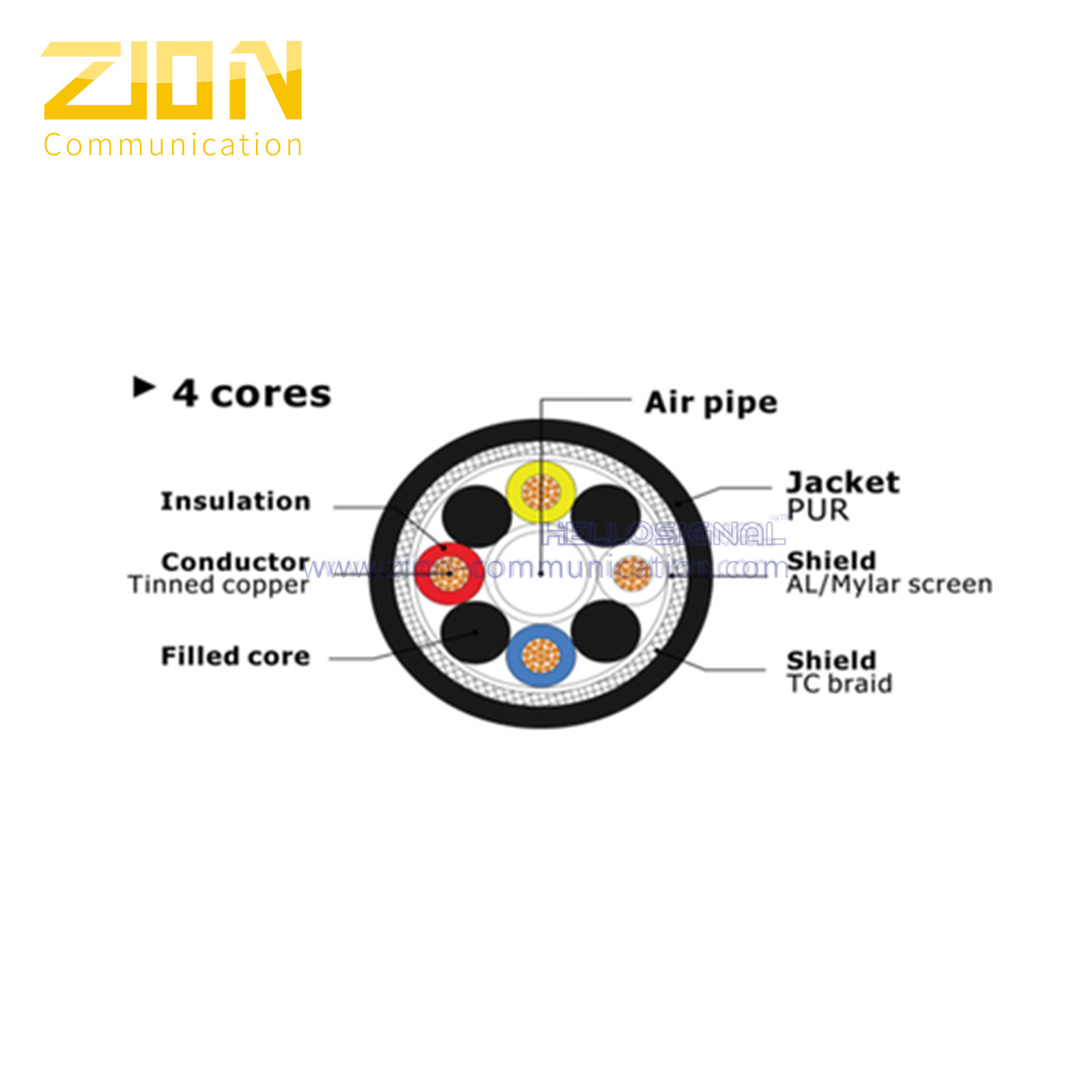

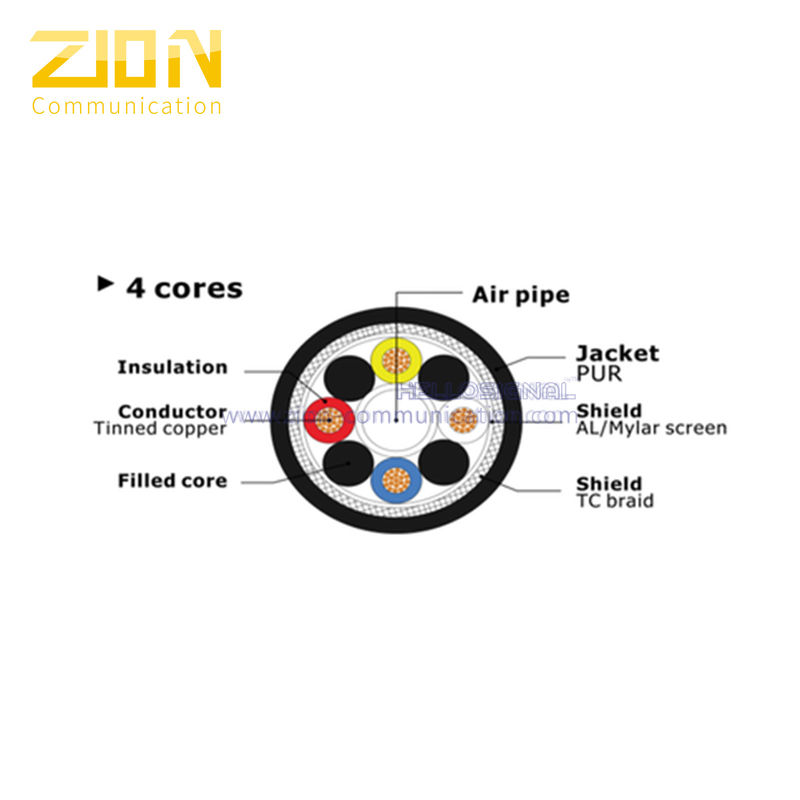

Cross Section
Performance Specifications
Maximum DC Resistance
- 0.12mm² = 163 Ω/KM
- 0.20mm² = 90 Ω/KM
Minimum Insulation Resistance
1000 MΩ/km
Product List
| Item No. |
Spec. |
Jacket |
Nominal OD(mm) |
Copper Weight (kg/km) |
Weight (kg/km) |
| 7140090 |
4*0.12mm² |
7/0.15 |
1.0/2.2 |
1.2 |
7.3 |
| 7140091 |
4*0.20mm² |
7/0.20 |
1.0/2.2 |
1.4 |
7.3 |
| 7140092 |
5*0.12mm² |
7/0.15 |
1.0/2.2 |
1.2 |
7.3 |
| 7140093 |
5*0.20mm² |
7/0.20 |
1.0/2.2 |
1.4 |
7.3 |
| 7140094 |
6*0.12mm² |
7/0.15 |
1.0/2.2 |
1.2 |
7.3 |
| 7140095 |
6*0.20mm² |
7/0.20 |
1.0/2.2 |
1.4 |
7.3 |
| 7140096 |
8*0.12mm² |
7/0.15 |
1.0/2.2 |
1.2 |
7.3 |
| 7140097 |
8*0.20mm² |
7/0.20 |
1.0/2.2 |
1.4 |
7.3 |
Order Information
Marking
HELLOSIGNAL Hydrometry cable XXXFT/M
Package
100M/Reel, 300M/Wooden Spool
Delivery Time
Normally 25 days after receiving the deposit
