VR - 90P Solid PE CCTV Black Coaxial Cable 22 AWG BC Conductor

China VR - 90P Solid PE CCTV Black Coaxial Cable 22 AWG BC Conductor supplier

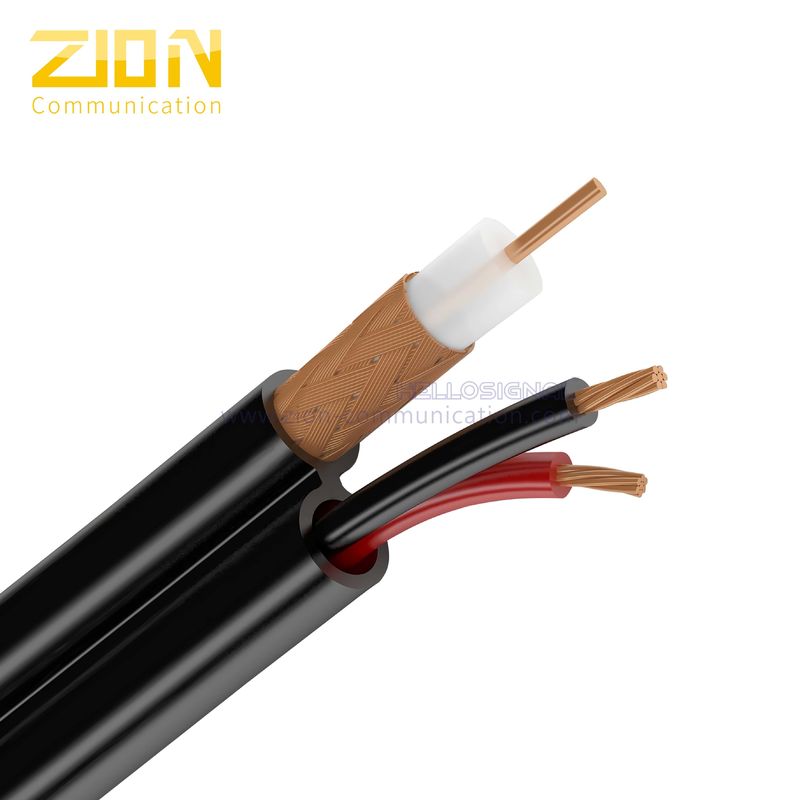

Large Image :  VR - 90P Solid PE CCTV Black Coaxial Cable 22 AWG BC Conductor

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: ISO, UL, CE, RoHS
Model Number: CCTV Coaxial Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time: Normally 15 days
Payment Terms: T/T, L/C
Supply Ability: 50*20’GP / Month
Detailed Product Description
Conductor: Bare Copper Insulation: Solid PE
Shield: CCA Braiding Jacket: PVC
Color: Black, White Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton





VR-90P Solid PE CCTV Coaxial Cable , 22 AWG BC with 2 × 0.75mm2 CCA Power





Quick Detail:



  • VR-90P RG59 CCTV Coaxial Cable
  • 24 × 0.20mm CCA Power
  • 22 AWG BC Conductor
  • 85% CCA Braiding
  • 2 × 0.75mm2 CCA Power
  • Solid PE Insulation
  • 75 Ohms CCTV Cable
  • PVC- UL Listed, CM Rated
  • RoHS Compliant
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton
  • MOQ: 30 KM





Description:



KT0722 VR-90P RG59 CCTV Coaxial Cable ST 85% CCA Braiding + 2×0.75mm2

RG59 is a specific type of CCTV coaxial cable , RG59 (Produced by KINGTONE) is perfect

for any type of surveillance camera installation. RG59 has a characteristic impedance of 75 ohms.

KINGTONE using best raw material and best worker to produce RG59 to meet high performance in

practical application. RG59 is packed in 500FT/1000FT plastic/wooden spool, and will be layed on

pallet to protect the spool and easier carry.Because of good managing methods,

KINGTONE’S price of RG59/U is not high although our quality is really high.





Applications:



Suitable for signal transmission

■ CCTV

■ Local Area Network

■ Digital video

■ Monitor/VDT display

■ Security Camera





Specifications:





KT0722 VR-90P RG59 CCTV Coaxial Cable ST 85% CCA Braiding + 2×0.75mm2
Construction Parameters:
  Inner Conductor 0.64mm/22AWG     Bare Copper
  Dielectric 3.7±0.05mm            Solid PE
  Shield Nom. 4.15mm
  Strand 0.12mm/34AWG Copper Clad Aluminum
  % Coverage 85 nom.
  Jacket 6.00±0.1mm                      PVC (Color by your choise)
  Power Wire Conductor 24×0.20mm Copper Clad Aluminum
  Power wire Diameter of insulation 2.0mm PVC
  Power Wire Color Code Red,Black
  Jacket 5.2±0.1mm PVC (Color by your choise)
  * 1 Pair of wire twisted

Electrical Characteristics:
  Capacitance 67±2 pF/m
  Impedance 75±3 Ω
  Inner Conductor Resistance 54 Ohms/KM at 20℃
  Return loss between 5 and 1000MHz > 22.5dB
  Velocity of Propagation  0.66
  Sparker Test (VAC) 3
  Operating Temp Range  (PVC) -20 ℃ to 65℃
  RoHS YES

Attenuation(20℃):
Frequency
(MHZ)
  Max Attenuation
(dB/100m)
5   2.68
55   9.56
187   18.24
211   19.51
350   25.64
450   29.39
550   32.76
750   38.92
865   42.30
1000   46.17

Order Informations:
  Marking KINGTONE KT0722 RG59 ST 85% CCA +2C-0.75mm2 CCA
CLASS 5 CE RoHS 70C XXXM  MMDDYYYY
  Package 100M/Plastic Spool,300M/500M/Wooden Spool,Carton
  Delivery time Normally 20-25 days after received the deposit.
  More informations  please contact with us.
