CCTV Coaxial Video Cable Siamese CMR Rated Cable 95% BC Braiding with BC Power

China CCTV Coaxial Video Cable Siamese CMR Rated Cable 95% BC Braiding with BC Power supplier

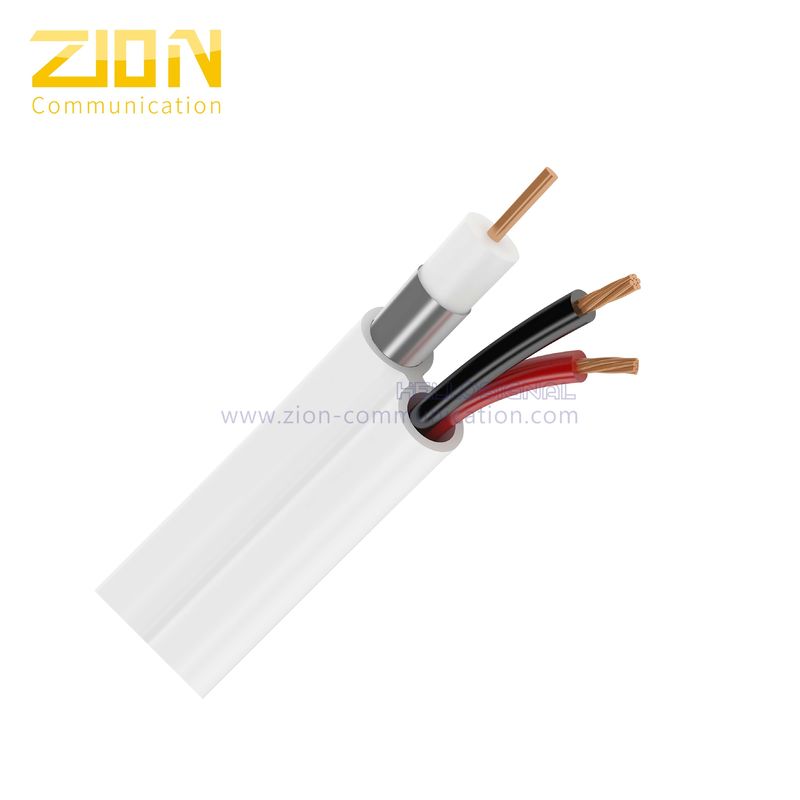

Large Image :  CCTV Coaxial Video Cable Siamese CMR Rated Cable 95% BC Braiding with BC Power

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: ISO, UL, CE, RoHS
Model Number: RG59/U CCTV Coaxial Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time: Normally 15 days
Payment Terms: T/T, L/C
Supply Ability: 50*20’GP / Month
Contact Now
Detailed Product Description
Conductor: Bare Copper Insulation: Foamed PE
Shield: Bare Copper Braiding Jacket: PVC
Color: Black, White Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton





95% BC Braiding with BC Power CCTV Coaxial Cable Siamese CMR Rated Cable





Quick Detail:



  • RG59/U CCTV Coaxial Cable
  • 16×0.001" / 0.25mm BC Power
  • 20 AWG BC Conductor
  • 95% BC Braiding
  • 2C / 18 AWG BC Power
  • Foamed PE Insulation
  • 75 Ohms CCTV Cable
  • PVC- UL Listed,CMR Rated
  • RoHS Compliant
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton
  • MOQ: 30 KM





Description:



KT0711 RG59/U CCTV Coaxial Cable 95% BC Braiding + 2C/18AWG BC Siamese CMR

RG59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by KINGTONE) is perfect

for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.

KINGTONE using best raw material and best worker to produce RG59/U to meet high performance in

practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on

pallet to protect the spool and easier carry.Because of good managing methods,

KINGTONE’S price of RG59/U is not high although our quality is really high.





Applications:



Suitable for signal transmission

■ CCTV

■ Local Area Network

■ Digital video

■ Monitor/VDT display

■ Security Camera





Specifications:



KT0711 RG59/U CCTV Coaxial Cable 95% BC Braiding + 2C/18AWG  BC Siamese CMR
Construction Parameters:
  Inner Conductor 0.032"/0.81mm/20AWG Bare Copper
  Dielectric 0.144"/3.66±0.05mm       Foamed Polyethylene
  First Shield Nom. 0.161"/4.10mm       Braiding
  Strands 0.005"/0.12mm Bare Copper
  % Coverage 95 nom
  Jacket 0.236"/6.00±0.1mm                   PVC (NEC RISER)
  Power Wire Conductor 2-18 AWG 16×0.001"/16×0.254mm Bare Copper
  Power wire Diameter of insulation 0.075"/1.90mm  PVC (NEC RISER)
  Power Wire Color Code Red,Black
  Jacket 0.199"/5.05±0.1mm PVC (NEC RISER)
  * 1 Pair of wire twisted
  Application For Use in Intermediate CCTV Run Lengths
  Limited Length Typical run length up to 1000 feet

Electrical Characteristics:
  Capacitance 52±1 pF/m 17±0.3 pF/ft
  Impedance 75±3 Ω
  Resistance at 20℃ 35.73 Ohms/KM 11.72 Ohms/KM
  Return loss between 5 and 1000MHz > 22dB
  Velocity of Propagation  0.85
  Shielding Effectiveness(>dB) 70
  Max Operating Voltage(KVMS) 3
  Operating Temp Range  (PVC) -20 ℃ to 75℃
  RoHS YES

Attenuation(20℃):
Frequency
(MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
1 0.45  1.48
10 0.90  2.95
50 1.90  6.23
100 3.20  10.49
200 4.00  13.11
400 4.90  16.07
700 8.60  28.20
900 9.80  32.13
1000 10.70  35.08

Order Informations:
  Marking KINGTONE KT0711 RG59/U 95% BC+2C18AWG BC CLASS 5 ETL XXXX  RoHS CMR CL2 75C XXXFT CAMERA/ZONE A B C D E F 1 2 3 4 5 6 7 8 9
  Package 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
  Delivery time Normally 20-25 days after received the deposit.
  More informations  please contact with us.
