FPLP-CL2P Fire Alarm Cable 14AWG 2 Cores Solid Shielded for Burglar Alarm System

Certification
Good quality CATV Coaxial Cable for sales
Good quality CATV Coaxial Cable for sales
8 years' cooperation with KINGTONE Electronics, very good partner!

—— Alexander Valencia

Impressed by quick and professional answer each time, very satisfied with good and stable quality.

—— John Scott

We have received the Network Cable goods. They are of stable quality and we'll do more business in the future.

—— David Wilson

Competive price with outstanding quality of Fire Alarm Cable alll the time. We'll continue the long-term business for the mutual benefits!

—— Peter Barber

Quality Cables and Quality Serveice from Kingtone Electronics. Hope more business on RF Coaxial Cable business in 2017!

—— Nguyen Van Khien

I'm Online Chat Now

FPLP-CL2P Fire Alarm Cable 14AWG 2 Cores Solid Shielded for Burglar Alarm System

China FPLP-CL2P Fire Alarm Cable 14AWG 2 Cores Solid Shielded  for Burglar Alarm System supplier
FPLP-CL2P Fire Alarm Cable 14AWG 2 Cores Solid Shielded  for Burglar Alarm System supplier FPLP-CL2P Fire Alarm Cable 14AWG 2 Cores Solid Shielded  for Burglar Alarm System supplier FPLP-CL2P Fire Alarm Cable 14AWG 2 Cores Solid Shielded  for Burglar Alarm System supplier

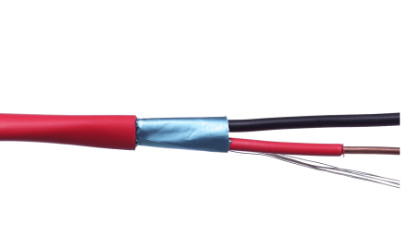

Large Image :  FPLP-CL2P Fire Alarm Cable 14AWG 2 Cores Solid Shielded for Burglar Alarm System

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Fire Alarm Cable 14AWG FPLP

Payment & Shipping Terms:

Minimum Order Quantity: 10 KM
Packaging Details: 500FT, 1000FT, Wooden Spool, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Solid Bare Copper Insulation: FPLP-Rated PVC
Shield: Aluminum / Mylar Jacket: FPLP-Rated PVC
Color: Red Package: 500FT, 1000FT, Wooden Spool, Carton





FPLP-CL2P Fire Alarm Cable 14AWG 2 Cores Solid Shielded for Burglar Alarm System





Quick Details

  • Fire Alarm Cable
  • FPLP 14AWG 2 Cores
  • Solid Bare Copper Conductor
  • Unshielded types: 4C
  • Shielded types: 2C / 4C
  • Plenum-Rated PVC Insulation
  • Plenum-Rated PVC Jacket
  • 500FT, 1000FT, Wooden Spool, Carton
  • Power Limited Fire Alarm System
  • MOQ: 10 KM



Description



KINGTONE ELECTRONICS is the leading manufacturer of fire alarm system cables for the fire protection industry. Our innovative product line includes all power-limited cables for use in the NEC Article 760.

NATIONAL ELECTRIC CODE (NEC) ARTICLE 760: NEC Article 760 covers the installation of wiring and equipment of fire alarm systems,including all circutis controlled  and powered by the fire alarm system.
These systems are defined in the NEC as " The portion of wiring system between the load side of the overcurrent devices or the power-limited supply and the connected equipment of all circuits powered
and controlled by the fire alarm system."

Type FPLP-FPLP power-limited fire alarm cable is listed by the NEC as being suitable for usein ducts,
plenums and other space used for enviromental air. All FPLP cable are listed as having adequate
fire resistant and low-smoke producing characteristics and must pass both UL 1424
and UL stiener tunnel test 910




KT1429 Fire Alarm Cables 14 AWG FPLP-CL2P PVC Insulation Plenum-Rated PVC Jacket
Application
Indoor for:
Audio Circuits
Control Circuits
Initiating Circuits
Notification Circuits

Properties
Temperature Rating:    '-20 to 75℃
Operating Voltage:       300 Volts max.
Flame Rating:              UL 910,NFPA 262,C(UL) FT6
Insulation & Jacket:      Plenum PVC

Unshielded types
Conductors NOM.THICKNESS(MM) Nominal0.D.  Capacitance Impedance DC Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
4 14 AWG 0.007" 0.016" 0.246" 32 59 2.5
Shielded types
Conductors NOM.THICKNESS(MM) Nominal0.D.  Capacitance Impedance DC Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
2 14 AWG 0.010" 0.016" 0.208" 69 30 2.5
4 14 AWG 0.010" 0.016" 0.247" 69 30 2.5
  Drain Wire     18 AWG Solid Tinned-Copper
  Shield     0.001" thick Aluminum/Mylar
Color
Number Description
2 Blk,Red
4 Blk,Red,Ylw,Grn
Order Informations:
Print KINGTONE KT1429 ×C14 E×××××××(UL) FPLP OR CL2P C(UL)US FT6
SUN RES(ROHS) ××××FT
DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9
Packing 1000FT/Pull Box, 1000FT/Spool, Pallet





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and KINGTONE.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery



FPLP-CL2P Fire Alarm Cable 14AWG 2 Cores Solid Shielded  for Burglar Alarm System
