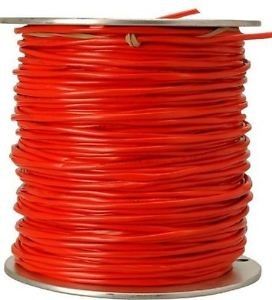

12AWG Shielded FPLR-CL2R Fire Alarm Cable Riser-Rated PVC for Control Circuits

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Fire Alarm Cable 12AWG FPLR
Minimum Order Quantity: 20 KM
Packaging Details: 500FT, 1000FT, Wooden Spool, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Solid Bare Copper Insulation: Riser-Rated PVC
Shield: Aluminum / Mylar Jacket: Riser-Rated PVC
Color: Red Package: 500FT, 1000FT, Wooden Spool, Carton
High Light:

fire proof cable

,

fire alarm system cable


Product Description







12AWG Shielded FPLR-CL2R Fire Alarm Cable Riser-Rated PVC for Control Circuits







Quick Details



  • Fire Alarm Cable
  • FPLR 12AWG 2 Cores
  • Solid Bare Copper Conductor
  • Unshielded types: 2C
  • Shielded types: 2C
  • RISER-Rated PVC Insulation
  • RISER-Rated PVC Jacket
  • 500FT, 1000FT, Wooden Spool, Carton
  • Power Limited Fire Alarm Systems
  • MOQ: 20 KM





Description



Zion communication ELECTRONICS is the leading manufacturer of fire alarm system cables for the fire protection industry. Our innovative product line includes all power-limited cables for use in the NEC Article 760.

NATIONAL ELECTRIC CODE (NEC) ARTICLE 760: NEC Article 760 covers the installation of wiring and equipment of fire alarm systems,including all circutis controlled  and powered by the fire alarm system.
These systems are defined in the NEC as " The portion of wiring system between the load side of the overcurrent devices or the power-limited supply and the connected equipment of all circuits powered
and controlled by the fire alarm system."

Type FPLR- FPLR power-limited fire alarm riser cable is listed as being suitable for use in a vertical run
in a shaft or from floor to floor.All FPLR cables are listed as having fire-resistantcharacteristics capable of preventing fire from traveling from floor to floor.Riser cables must pass both UL test 1424
and the Vertical riser test UL 1666.


KT1425 Fire Alarm Cable 12AWG FPLR-CL2R PVC Insulation Riser-Rated PVC Jacket
Application
Indoor for:
Audio Circuits
Control Circuits
Initiating Circuits
Notification Circuits

Properties
Temperature Rating:    '-20 to 75℃
Operating Voltage:       300 Volts max.
Flame Rating:              UL 1666(Riser),C(UL)FT4
Insulation & Jacket:      PVC
Shielded types
Conductors NOM.THICKNESS(MM) Nominal0.D.  Capacitance Impedance DC Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
2 12 AWG 0.010" 0.017" 0.214" 44 38 1.65

  Drain Wire     18 AWG Solid Tinned-Copper
  Shield     0.001" thick Aluminum/Mylar

Color
Number Description
2 Blk,Red

Order Informations:
Print

Zion communication KT1425 ×C12 E×××××××(UL)

FPLR OR CL2R SUN RES(ROHS) ××××FT
DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9

Packing 500FT, 1000FT, Wooden Spool, Carton, Pallet





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery



12AWG Shielded FPLR-CL2R Fire Alarm Cable Riser-Rated PVC for Control Circuits 0
