UL CMR Rated PVC 16 AWG 2 Cores Audio Speaker Cable Stranded OFC Conductor

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: Audio Speaker Cable 16 AWG 2 Cores
Minimum Order Quantity: 20 KM
Packaging Details: 152M, 305M, Pull Box, Pallet
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Stranded Bare Copper Insulation: CMR Rated PVC
Rip-cord: Yes Jacket: CMR Rated PVC
Color: Yellow, White, Gray, Purple Package: 152M, 305M, Pull Box, Pallet
High Light:

stereo speaker cables

,

outdoor speaker cable


Product Description

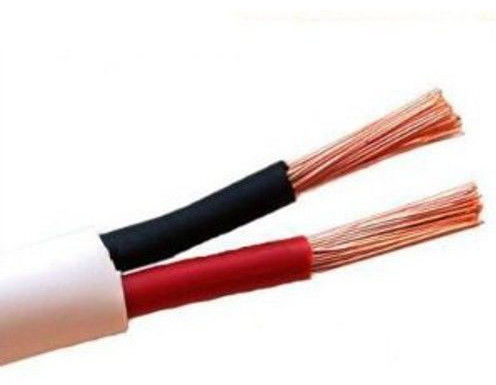

UL CMR Rated PVC 16 AWG 2 Cores Audio Speaker Cable Stranded OFC Conductor





Quick Detail:



  • Audio Speaker Cable
  • 16 AWG Stranded Conductor (19×29)
  • 2 Cores Conductor
  • Bare Copper Conductor
  • PVC, UL CMR Rated
  • 152M, 305M, Pull Box, Pallet





Description:



Speaker wire is used to make the electrical connection between loudspeakers and audio amplifiers.

Modern speaker wire consists of two or more electrical conductors individually insulated by plastic

(such as PVC, PE or Teflon) or, less commonly, rubber. The two wires are electrically identical,

but are marked to identify the correct audio signal polarity. Most commonly, speaker wire

comes in the form of zip cord.



The effect of speaker wire upon the signal it carries has been a much-debated topic in the

audiophile and high fidelity worlds. The accuracy of many advertising claims on these points

has been disputed by expert engineers who emphasize that simple electrical resistance is

by far the most important characteristic of speaker wire.



Zion communication using best raw material and best worker to produce Speaker wire to meet high

performance in practical application.Because of good managing methods, Zion communication’S

price of Speaker wire is not high although our quality is really high.







KT1603 Audio Speaker Cable 16AWG 2C Stranded Bare Copper PVC CMR (UL)
Construction Parameters:
Conductor Stranded 16AWG  (19×29) Bare Copper
No. of Conductor 2
Nom. Insulation Thickness 0.010"/0.25mm PVC  CMR
Nom. Jacket Thickness 0.017"/0.43mm PVC  CMR
Overall Cable Diameter 0.182"/4.62mm PVC  CMR
Approximate Cable Weight 24.4 Lbs/1000ft
Flame Rating UL 1666 Riser Flame Test

Electrical Characteristics:
Nom. D.C. R. Resistance @ 20°: 4.4 ohms per 1000ft
Temperature Rating -20° C to 60° C
Operating Voltage 300 V RMS Max
Capacitance Between
Conductors@1KHz
33 pF/ft Nom.
Insulation Colors Black, Red
Jacket Colors Grey, Black, Brown, White
RoHS YES

Order Informations:
  Marking Zion communication KT1603 AUDIO CABLE 16AWG 2C Stranded OFC PVC CMR (UL) Speaker Cable XXX M/FT
  Package 500FT/Pull Box, 1000FT/Wooden Spool, Pallet
  Delivery time Normally 15 days after received the deposit.






Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery





UL CMR Rated PVC 16 AWG 2 Cores Audio Speaker Cable Stranded OFC Conductor 0
