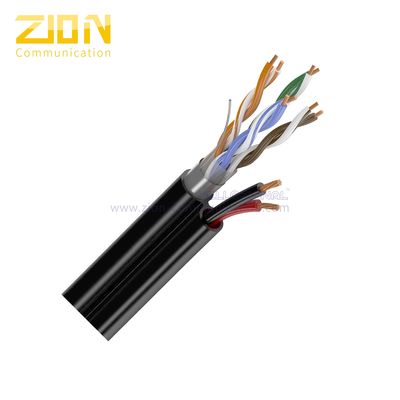

Siamese Network Cable FTP CAT5E 24AWG Solid Copper with 2x0.75mm2 CCA Power Wire

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE, RoHS, VDE, UL
Model Number: Network Cable FTP CAT5E+Power
Minimum Order Quantity: 10 KM
Packaging Details: 305M, 1000FT, Wooden Reel, Pallet
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Solid Bare Copper Insulation: HDPE
Shield: PET / AL-Foil Jacket: UV-PE
Power: Stranded CCA Wire Jakcet: UV-PE
Color: Black Package: 305M, 1000FT, Wooden Reel, Pallet
High Light:

cat5e networking cable

,

outdoor camera cable


Product Description





Siamese Network Cable FTP CAT5E 24AWG Solid Copper with 2x0.75mm2 CCA Power





Quick Detail:



  • Security Camera Cable
  • FTP CAT5E + Power
  • 24 AWG, 4 Pairs
  • Soild Bare Copper Conductor
  • Stranded CCA Power Wire
  • PE Jacket for Outdoor
  • Siamese, Figure 8
  • Complied to ANSI/TIA/EIA-568, ISO/IEC 11801
  • 305M, 1000FT, Wooden Reel, Pallet
  • MOQ: 10 KM





Description:



Zion communication NETCONNECT Enhanced Category 5 (Cat5e) F/UTP cables exceed TIA/EIA-568-B.2,

ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173

performance requirements, providing extra headroom for a more robust cabling system.



They comply with all of the performance requirements for current and proposed applications

 such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,

100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and

analog and digital voice (VoIP) and VoIP Camera application.



The cable is available in white, gray, blue and yellow, and packaged as wooden reels,

reelin- box and pull box.



Zion communication using best raw material and best worker to produce FTP CAT 5e to meet

high performance in practical application.



Because of good managing methods, Zion communication’S price of FTP CAT 5e is not high

although our quality is really high.

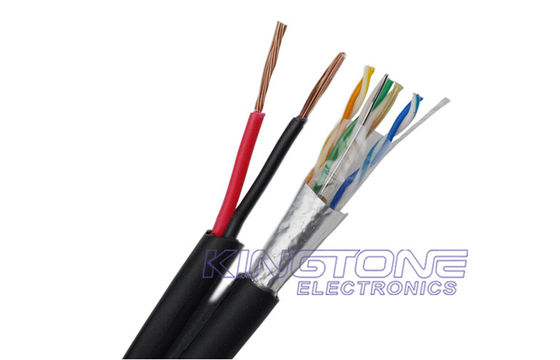

KT0756 Siamese Network Cable FTP CAT5E 24AWG Copper with 2x0.75mm2 CCA Wire
Construction Parameters:
  Description 4 Pair Cat5E Type + 2C-0.75 FIG.8 Construction
  Video and Control Pairs
  Inner Conductor Solid Bare Copper
  Diameter 0.50mm / 24AWG
  Insulation Material 0.92mm HDPE
  Number of Conductors 8(4 Pairs)
  Drain wire 24AWG TCCA Wire
  Shield PET / AL-Foil
  Power Conductors
  Inner Conductor Stranded Copper Clad Aluminum WIre
  Diameter 16×0.25mm
  Insulation Material 2.00mm PVC
  Number of Conductors 2
  Shield None

Electrical Characteristics:
  Video and Control Pairs
  Temperature Rating -40℃ to 70℃
  Operating Voltage 300 V RMS
  Max.Capacitance @1 KHz 45.9 pf/100m
  Nom.Impedance 100 Ohms
  Nom.Velocity of Propagation 66%
  DC Resistance per Cond.  26 Ohms/1M' Nom  @ 20℃

  Power Conductors
  Temperature Rating -40℃ to 70℃
  Operating Voltage 300 V RMS
  Max.Capacitance @1 KHz NA
  DC Resistance per Cond.
  Insulation Colors Black, Red

Overall Construction
  Jacket Type UV-PE
  Jacket Color Siamese-Black
  Nom.O.D. 5.4mm × 4.8mm

Mechanical Properties
  Max.Recommended Pull Tension 15 KGS
  Min. Bend Radius(Install) 86 mm





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery



Siamese Network Cable FTP CAT5E 24AWG Solid Copper with 2x0.75mm2 CCA Power Wire 0
