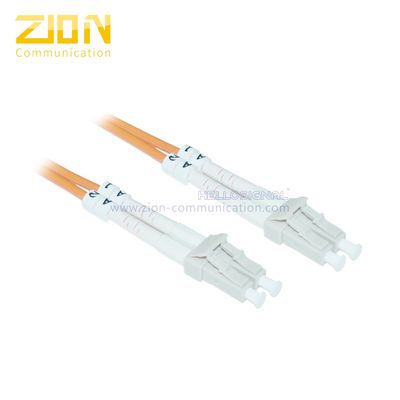

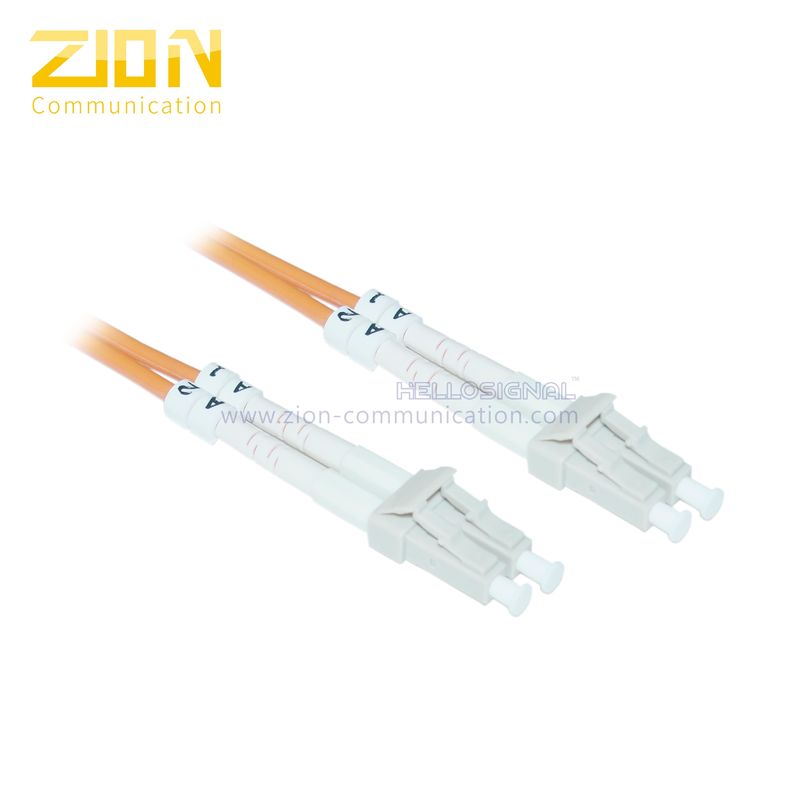

Duplex LC to LC Fiber Optic Patch Cord 62.5/125 μm Multimode Jumper with PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC to LC Duplex Multimode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Orange	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	multimode fiber optic cable , fiber optical patch cord

Product Description

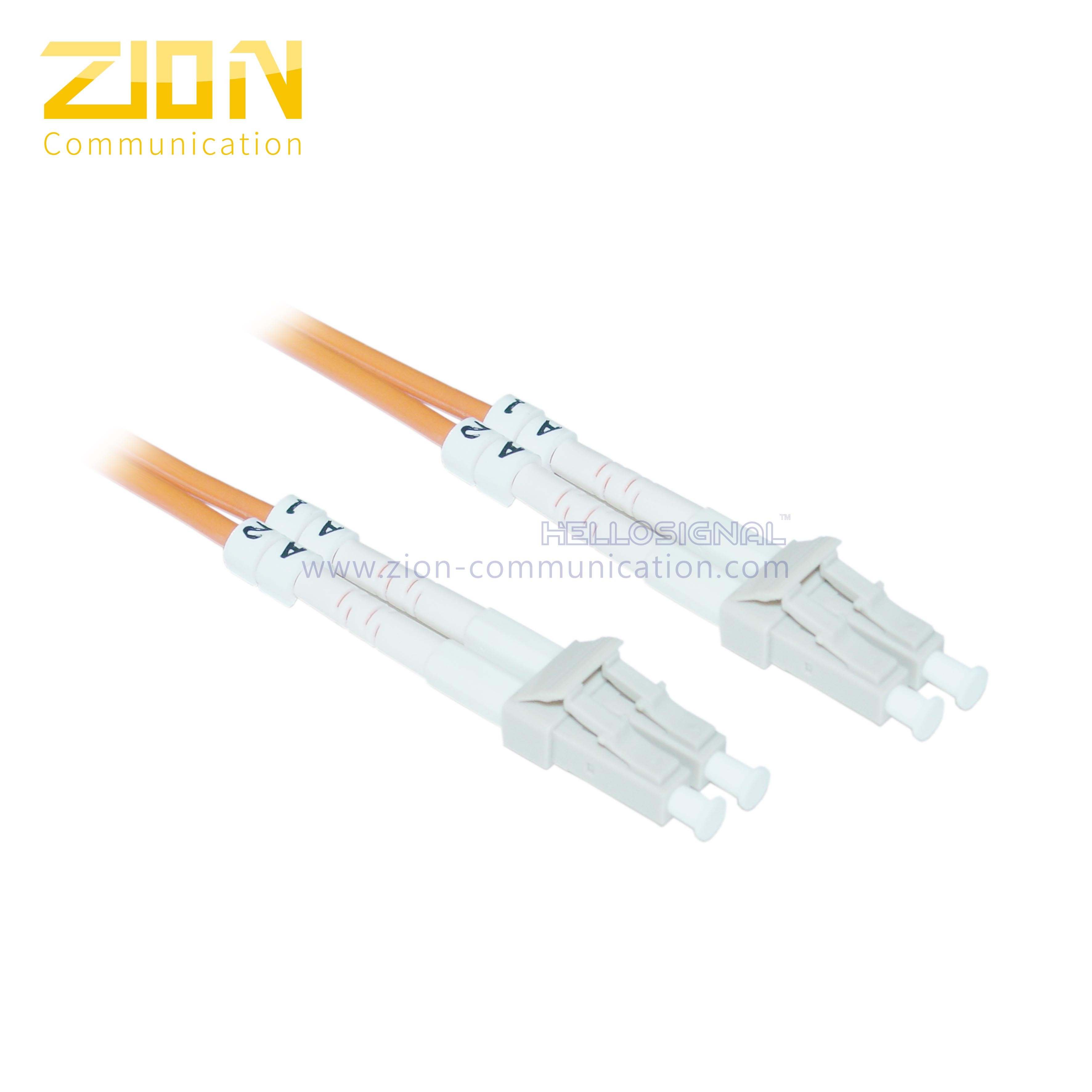

Duplex LC to LC Fiber Optic Patch Cord

62.5/125 μm Multimode Type Jumper

Product Overview

High-performance fiber optic patch cord designed for reliable telecommunications connections. This LC to LC duplex multimode jumper features excellent optical characteristics and robust construction for demanding applications.

Key Specifications

Fiber Optic Patch Cord/Jumper
LC to LC Duplex Multimode Configuration
LC/UPC Multimode Connectors
62.5/125 μm Multimode Fiber
3.00mm Outer Diameter Cable
Orange PVC Jacket Material
Certifications: ISO, CE, RoHS, UL

Technical Performance

Insertion Loss	< 0.5 dB
Fiber Extension	-0.05μm < H < + 0.05μm
Ferrule End-face Radius	10 < R < 30mm
Apex Offset	< 50 μm
Insertion Loss Increase (500 matings)	0.2 dB Max
Operation Temperature	-20℃ to +70 ℃
Storage Temperature	-20℃ to +80 ℃
Humidity (non-condensing)	95% RH

Product Features

Low insertion loss for optimal signal transmission
High return loss performance
Excellent repeatability and interchangeability
Superior environmental adaptability
Reliable connection between optical transmitters, receivers, and terminal boxes

Quality Assurance

Our comprehensive quality control process ensures exceptional product reliability:

Incoming material inspection by QC team
Strict manufacturing process control
Regular employee training programs
Detailed work instructions at each station
5S system implementation
Regular machine maintenance procedures
Final product inspection and testing
