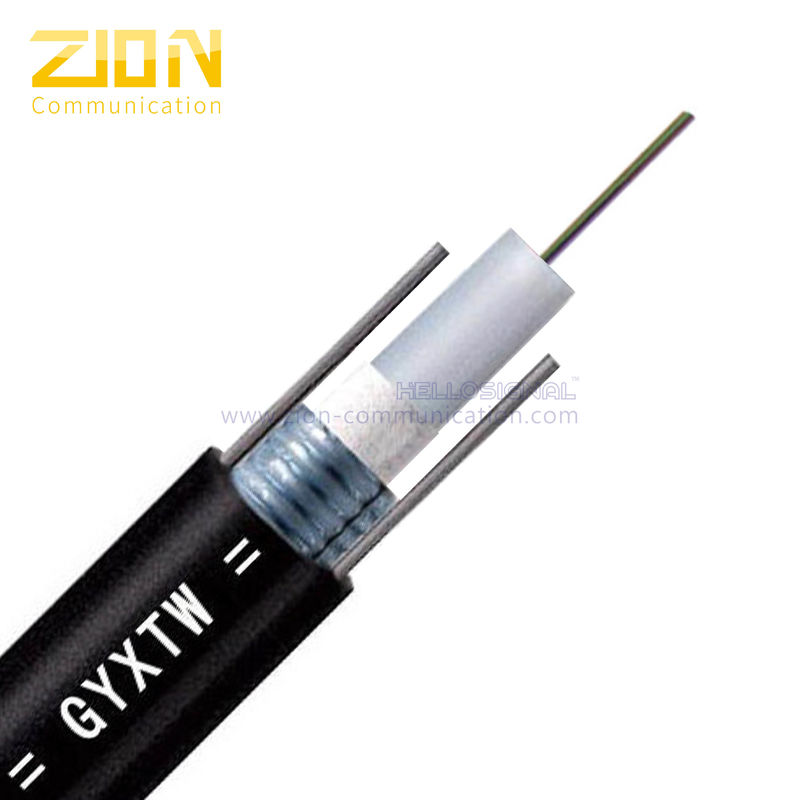

Unitube Light-armoured Fiber Optic Cable GYXTW for Duct or Aerial Application

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: CE, ROHS, VDE, UL
Model Number: Fiber Optic Cable GYXTW
Minimum Order Quantity: 10 KM
Packaging Details: 1000M or 2000M / Wooden Drum
Delivery Time: Normally 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detail Information
Fiber Unit: YOFC, G.652D Filling: Tube Filling Compound
Tube: Loose Tube Waterproof: Water-blocking Material
Armoured: PSP Strength Member: Steel Wire
Sheath: PE Color: Black
Package: 1000M Or 2000M / Wooden Drum

Product Description





Unitube Light-armoured Fiber Optic Cable GYXTW for Duct or Aerial Application





Quick Detail:



  •  Unitube Light-armoured Cable
  •  GYXTW Fiber Optic Cable
  •  G.652D or G.657A
  •  Cable Diameter 2~24 Core: 13.5mm
  •  Tensile Strength Long/Short Term: 1000N/3000N
  •  Crush Resistance Long/Short Term: 1000N/3000N/100mm
  •  Bending Radius Static/Dynamic: 10xD/20xD
  •  GYXTW cable complies with standard YD/T 769-2003.





Description:



The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. the cable is completed with a PE outer sheath.





Applications:

  • Adopted to Outdoor distribution.
  • Suitable for aerial duct and buried method.
  • Long distance and local area network communication.







KT3012 Unitube Light-armoured Fiber Optic Cable GYXTW for Duct or Aerial Application





Description&Standards :



The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled

with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as

 a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a

compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath,

which is filled with jelly to protect it from water ingress. A layer of waterblocking material is applied around

 the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. the

 cable is completed with a PE outer sheath.

GYXTW cable complies with standard YD/T 769-2003.
Characteristics:
Good mechanical and temperature performance;
High strength looes tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection fiber;
Crush resistance and flexibility;
The following measures are taken to ensure the cable watertight:
(1)High strength Loose Tube that is hydrolysis resistant;
(2)PSP enhancing moisture-proof;
(3)Two parallel steel wires ensure tensile strength;
(4)PSP enhancing moisture-proof;
(5)Small diameter, light weight and friendly installation.

Technical Parameters:
Cable Type Cable Diameter
(mm)
Cable Weight
    (kg/km)
Tensile Strength
Long/Short Term
         (N)

Crush

Resistance
Long/Short

Term
(N/100mm)

Bending

Radius
Static/

Dynamic
(mm)

GYXTW 2~24 8.00 60 600/1500 300/1000 10D/20D

 Optical fiber Characteristics:
       G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)
@850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36
 dB/km
≤0.40
dB/km

@1550nm ≤0.22
 dB/km
≤0.23
dB/km

Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
  @1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015 NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Storage/Operating Temperature : -40℃ to + 70℃
Order Informations:
  Marking

Zion communication KT3012 GYXTW XXX M

(or Per customer's request)

  Package

1000M or 2000M / Wooden Drum (or Per customer's request)

  Delivery time Normally 25 days after received the deposit.





Competitive Advantage:



1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

  A: Manufacturing procedure

  B: Workers trained daily/weekly/monthly

  C: Work instructions manual at each work station

  D:5S system implemented

  E: Machine maintenance procedure

C, Quality Control and Final Inspection

  The QC staff will check the material, process product and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and Zion communication

3, We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
