GYTS Stranded Loose Tube Fiber Cable with PE Sheath for Outdoor Application

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: CE, ROHS, VDE, UL
Model Number: Fiber Optic Cable GYTS
Minimum Order Quantity: 10 KM

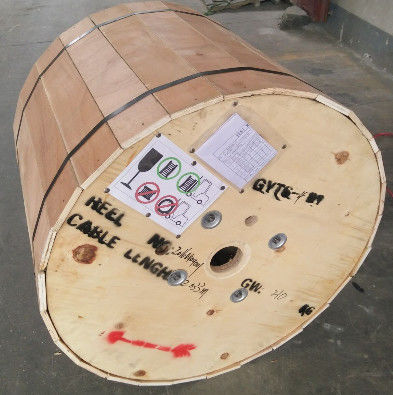

Packaging Details: 1000M or 2000M / Wooden Drum
Delivery Time: Normally 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detail Information
Fiber Unit: YOFC, G.652D Filling 1: Tube Filling Compound
Tube: Loose Tube Filling 2: Cable Filling Compound
Strength Member: Central Strength Member Armoured: PSP
Sheath: PE Color: Black
Package: 1000M Or 2000M / Wooden Drum

Product Description





GYTS Stranded Loose Tube Fiber Cable with PE Sheath for Outdoor Application





Quick Detail:



  •  Stranded Loose Tube Cable
  •  GYTS Fiber Optic Cable
  •  G.652D or G.657A
  •  Cable Diameter 2~30 core: 10.2 mm
  •  Tensile Strength Long Term: 600N
  •  Tensile Strength Short Term: 1500N
  •  Crush Resistance Long Term: 300N / 100mm
  •  Crush Resistance Short Term: 1000N / 100mm
  •  Bending Radius Static/Dynamic: 10xD / 20xD
  •  GYTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.



Description:

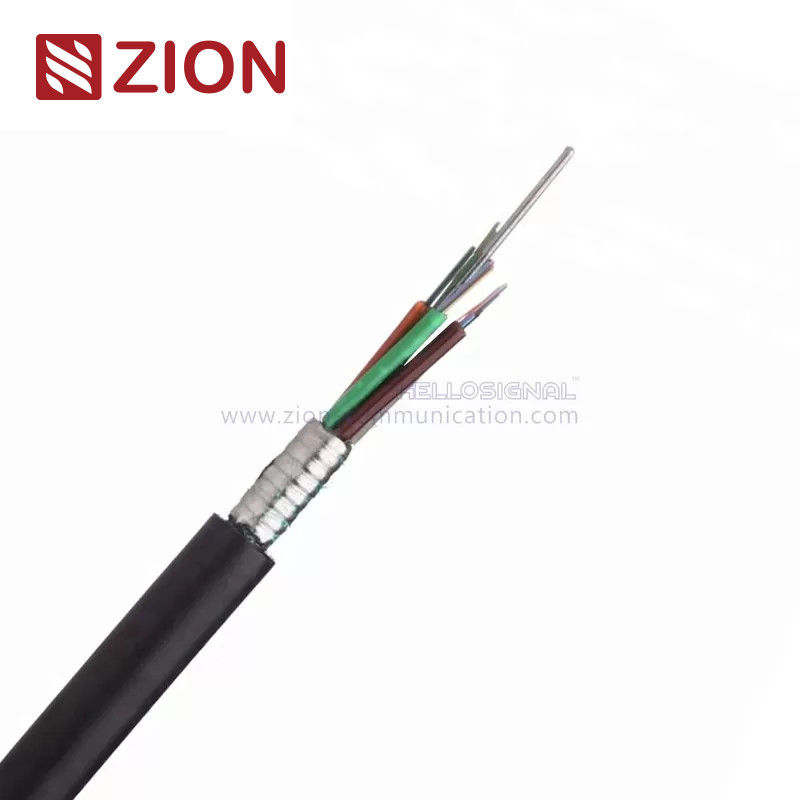

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.



Applications:

  • Adopted to Outdoor distribution.
  • Suitable for aerial duct and buried method.
  • Long distance and local area network communication.



KT3007 GYTS Stranded Loose Tube Fiber Cable with PE Sheath for Outdoor Application

Description&Standards :

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with

a water resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with

 high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded

 around the strength member into a compact and circular cable core. The PSP is longitudinally applied over

 the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed

with a PE sheath.

GYTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Characteristics:
Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection fiber;
Specially designed compact structure is good at preventing loose tubes from shrinking;
Crush resistance and flexibility;
PE sheath protects cable from ultraviolet radiation;
The following measures are taken to ensure the cable watertight:
(1)Steel wire used as the central strength member;
(2)Loose tube filling compound;
(3)100% cable core filling;
(4)PSP enhancing moisture-proof.

Technical Parameters:
Cable Type Cable Diameter
(mm)
Cable Weight
    (kg/km)
Tensile Strength
Long/Short Term
         (N)
Crush Resistance
Long/Short Term
(N/100mm)
Bending Radius
Static/Dynamic
(mm)
GYTS-2~6 10.2 116 600/1500 300/1000 10D/20D
GYTS-8~12 10.2 116 600/1500 300/1000 10D/20D
GYTS-14~18 10.2 116 600/1500 300/1000 10D/20D
GYTS-20~24 10.2 116 600/1500 300/1000 10D/20D
GYTS-26~30 10.2 116 600/1500 300/1000 10D/20D

 Optical fiber Characteristics:
     G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)
@850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36
 dB/km
≤0.40
dB/km

@1550nm ≤0.22
 dB/km
≤0.23
dB/km

Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
  @1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015 NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Storage/Operating Temperature : -40℃ to + 70℃
Order Informations:
  Marking Zion communication KT3007 GYTS XXX M (or Per customer's request)
  Package 1000M/2000M, Drum/Pallet (or Per customer's request)
  Delivery time Normally 25 days after received the deposit.







Competitive Advantage:



1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

  A: Manufacturing procedure

  B: Workers trained daily/weekly/monthly

  C: Work instructions manual at each work station

  D:5S system implemented

  E: Machine maintenance procedure

C, Quality Control and Final Inspection

  The QC staff will check the material, process product and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and Zion communication

3, We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
