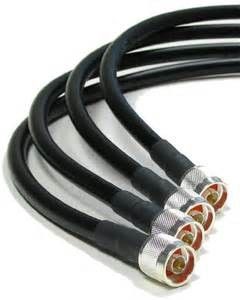

TC Braiding Low Loss 400 50 Ohm Signal Coaxial Cable for Mobile Antennas

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Signal Coaxial Cable Low Loss 400
Minimum Order Quantity: 5 KM
Packaging Details: 500M, 1000M, Wooden Drum, Pallet
Delivery Time: Normally 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detail Information
Conductor: Bare Copper Dielectric: Foamed PE
1st Shield: Bonded AL-Foil 2nd Shield: Tinned Copper Braiding
Jacket: PVC Or PE Package: 500M, 1000M, Wooden Drum, Pallet

Product Description



TC Braiding Low Loss 400 50 Ohm Signal Coaxial Cable for Mobile Antennas





Quick Detail:



  • Signal Coaxial Cable
  • Low Loss 400 Type
  • 50 Ohm Communication Cable
  • 2.74mm Bare Copper or CCA
  • Tinned Copper or CCA Braiding
  • 10.29mm PVC or PE Jacket
  • 500M, 1000M, Wooden Drum, Pallet
  • MOQ: 5KM



Description:



KT0505 Low Loss 400 Signal Coaxial Cable 50 Ohm,2.74mm Copper or CCA Conductor

is a low loss, braided coaxial cable offers similar performance compared to corrugated

copper products but with higher flexibility and simplified connectorization.

Can be used in almost any application where handling characteristics, improved shielding

and low loss is required. LMR 400 is packed in 500FT/1000FT plastic/wooden spool,

and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, Zion communication’S price of LMR 400

is not high although our quality is really high.





Applications:



Low Loss Coaxial Cable at High Frequency for ……

  1. Replacement of RG-8/9913 Air-Dielectric Type Cable.
  2. Earth Station Antenna Jumper Cable.
  3. Jumpers for Equipment Room and Antenna Connection.
  4. VLF, AM and FM Radio Broadcast Systems.
  5. Application for WLL, GPS, WiMAX, SCADA, Mobile Antennas.



KT0505 Low Loss 400 Signal Coaxial Cable 50 Ohm, 2.74mm Copper or CCA Conductor
Construction Parameters:
  Inner Conductor 2.74mm    Bare Copper
  Dielectric 7.24mm  Foamed PE
  First Shield              BONDED AL FOIL
  Second Shield Nom. 8.12mm         Tinned Copper Braid
  Jacket 10.29mm                        PVC / PE

Electrical Characteristics:
  Capacitance 77.1 pF/m
  Impedance 50 Ω
  Velocity of Propagation  0.85
  Shielding Effectiveness(>dB) 90
  Min.Bend Radius(mm) 51
  Operating Temp Range  (PVC) -25 ℃ to 70℃
  Operating Temp Range  (PE) -40 ℃ to 80℃
  RoHS YES

Attenuation(20℃):
Frequency (MHZ)             Attenuation (dB/100m) Avg.Power(KW)
30 2.2  2.91
50 2.9  2.21
150 5.0  1.28
220 6.1  1.05
450 8.9  0.72
900 12.8  0.50
1500 16.8  0.38
1800 18.6  0.34
2000 19.6  0.33
2500 22.2  0.29
5800 35.5  0.18

Order Informations:
  Marking Zion communication Low loss signal  400 COAXIAL CABLE  XXX M
  Inner Package 100M/200M/300M/500FT/1000FT
  Outer Package Carton, Color Box, Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.
  More informations  please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery





TC Braiding Low Loss 400 50 Ohm Signal Coaxial Cable for Mobile Antennas
