Quad Shield RG11 Plenum Digital Coaxial Cable 14 AWG Solid CCS 75 Ohm Impedence

Basic Information
Place of Origin: China
Brand Name: Zion communication or OEM
Certification: ISO,CE,RoHS,UL
Model Number: RG11 Coaxial Cable CMP
Minimum Order Quantity: 10 KM
Packaging Details: 305M, 1000FT, Wooden Reel, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: CCS Dielectric: Foamed FEP
Shield 1: AL-Foil Shield 2: Aluminum Braiding
Jacket: PVC Color: Black Or White
Package: 305M, 1000FT, Wooden Reel, Carton
High Light:

quad shielded coaxial cable

,

rg11 coax cable


Product Description





Quad Shield RG11 Plenum Digital Coaxial Cable 14 AWG Solid CCS 75 Ohm Impedence



Visit our official website to learn more about CATV Coaxial Cable

https://www.zion-communication.com/catv-coaxial-cable-products-catalog.html





Quick Detail:



  • RG11 Quad Shield Coaxial Cable
  • 14 AWG CCS Conductor
  • 60% AL Braiding
  • 40% AL Braiding
  • Foamed FEP Insulation
  • Plenum CMP Rated PVC
  • 75 Ohm Cable
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 305M, 1000FT, Wooden Reel, Carton



Description:



KT2118 RG11 Quad Shield Coaxial Cable CCS Conductor UL CMP Rated PVC

 is a specific type of CATV coaxial cable , RG11Produced by Zion communication) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG11 has a characteristic

impedance of 75 ohms. Zion communication using best raw material and best worker to produce

RG11 to meet high performance in practical application. RG11 is packed in 500FT/1000FT

plastic/wooden spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, Zion communication’S price of RG11 is not high although

our quality is really high.





Applications:



Suitable for RF Signal Transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital Video

■ Antennas





KT2118 RG11 Quad-Shield Coaxial Cable CCS Conductor AL Braiding CMP Rated PVC 1000ft

Construction Parameters:
  Inner Conductor 0.064"/1.625mm/14AWG  Copper Clad Steel
  Dielectric 0.280"/7.11mm            Foamed PE
  Shield 1 0.312"/7.92mm  Bonded Aluminum Polyproylene
  Shield 2 60% coverage   Aluminum braid wire
  Shield 3 (Non-bonded) Aluminum Laminated Tape
  Shield 4 40% coverage  Aluminum braid wire
  Jacket 0.379"±0.008"/9.65±0.20mm  PVC CMP (UL)
  Jacket Thickness 0.018"/0.46mm
  Application For Use in Longer CATV Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be <  36.1 Ω/km  <  11.0 Ω/1000ft
  Capacitance 52.5 ±3 pF/m    16.0 ±1 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz: > 20dB
  Velocity of Propagation  84% Nom.
  Sparker Test (VAC) 5000V

Attenuation(20℃):
Frequency (MHZ)             Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
1 0.15  0.49
10 0.45  1.47
50 0.90  2.95
100 1.28  4.20
200 1.85  6.07
400 2.75  9.02
700 3.92  12.86
900 4.72  15.49
1000 5.04  16.54
1450 6.67  21.88
1800 7.71  25.30
2200 8.80  28.85
3000 11.00  36.06

Mechanical and Environmental Properties
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 75 ℃
  Cable diamensions 0.379''±0.008''/9.65±0.20 mm  PVC

Order Informations:
  Marking

Zion communication KT2118 RG11 60% Bonded 40% Non.Bonded PVC CMP

CATV COAXIAL CABLE ×××M/FT

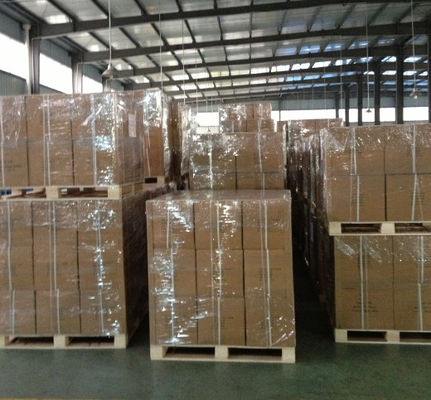

  Package 500FT/Pull Box, 1000FT/Wooden Spool, Pallet
  Delivery time Normally 25 days after received the deposit.







Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
