Non-Plenum RG11 with Steel Messenger Coaxial Cable 60% and 40% Aluminum Braiding

China Non-Plenum RG11 with Steel Messenger Coaxial Cable 60% and 40% Aluminum Braiding supplier

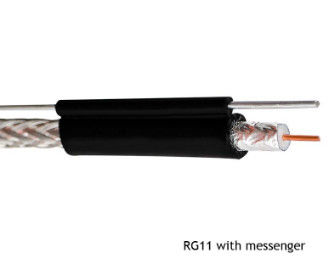

Large Image :  Non-Plenum RG11 with Steel Messenger Coaxial Cable 60% and 40% Aluminum Braiding

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: RG11 Coaxial Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 305M, 1000FT, Wooden Reel, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 3000KM / Month
Detailed Product Description
Conductor: CCS Dielectric: Foamed PE
Shield 1: AL-Foil Shield 2: Aluminum Braid
Jacket: CM Rated PVC Color: Black Or White
Package: 305M, 1000FT, Wooden Reel, Carton





Non-Plenum RG11 with Steel Messenger Coaxial Cable 60% and 40% Aluminum Braid





Quick Detail:

  • RG11 Quad-Shield Coaxial Cable
  • 14 AWG CCS Conductor
  • 60% AL Braiding
  • 40% AL Braiding
  • Foamed PE Insulation
  • Zinned Steel Messenger
  • UL CM Rated PVC
  • 75 Ohm Impedence
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 305M, 1000FT, Wooden Reel, Carton



Description:



KT2107 CATV RG11 Quad-Shield Coaxial Cable with 60% and 40% AL Braid PVC with Messenger

 is a specific type of CATV coaxial cable , RG11Produced by KINGTONE) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG11 has a characteristic

impedance of 75 ohms. KINGTONE using best raw material and best worker to produce

RG11 to meet high performance in practical application. RG11 is packed in 500FT/1000FT

plastic/wooden spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, KINGTONE’S price of RG11 is not high although

our quality is really high.





Applications:



Suitable for RF Signal Transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital Video

■ Antennas





KT2107 CATV RG11 Quad-Shield Coaxial Cable with 60% and 40% AL Braid PVC with Messenger
Construction Parameters:
  Inner Conductor 0.064"/1.63mm/14AWG  Copper Clad Steel
  Dielectric 0.280"/7.11mm            Foamed PE
  Shield 1 0.287"/7.29mm  Bonded Aluminum Polyproylene
  Shield 2 60% coverage   Aluminum braid wire
  Shield 3 (Non-bonded) Aluminum Laminated Tape
  Shield 4 40% coverage  Aluminum braid wire
  Jacket 0.407"±0.006"/10.34±0.15mm  PVC
  Jacket Thickness 0.037"/0.94mm
  Messenger 0.083"/2.11mm
  Minimum Breaking Strength 487lbs./221kg
  Application For Use in Longer CATV Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be <  87 Ω/km  <  26.53 Ω/1000ft
  Capacitance 52 ±3 pF/m    15.85 ±1 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz: > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency (MHZ)             Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.38  1.25
55 0.96  3.15
83 1.18  3.87
187 1.75  5.74
211 1.90  6.23
250 2.05  6.72
300 2.25  7.38
350 2.42  7.94
400 2.60  8.53
450 2.75  9.02
500 2.90  9.51
550 3.04  9.97
600 3.18  10.43
750 3.65  11.97
865 3.98  13.05
1000 4.35  14.27

Mechanical and Environmental Properties
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 60 ℃
  Cable diamensions 0.41''±0.006''/10.39±0.15 mm  PVC

Order Informations:
  Marking

KINGTONE KT2107 RG11 60% & 40% PVC Messenger

CATV COAXIAL CABLE ××× M/FT

  Package 500FT/Pull Box, 1000FT/Wooden Spool, Pallet
  Delivery time Normally 25 days after received the deposit.







Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and KINGTONE.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
