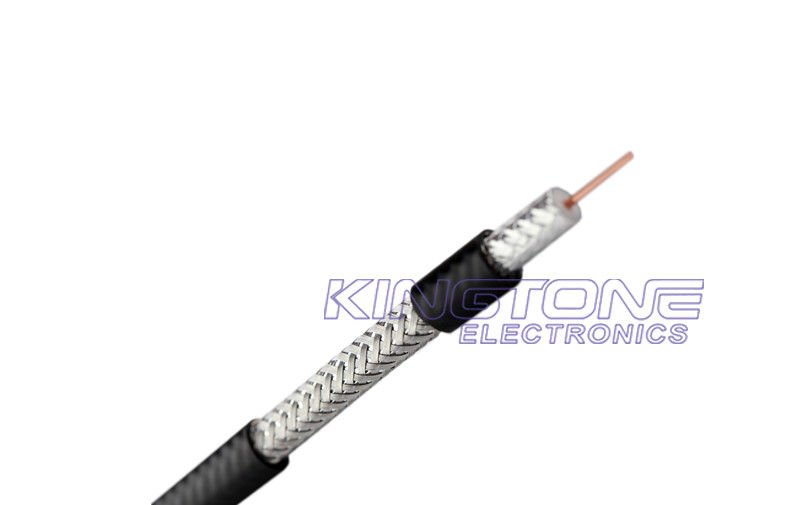

Economy RG6 CATV Coaxial Cable 18 AWG CCS 40% AL Braid for Satellite TV

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: RG6 CATV Coaxial Cable
Minimum Order Quantity: 30 KM
Packaging Details: 305M, 1000FT, Wooden Reel, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 3000KM / Month
Detail Information
Conductor: CCS Dielectric: Foamed PE
Shield 1: AL-Foil Shield 2: Aluminum Braiding
Jacket: PVC Color: Black Or White
Package: 305M, 1000FT, Wooden Reel, Carton
High Light:

quad shielded coaxial cable

,

rg6 quad shield coaxial cable


Product Description





Economy RG6 CATV Cable 18 AWG CCS 40% AL Braid PVC Jacket for Satellite TV



Visit our official website to learn more about CATV Coaxial Cable

https://www.zion-communication.com/catv-coaxial-cable-products-catalog.html





Quick Detail:



  • RG6 CATV Coaxial Cable
  • 18AWG CCS Conductor
  • Foamed PE Insulation
  • 40% Aluminum Braiding
  • 75 Ohms
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 305M, 1000FT Wooden Reel, Carton



Description:



KT0600 RG6 CATV COAXIAL CABLE 18AWG CCS Bonded 40% AL Braiding PVC

 is a specific type of CATV coaxial cable , RG 6(Produced by Zion communication) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG 6 has a  characteristic

impedance of 75 ohms. Zion communication using best raw material and best worker to produce

RG 6 to meet high performance in practical application. RG 6 is packed in 500FT/1000FT

plastic/wooden spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, Zion communication’s price of RG 6 is not high although

our quality is really high.





Applications:



Suitable for RF Signal Transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital video

■ Antennas





KT0600 RG6 CATV COAXIAL CABLE 18AWG CCS Bonded AL-Foil 40% AL Braiding PVC
Construction Parameters:
  Inner Conductor 0.040"/1.02mm/18AWG  Copper Clad Steel
  Dielectric 0.180"/4.57mm Foamed PE            (Gas Expanded Polyethylene)
  Shield 1 0.187"/4.75mm  Bonded Aluminum Polyproylene
  Shield 2 40% coverage   Aluminum braid wire
  Jacket 0.268"±0.006"/6.81±0.15mm  PVC
  Jacket Thickness 0.030"/0.76mm
  Application For Use in Longer CATV  Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be  <  87 Ω/km ; < 26.6Ω/1000ft
  Capacitance 52 ±3 pF/m             15.9 ±0.9 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz:  > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency
(MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
5 0.58  1.90
55 1.60  5.25
83 1.95  6.40
187 2.85  9.35
211 3.05  10.00
250 3.30  10.82
300 3.55  11.64
350 3.85  12.63
400 4.15  13.61
450 4.40  14.43
500 4.66  15.29
550 4.90  16.08
600 5.10  16.73
750 5.65  18.54
865 6.10  20.01
1000 6.55  21.49

Mechanical and Envrionmental Properties
  Cable bend radius 10 times the cable diameter
  Operating Temp Range   -20 ℃ to 60℃
  Cable diamensions 0.268"±0.006"/6.81±0.15mm PVC

Order Informations:
  Marking

Zion communication KT0600 RG6 40% Bonded

PVC CATV COAXIAL CABLE ×××M/FT

  Package 100m,200m,300m,500FT,1000FT
  Delivery time Normally 25 days after received the deposit.
  More informations please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery

Economy RG6 CATV Coaxial Cable 18 AWG CCS 40% AL Braid for Satellite TV 0
