Bare Copper RG59 CATV Coaxial Cable with Solid PE 95% CCA Braid PVC Jacket

China Bare Copper RG59 CATV Coaxial Cable with Solid PE 95% CCA Braid PVC Jacket supplier

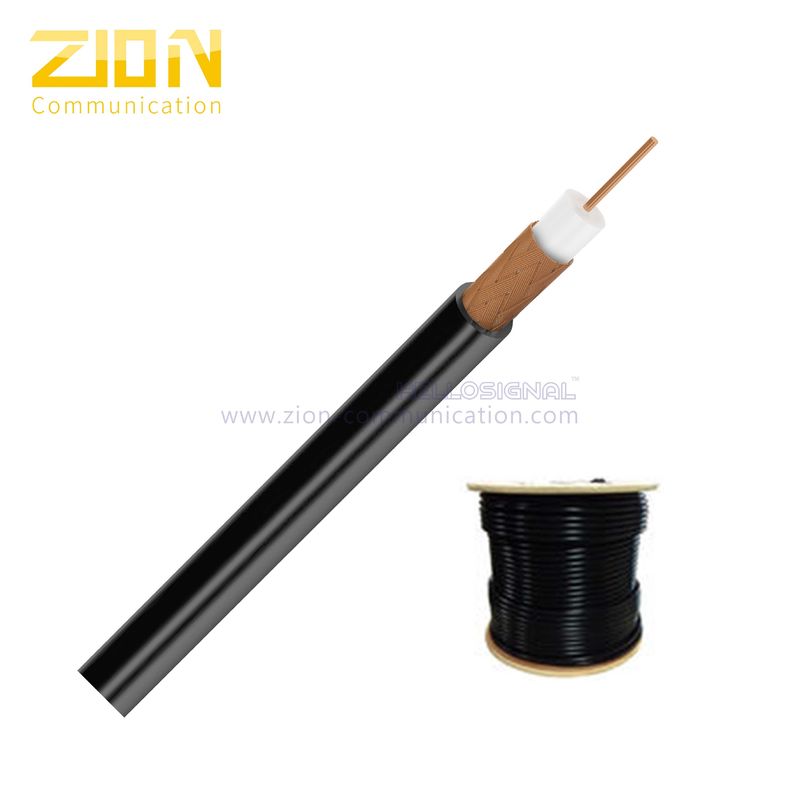

Large Image :  Bare Copper RG59 CATV Coaxial Cable with Solid PE 95% CCA Braid PVC Jacket

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: ISO, UL, CE, RoHS
Model Number: RG59 CATV Coaxial Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 305M, 1000FT, Wooden Reel, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 3000KM / Month
Detailed Product Description
Conductor: Bare Copper Insulation: Solid PE
Shield: CCA Braiding Jacket: PVC
Color: Black Package: 305M, 1000FT, Wooden Reel, Carton





Bare Copper RG59 CATV Coaxial Cable with Solid PE 95% CCA Braid PVC Jacket





Quick Detail:



  • RG59 CATV Coaxial Cable
  • 20 AWG Copper Conductor
  • 95% CCA Braiding
  • Foamed PE Insulation
  • Quality PVC Jacket
  • 75 Ohms
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 305M, 1000FT, Wooden Reel, Carton



Description:



KT2042 RG59 CATV COAXIAL CABLE 20 AWG Bare Copper 95% CCA Braid PVC Jacket

 is a specific type of CATV coaxial cable , RG59(Produced by KINGTONE) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG59 has a characteristic

impedance of 75 ohms. KINGTONE using best raw material and best worker to produce

RG59 to meet high performance in practical application. RG59 is packed in 500FT/1000FT

plastic/wooden spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, KINGTONE’S price of RG59 is not high although

our quality is really high.





Applications:



Suitable for RF signal transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital video

■ Antennas





KT2042 RG59 CATV Coaxial Cable 20 AWG Bare Copper 95% CCA Braid PVC Jacket
Construction Parameters:
  Inner Conductor 0.64mm/20AWG  Bare Copper
  Dielectric 3.66mm            Foamed PE
  Shield 1 100% Overlapped Bonded Aluminum Polyproylene
  Shield 2 95% coverage   Copper Clad Aluminum Braid
  Jacket 6.00±0.10mm  PVC
  Jacket Thickness 0.60mm
  Application For Use in Longer CATV Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be <  87 Ω/km  <  26.53 Ω/1000ft
  Capacitance 52 ±3 pF/m    15.85 ±1 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz: > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency (MHZ)             Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.38  1.25
55 0.96  3.15
83 1.18  3.87
187 1.75  5.74
211 1.90  6.23
250 2.05  6.72
300 2.25  7.38
350 2.42  7.94
400 2.60  8.53
450 2.75  9.02
500 2.90  9.51
550 3.04  9.97
600 3.18  10.43
750 3.65  11.97
865 3.98  13.05
1000 4.35  14.27

Mechanical and Environmental Properties
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 60 ℃
  Cable diamensions 6.00±0.10 mm PVC

Order Informations:
  Marking

KINGTONE KT2042 RG59 Bare Copper 95% CCA

CATV COAXIAL CABLE ×××M/FT

  Package 500FT/Pull Box, 1000FT/Wooden Spool, Pallet
  Delivery time Normally 25 days after received the deposit.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and KINGTONE.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
