| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE,RoHS, VDE,UL,CUL,LPCB |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | Carton |
| Delivery Time: | Normally 15 days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 10*20’GP/Month |
| Copper In Volume: | 8 ~ 12 | Copper In Mass %: | 27 |
|---|---|---|---|
| Length Comparison: | 2.65:1 | Density % (g/cm3): | 3.32 |
| Max. DC Resistivity Ω.mm2/m(20℃): | 0.02743 | ||
| High Light: | Bare TC Wire,Electronic Components Tinned Copper Wire,Circuit Boards Tinned Copper Wire |
||

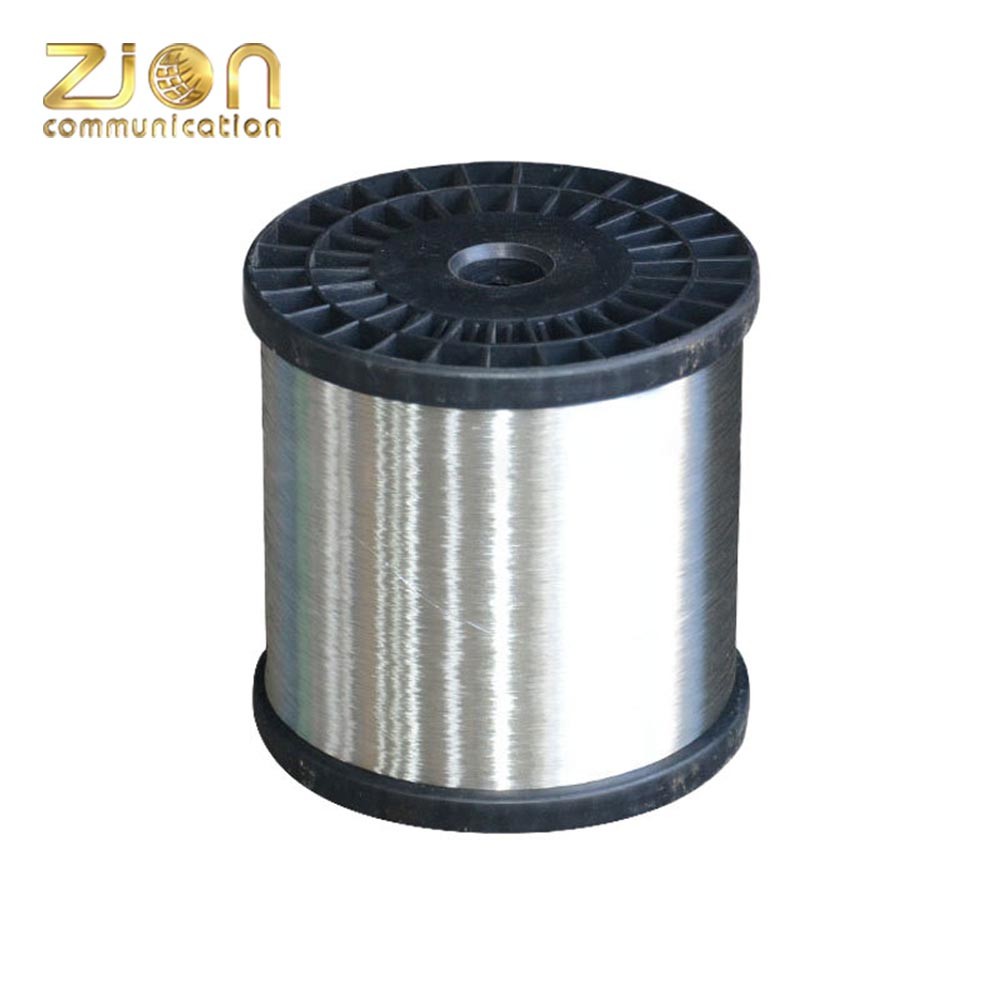

| TC Wire: Tinned Copper Wire | |||||
| Application of Tinned Copper Wire | |||||
| Tinned copper wires are preferred for humid and high-temperature environments. The following are some specific applications: Electronic components / Circuit boards / Test lead wire / Wastewater treatment facilities Subway systems / Utility projects / jewelry-making |
|||||
| Benefits of Tinned Copper Wire | |||||
| Bare copper and tinned copper wires are equally conductive, but the latter provides robust protection against corrosion and oxidation. Here are some other benefits of tinned copper wires: Corrosion resistance, especially in wet or saltwater environments. Extended cable life / Easy solderability |
|||||
| Physical property (TXR 镀锡软圆铜线) | |||||
| Standard diameter (OD) mm |
Elongation % ≥ |
Diameter deviation mm | Density % (g/cm3) |
Max. DC Resistivity Ω.mm2/m(20℃) |
Type |
| 0.05＜d≤0.09 | 6 | +2% d | -1% d | 8.95 | 0.01851 | TXR |
| 0.09＜d≤0.25 | 12 | +2% d | -1% d | 8.95 | 0.01802 | TXR |
| 0.25＜d≤0.50 | 15 | +2% d | -1% d | 8.95 | 0.01770 | TXR |
| 0.50＜d≤2.00 | 20 | +2% d | -1% d | 8.95 | 0.01760 | TXR |
| 2.00＜d≤4.00 | 25 | +2% d | -1% d | 8.95 | 0.01760 | TXR |
| Standard Packing | |||||
| Spools: DIN130, DIN160,DIN 185, DIN250, DIN400 | |||||
