| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Material: | CRS Cold Rolled Steel | Enclosure Type: | 19" Rack Mountable |
|---|---|---|---|
| Installation: | Standard EIA 19" Rack | Fiber Count: | Max. 576Fibers |
| Dimensions (HxWxD): | 482.6mmx455mmx177mm | ||
| High Light: | 48cassettes 4u Patch Panel,576F Rack Mount Patch Panel |
||

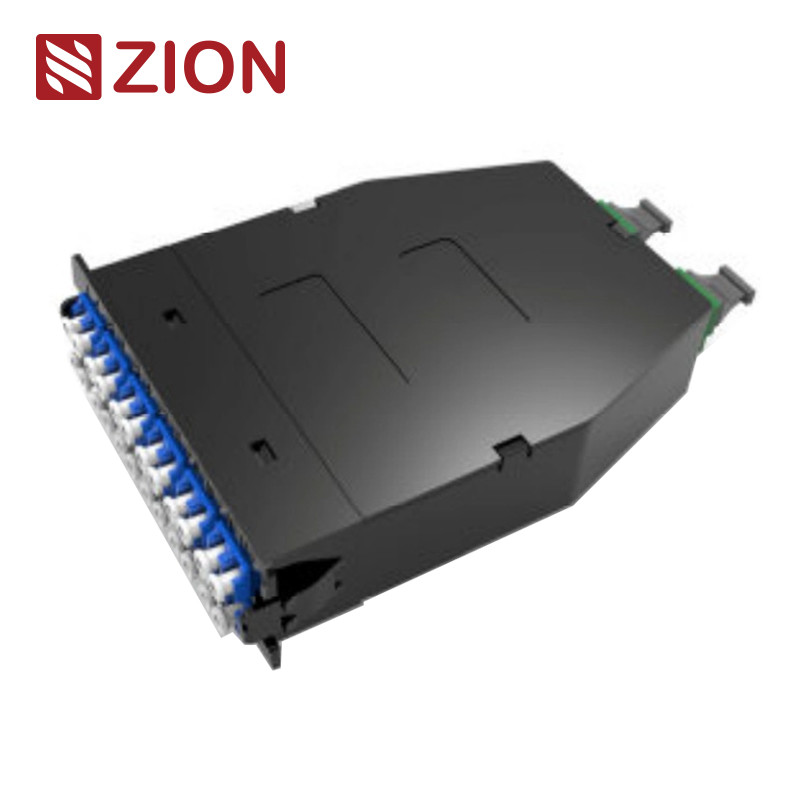

| Ultra high density MTP/MPO-LC Patch panel and cassettes address today's requirements for increasingly higher density levels, are fitted with 12 Fibers and have array adapters on the front side and MTP/MPO at the rear. This cassette is tailor-made for optimizing cable management, speed deployment, and improving flexibility and manage ability for lower installation costs. |
Features:
| • Finishing: powder coated | |||||||||
| • Fits into 19 inch installations | |||||||||
| • Fixed&Sliding tray design | |||||||||
| • Easy to operate and maintain | |||||||||
| • Fixed type, with PC material front transparent cover, convenient for observation and maintenance. | |||||||||
| • Made by cold roll steel, electrostatic powder spraying. | |||||||||
| • Removable Top for Easier Fiber Cable Management | |||||||||
| • Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS |
Products Description:
| The panel is made with cold rolled sheet and frosted painting; cassette is made with aluminum, and adapter plate is made with plastic. the cassette is fixed on the panel with pressing valve. | |||||||||
| MPO fiber optic patch panel, SC/FC/ST/LC,UPC,APC connectors, 1U,2U,3U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components. | |||||||||
| MPO/MTP module Cassettes is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end. |
Matching Cassettes Module and accessories:
Specification:
| Product Code | ZCUHD14F78HM1 | ||||||||
| Material | CRS Cold rolled steel | ||||||||
| Enclosure Type | 19" Rack Mountable | ||||||||
| Installation | Standard EIA 19" Rack | ||||||||
| Compliant | TIA/EIA-568-C.3 | ||||||||
| Fiber Count | Max. 576Fibers | ||||||||
| Dimensions (HxWxD) | 482.6mmx455mmx177mm | ||||||||
| Application | Telecommunication | ||||||||
| Place of Origin | ZheJiang, China | ||||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||||
| MOQ | 50pcs | ||||||||
Application:
| Ultra-High density Data center Cabling system and management . | |||||||||
| Professional MPO/MTP cabling Solution | |||||||||
| UHD Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications. |
Zion Communication's Hot Fiber patch panel
| Zion Code | Product Code | Zion Description | |||||||
| 7236061 | ZCUHD11F37HL1 | 1U UHD MPO/MTP-LC 144F Full cover Fixed Rack mounted Patch panel-12 cassettes | |||||||
| 7236062 | ZCUHD12F57HL1 | 2U UHD MPO/MTP-LC 288F Full cover Fixed Rack mounted Patch panel-24 cassettes | |||||||
| 7236063 | ZCUHD14F78HM1 | 4U UHD MPO/MTP-LC 576F Full cover Fixed Rack mounted Patch panel-48cassettes | |||||||
| 7236064 | ZCUHD11F22HA1 | 1U UHD MPO/MTP-LC 96F Full cover Fixed Rack mounted Patch panel-4 cassettes | |||||||
| 7236065 | ZCUHD13F52HA1 | 3U UHD MPO/MTP-LC 288F Full cover Fixed Rack mounted Patch panel-12 cassettes | |||||||
| 7236066 | ZCUHD14F62HA1 | 4U UHD MPO/MTP-LC 384F Full cover Fixed Rack mounted Patch panel-16 cassettes | |||||||
| 7236067 | ZCFHD11S17HL1 | 1U FHD MPO&MTP-LC 72F Slide Rail Rack mount patch panel-Modular design | |||||||
| 7236068 | ZCFHD11F27HL1 | 1U FHD MPO&MTP-LC 96F Standard fixed Rack mount patch panel Max-4 modules type | |||||||
Naming Rules&Order Confirmation Information:
