| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Durability: | <0.3dBtypical Change, 200 Matings | Interchangeability: | ≤0.2dB |
|---|---|---|---|
| Insert-pull Test: | Above 600 Times, IL＜0.5dB | Tensile Strength: | >70N |
| Operating Temperature (℃）: | -40 To + 85°C | ||
| High Light: | 2.0mm MTP Fiber Optic Cable,Straight MTP To LC Harness Cables |
||
12F MPO(MTP)-MPO(MTP) Fiber Patch Cord is designed for 40G QSFP+ SR4
40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center
| Zion Code | Zion Description | |||||||

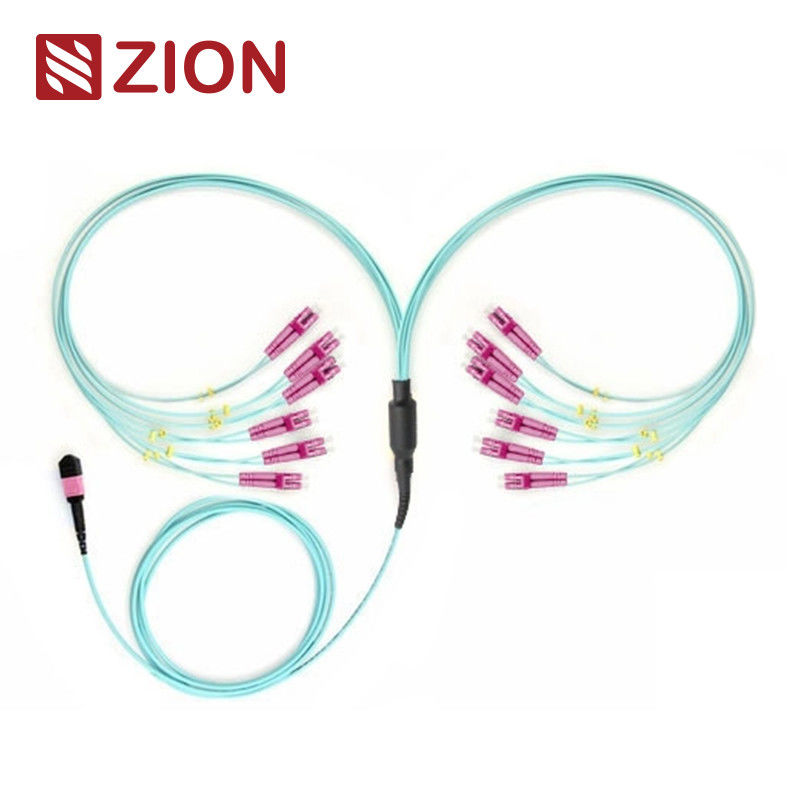

| ZCM21A57HAAX | 24F MTP OM3 Fiber Optic MTP-LC 2.0mm Straight harness Cables | |||||||
| The MTP connector is a type of fiber connecter. MTP (Multi-Fiber Push On) is a multi-core fiber connecter type. The MTP high -density fiber pre -connection system is currently mainly used in the application of high -density environments of data centers, the application of optical fiber to the building, and the internal connection applications inside the optical transceiver equipment such as the optical device, 40G, 100G, QSFP+. | ||||||||
| MTP connector types are distinguished according to the EIA/TIA-604-5 regulations: core numbers (array number), male head (Male, Female), polarity (PC or APC). | ||||||||
| 24 cores MTP Female to 12 LC Duplex( 12xLC uniboot;24 LC Simplex) 24F MTP- LC/SC/FC/ST Straight harness Cables are terminated with MTP and LC/SC/FC/ST connector on both ends. The 24pcs(12pcs for LC uniboot;24 LC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length . It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. |
||||||||
| 24F MTP- LC/SC/FC/ST Straight harness Cables designed for 100GBASE-SR10 CXP/CFP Interconnect Solution,100GBASE-LR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 24 Fiber harness cable is used for connecting (12) SFP+ into a MTP adapter panel and MTP trunk. | ||||||||
Connectors’ Industrial Standard:
| Connector | Reference | Housing Details | ||||||
| MTP Singlemode | EIA/TIA-604-5 | SM APC: Green connectors+black boot (Standard Loss MTP) SM APC: Yellow connectors+black boot (Super low loss MTP) |
||||||
| MTP Multimode | EIA/TIA-604-5 | OM1&OM2 PC: Beige connectors+black boot (Standard Loss MTP) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MTP) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MTP) |
||||||
| Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant Structured cabling per TIA-568-C | ||||||||
| 10G Fiber Channel Compliant | ||||||||
| 40G and 100G IEEE 802.3 |
Other connectors’ Industrial Standard:
| SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973 | ||||||||
| LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973. | ||||||||
| FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973 | ||||||||
| ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc | ||||||||
| E2000: IEC61754-15 |
Available for
| G657A1 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000 | ||||||||
| G657A2/B2 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000 | ||||||||
| G657B3 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000 | ||||||||
| OM1 62.5/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000 | ||||||||
| OM2 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000 | ||||||||
| OM3 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000 | ||||||||
| OM4 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000 | ||||||||
| OM5 50/125 MTP-LC, MTP-SC,MTP-FC,MTP-SC,MTP-ST,MTP-E2000 |
Optical Specifications:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) | ||||||
| nsertion loss (MTP) (IEC 61300-3-34) |
Standard loss:≤0.75dB(max), ≤0.50dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss:≤0.6dB(max), ≤0.50(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
||||||
| Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) |
≤0.3dB | ≤0.3dB | ||||||
| Return loss(MTP) | ≥60dB(8degree polishing) | ≥25dB | ||||||
| Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB | ||||||
| Durability | <0.3dB typical change, 200 matings | |||||||
| Interchangeability | ≤0.2dB | |||||||
| Insert-pull Test | Above 600 times, IL＜0.5dB | |||||||
| Tensile strength | >70N | |||||||
| Operating Temperature (℃) | ·-40 to + 85°C | |||||||
Features:
| Low insertion loss, high return loss | ||||||||
| MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies | ||||||||
| Economical solution for mass-termination of fiber | ||||||||
| Designed for low loss and standard loss SM and MM applications | ||||||||
| Ruggedized round cable, oval cable and bare ribbon options available | ||||||||
| Color coded housings available to differentiate fiber type, polish type and/or connector grade | ||||||||
| Good in repeatability and exchangeability |
The merits of MPO/MTP Patch cable/trunk cable generally include:
| High quality—MPO/MTP Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control. | ||||||||
| Decreasing cable volume—MPO/MTP Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers | ||||||||
| Time saving—With the special plug and play design, MPO/MTP Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time. |
Application:
| 24F MTP- LC/SC/FC/ST Straight harness Cables designed for 100GBASE-SR10 CXP/CFP Interconnect Solution,100GBASE-LR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications.This 24 Fiber harness cable is used for connecting (12) SFP+ into a MTP adapter panel and MTP trunk | ||||||||
| All of OMC’s MTP Connectors are from Senko/Nissin/Sumitomo. MTP Fiber Patch Cord is a kind of high density cable assemblies which is generally use in three areas. | ||||||||
| The Data Center application with high dense degree environment | ||||||||
| The optical fiber to the building | ||||||||
| The internal connector application in fiber equipment. |
Naming Rules&Order Confirmation Information:
Zion Communication's Hot MTP-LC Straight harness Cables
| Zion Code | Zion Description | |||||||
| 7236037 | ZCM11A12HIAX | 8F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236038 | ZCM11A22HIAX | 12F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236039 | ZCM11A52HIAX | 24F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236040 | ZCM11A17HAAX | 8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236041 | ZCM11A27HAAX | 12F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236042 | ZCM11A57HAAX | 24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236043 | ZCM11A18HMAX | 8F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236044 | ZCM11A28HMAX | 12F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236045 | ZCM11A58HMAX | 24F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236046 | ZCM21A12HIAX | 8F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236047 | ZCM21A22HIAX | 12F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236048 | ZCM21A52HIAX | 24F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236049 | ZCM21A17HAAX | 8F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236050 | ZCM21A27HAAX | 12F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236051 | ZCM21A57HAAX | 24F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236052 | ZCM21A18HMAX | 8F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236053 | ZCM21A28HMAX | 12F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| 7236054 | ZCM21A58HMAX | 24F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables | ||||||
| Connector | Fiber Channel | |||||||
Three Connection Methods Help Keep the Right MPO/MTP Polarity
MTP –24 x LC Simplex structure-Type 1
MTP ––12 x LC Duplex structure-Type 2-Type A
MTP –12 x LC Duplex structure-Type 2-Type B
MTP –12 x LC Duplex structure-Type 2-Type C
MTP –Polarity for MTP –12 x Uniboot LC structure-Type 3
Material’s details
Packaging
| This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized. | ||||||||
OEM/ODM service for you
| 1. Cable color, printing word, material of cable jacket, connector’s color | ||||||||
| 2. OEM Label, Identify ring, cable’s label,box, shipping marks | ||||||||
| 3. Different quality Level. |
