| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE,CPR, RoHS |
| Model Number: | JB |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Bare Copper, Solid | Insulation: | LSZH T17 |
|---|---|---|---|
| Identification:: | Colored DIN VDE 0815 | Separator: | Polyester Foil |
| Drain Wire: | Tinned Copper, Solid | Shield: | Aluminum/PET Foil |
| High Light: | LSZH T17 Fire Rated Control Cable,Wire Resistance Fireproof Electrical Cable |
||

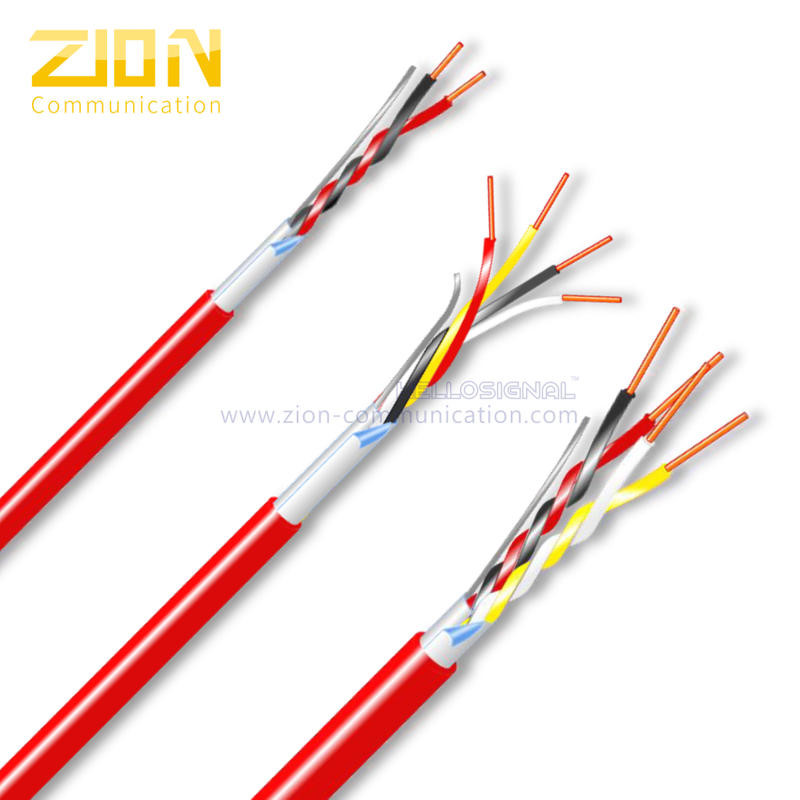

JB-H(St)H | J-H(St)H |
|||||||
| Technical Data and Standards | |||||||
| Conductor: | Bare Copper, Solid | ||||||
| Conductor standard: | EN 60228 CI.1 | ||||||
| Insulation: | LSZH T17 | ||||||
| Insulation Standard: | DIN VDE 0207 | ||||||
| Identification: | Colored DIN VDE 0815 | ||||||
| Separator: | Polyester Foil | ||||||
| Drain Wire | Tinned Copper, Solid | ||||||
| Shield: | Aluminum/PET Foil | ||||||
| Out Jacket: | LSZH M1 | ||||||
|
※ J- Installation Cable | B-Fire alarm | H-LSZH insulation | (St)-Electrostatic Screen | H-LSZH Jacket |
|||||||
|
※ LSZH: Thermoplastic Halogen-free compound T17
|
|||||||
| COMPLIANCE (Reference Standard and Certificates) | |||||||
| · Conductor: EN 60228 CI.1 | Insulation: EN 50363-7 | Jacket: EN50363-8 | |||||||
| · Fire behaviour: IEC 60332.3/EN 60332-3 | |||||||
| · Halogen free: IEC 60574.1/EN50267-2-1 | Low Smoke emission: EN61034.2 | |||||||
|
|
|||||||
| Application Support | |||||||
| · These cables are designed for signal transmission in fire detection systems. | |||||||
| · For fixed installation on and under plaster,in dry and damp rooms but also in the open air for fixed installation on outer walls of buildings. |
|||||||
| · Suitable for installation in public buildings (hospitals, theatres, ecc.). | |||||||
| Technical Data of conductor | |||||||
| Diameter(mm) | 0,80 | 1,00 | 1,13 | 1,50 | |||
| Section(mm²) | 0,50 | 0,80 | 1,00 | 1,80 | |||
| Cond. Resistance (ohm/km) | 34,50 | 22,00 | 17,20 | 9,80 | |||
| Cond. Loop Res.(ohm/km) | 69,00 | 44,00 | 34,40 | 19,60 | |||
| Electrical Characteristics | |||||||
| Peak Operating Voltage | 300 V | ||||||
| Operating Voltage Uo | 500 V | ||||||
| Test Voltage | 800 V | ||||||
| Insulation Resistance | ＞100M ohm/km | ||||||
| PHYSICAL PROPERTIES | |||||||
| Bend Radius(Min) | 10×OD of Jacket | ||||||
| Operating Temperature | -15 ℃ to 70 ℃ | ||||||
| Construction | |||||||
| Item | Inner Conductor | Insulation | Shield | Jacket | |||
| Cores | OD (mm) |
Section (mm²) |
OD (mm) |
Color | OD (mm) |
||
| JBHSH0102080 | 1×2 | 0,80 | 0,50 | 1,55 | R/B | PET Foil Drain Wire AL/PET Foil |
4,30 |
| JBHSH0104080 | 1×4 | 0,80 | 0,50 | 1,55 | R/B/W/Y | 5,10 | |
| JBHSH0202080 | 2×2 | 0,80 | 0,50 | 1,55 | R/B/W/Y | 6,50 | |
| JBHSH01020100 | 1×2 | 1,00 | 0,80 | 1,90 | R/B | 5,20 | |
| JBHSH0102113 | 1×2 | 1,13 | 1,00 | 45.0 | R/B | 5,60 | |
| JBHSH0102150 | 1×2 | 1,50 | 1,80 | 42.0 | R/B | 7,40 | |
| ※ R:RED B:BLACK W:WHITE Y:YELLOW | |||||||
| ※ Tolerance range for insulation and sheath diameter. Insulation: ±0,05mm | Jacket:±0,30 mm | |||||||
| Order Informations | |||||||
| Marking | HELLOSIGNAL JB-H(ST)H N×N×N Fire alarm Cable ...300M(or Per customer's request) | ||||||
| Inner Package | 300m/Spool(or Per customer's request) | ||||||
| Outer Package | Carton, Pallet (or Per customer's request) | ||||||
| Delivery time | Normally 25 days after received the deposit. | ||||||
| Brand | HELLOSIGNAL® OR OEM | ||||||
