| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE, RoHS |
| Model Number: | RG11 S |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Delivery Time: | Normally 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 0.064"/1.63mm/14AWG CCS | Dielectric: | 0.280"/7.11mm Foamed FEP |
|---|---|---|---|
| Shield 1: | 0.287"/7.29mm Bonded Aluminum PET | Shield 2: | Aluminum Braid Wire 60% Coverage |
| Jacket: | 0.350"±0.006"/8.90±0.15mm PVC CMP | Jacket Thickness: | 0.016"/0.40mm |
|

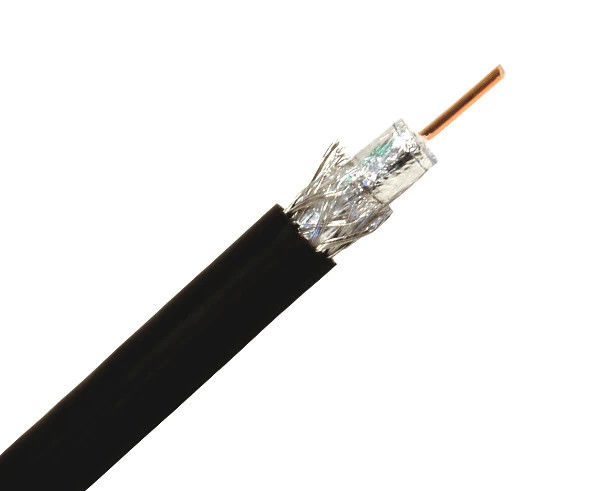

75 Ohm CATV coaxial Cable NO.7100210 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.064"/1.63mm/14AWG CCS | ||
| Dielectric | 0.280"/7.11mm Foam FEP | ||
| Shield 1 | 0.287"/7.29mm Bonded Aluminum PET | ||
| Shield 2 | Aluminum braid wire 60% coverage | ||
| Jacket | 0.350"±0.006"/8.90±0.15mm PVC CMP | ||
| Jacket Thickness | 0.016"/0.40mm | ||
| Application | For Use in Longer CATV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 38 Ω/km < 11.59 Ω/1000ft |
||
| Capacitance | 52 ±3 pF/m 15.85 ±1 pF/ft | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.85 | ||
| Sparker Test (VAC) | 4 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 60℃ | ||
| Cable diamensions | 0.350"±0.006"/8.90±0.15mm PVC CMP | ||
| Cross Section | |||
| |
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 1 | 0.09 | 0.30 | |
| 50 | 0.90 | 2.95 | |
| 100 | 1.28 | 4.20 | |
| 200 | 1.85 | 6.07 | |
| 400 | 2.75 | 9.02 | |
| 700 | 3.92 | 12.85 | |
| 900 | 4.72 | 15.48 | |
| 1000 | 5.04 | 16.52 | |
| 1450 | 6.67 | 21.87 | |
| 1800 | 7.71 | 25.28 | |
| 2200 | 8.80 | 28.85 | |
| 3000 | 11.00 | 36.07 | |
| Order Informations: | |||
| Marking |
HELLOSIGNAL RG11 S 60% PVC CMP CATV COAXIAL CABLE 7100210 ×××M/FT |
||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
