| Conductor: | 23 AWG Solid Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Insulation: | 1.35 Mm Skin-Foam-Skin | Colors: | Blue-White/Blue,Orange-White/Orange |
| Overall Shield: | Individual Pair Shield,Al/PET Foil,Foil Face Out | Drain Wire: | 0.40±0.005mm TC |
| Rip Cord: | Cotton | Out Jacket: | PVC , PVC CM , PVC CMR , LSZH |
| High Light: | Low Smoke CAT6 Network Cable,LSZH CAT6 Network Cable,Reel CAT6 Network Cable |
||

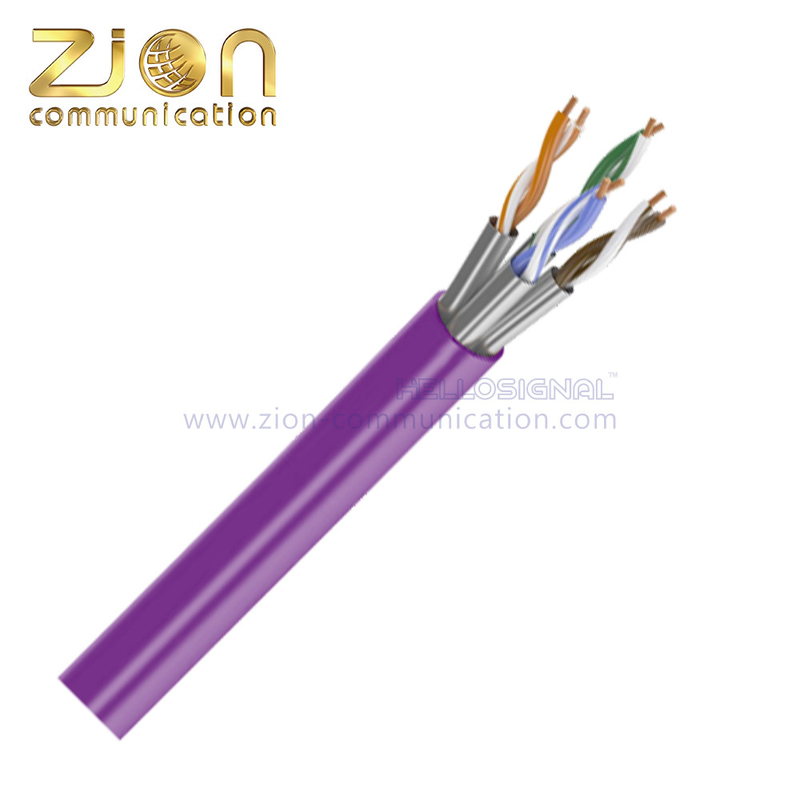

CAT6A U/FTP COPPER Low Smoke LSZH 600MHZ Network Cable Reel 305m
| U/FTP CAT6A CABLE | ||||||||||
| |
||||||||||
| COMPLIANCE (Reference Standard and Certificates) | ||||||||||
| IEC/ISO 61156-5; ANSI/TIA568C.2; ISOIIEC 11801 | ||||||||||
| Application Support | ||||||||||
| • Suitable for structured premises cabling. | ||||||||||
| • For transmission of digital and analogue voice and data signals. | ||||||||||
| • Especially suitable for all Class EA applications. | ||||||||||
| • ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3). | ||||||||||
| • Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5). | ||||||||||
| Construction | Electrical Characteristics | |||||||||
| Conductor: | 23 AWG Solid Bare Copper | Impedance | 4 - 100 MHz : 100±15 Ohms | |||||||
| Pairs: | 4 Pairs | 100 - 200 MHz : 100±22 Ohms | ||||||||
| Insulation: | 1.35 mm Skin-Foam-Skin | 200 - 500 MHz : 100±32 Ohms | ||||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | Max.Conductor DC Resistance 20℃ |
8.7 Ohms/100m | |||||||
| Green-White/Green,Brown-White/Brown | ||||||||||
| Overall Shield: | Individual Pair shield,Al/PET Foil,Foil face out | Res. unbalance (%) | Max. 2.5 | |||||||
| Drain Wire: | 0.40±0.005mm TC | Pair to Ground Capacitance Unbalance |
330 pF/100m | |||||||
| Rip Cord: | Cotton | |||||||||
| Out Jacket: | PVC , PVC CM , PVC CMR , LSZH | Transfer Impendance | Max 10 mOhms/m @100Mhz | |||||||
| Installation temp. | -30 - 50℃ | |||||||||
| Operation temp. | -20 - 75℃ | |||||||||
| Performance Characteristics | ||||||||||
| Frequency | RL (Min.) |
Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) |
PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) | ||
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m | ||
| 1 | 20.0 | 2.1 | 570 | 45 | 74.3 | 72.3 | 67.8 | 64.8 | ||
| 4 | 23.0 | 3.8 | 552 | 45 | 65.3 | 63.3 | 55.8 | 52.8 | ||
| 10 | 25.0 | 6.0 | 545 | 45 | 59.3 | 57.3 | 47.8 | 44.7 | ||
| 16 | 25.0 | 7.6 | 543 | 45 | 56.2 | 54.2 | 43.7 | 40.7 | ||
| 20 | 25.0 | 8.5 | 542 | 45 | 54.8 | 52.8 | 41.8 | 38.8 | ||
| 31.25 | 25.0 | 10.7 | 540 | 45 | 51.9 | 49.9 | 37.9 | 34.9 | ||
| 62.5 | 21.5 | 15.4 | 539 | 45 | 47.4 | 45.4 | 31.9 | 28.9 | ||
| 100 | 20.1 | 19.8 | 538 | 45 | 44.3 | 42.3 | 27.8 | 24.8 | ||
| 200 | 18.0 | 29.0 | 537 | 45 | 39.8 | 37.8 | 21.8 | 18.8 | ||
| 300 | 17.3 | 36.4 | 536 | 45 | 37.1 | 35.1 | 18.3 | 15.3 | ||
| 400 | 17.3 | 43.0 | 536 | 45 | 35.3 | 33.3 | 15.8 | 12.8 | ||
| 500 | 17.3 | 45.3 | 536 | 45 | 33.8 | 31.8 | 13.8 | 10.8 | ||
| Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||||
| Jacket Physical Properties | ||||||||||
| Jacket | ||||||||||
| Aging | Cold Bend | |||||||||
| Item | Aging Period | 100°*24H*7D | Cold Period | -20±2°C*4H | ||||||
| Before Aging | After Aging | Bend Radius | 8*Cable O.D. | |||||||
| PVC | Tensile Strength | ≥13.5 Mpa | ≥12.5 Mpa | No Visible Cracks | ||||||
| Elongation | ≥150 % | ≥125 % | ||||||||
| LSZH | Tensile Strength | ≥10.0 Mpa | ≥8.0 Mpa | No Visible Cracks | ||||||
| Elongation | ≥125% | ≥100% | ||||||||
| PE | Tensile Strength | ≥10.0 Mpa | ≥8.0 Mpa | No Visible Cracks | ||||||
| Elongation | ≥350 % | ≥350 % | ||||||||
| P/N | Description | |||||||||
| NO.7112322 | U/FTP CAT6A 4PR 23AWG PVC XXX | |||||||||
| NO.7112323 | U/FTP CAT6A 4PR 23AWG PVC CM XXX | |||||||||
| NO.7112324 | U/FTP CAT6A 4PR 23AWG PVC CMR XXX | |||||||||
| NO.7112326 | U/FTP CAT6A 4PR 23AWG LSZH XXX | |||||||||
