| Conductor: | Solid Bare Copper | Insulation: | PVC T12(Y12) |
|---|---|---|---|
| Separator: | Polyester Foil | Shield: | Aluminum/PET Foil |
| Jacket: | PVC TM2(YM2) | Package: | 500FT, 1000FT, Wooden Spool, Carton |
| Fire Behaviour: | IEC 60332-1-2 | ||
| High Light: | JB-Y(St)Y Fire Alarm Cable,Aluminum Foil Fire Alarm Cable,PET Foil Fire Resistant Cable |
||

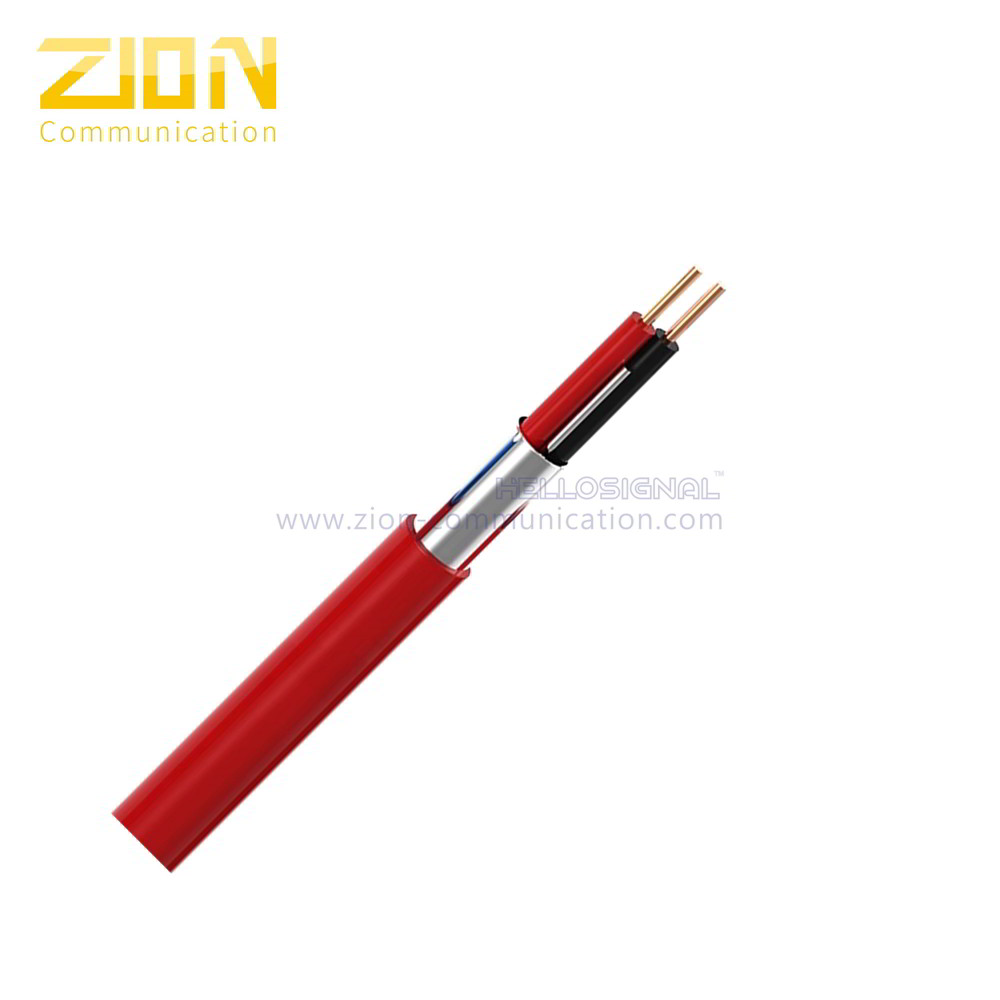

JB-Y(St)Y Fire Alarm Cable Aluminum/PET Foil PVC T12(Y12) IEC 60332-1-2 Fire Cable
| JB-Y(St)Y | J-Y(St)Y | ||||||||
| Technical Data and Standards | ||||||||
| Conductor: | Bare Copper, Solid | |||||||
| Conductor standard: | EN 60228 CI.1 | |||||||
| Insulation: | PVC T12(Y12) | |||||||
| Insulation Standard: | DIN VDE 0207 | |||||||
| Identification: | Colored DIN VDE 0815 | |||||||
| Separator: | Polyester Foil | |||||||
| Drain Wire | Tinned Copper, Solid | |||||||
| Shield: | Aluminum/PET Foil | |||||||
| Out Jacket: | PVC TM2(YM2) | |||||||
| Fire behaviour | IEC 60332-1-2 | |||||||
| ※ J- Installation Cable | B-Fire alarm | Y-PVC insulation | (St)-Electrostatic Screen | Y-PVC Jacket | ||||||||
| COMPLIANCE (Reference Standard and Certificates) | ||||||||
| · Conductor: EN 60228 CI.1 | ||||||||
| · Insulation: EN 50363-3 | Jacket: EN50363-4-1 | ||||||||
| · Fire behaviour: IEC 60332-1-2 | ||||||||
| Application Support | ||||||||
| · These cables are designed for signal transmission in fire detection systems. | ||||||||
| · For fixed installation on and under plaster,in dry and damp rooms but also in the open air for fixed installation on outer walls of buildings. |
||||||||
| Technical Data of conductor | ||||||||
| Diameter(mm) | 0,80 | 1,00 | 1,13 | 1,50 | ||||
| Section(mm2) | 0,50 | 0,80 | 1,00 | 1,80 | ||||
| Cond. Resistance (ohm/km) | 34,50 | 22,00 | 17,20 | 9,80 | ||||
| Cond. Loop Res.(ohm/km) | 69,00 | 44,00 | 34,40 | 19,60 | ||||
| Electrical Characteristics | ||||||||
| Peak Operating Voltage | 300 V | |||||||
| Operating Voltage Uo | 500 V | |||||||
| Test Voltage | 800 V | |||||||
| Insulation Resistance | ＞100M ohm/km | |||||||
| PHYSICAL PROPERTIES | ||||||||
| Bend Radius(Min) | 10×OD of Jacket | |||||||
| Operating Temperature | -15 ℃ to 70 ℃ | |||||||
| Construction | ||||||||
| Item | Inner Conductor | Insulation | Shield | Jacket | ||||
| Cores | OD (mm) |
Section (mm2) |
OD (mm) |
Color | OD (mm) |
|||
| JBYSY0102080 | 1×2 | 0,80 | 0,50 | 1,55 | R/B | PET Foil Drain Wire AL/PET Foil |
4,30 | |
| JBYSY0104080 | 1×4 | 0,80 | 0,50 | 1,55 | R/B/W/Y | 5,10 | ||
| JBYSY0202080 | 2×2 | 0,80 | 0,50 | 1,55 | R/B/W/Y | 6,50 | ||
| JBYSY01020100 | 1×2 | 1,00 | 0,80 | 1,90 | R/B | 5,20 | ||
| JBYSY0102113 | 1×2 | 1,13 | 1,00 | 2,10 | R/B | 5,60 | ||
| JBYSY0102150 | 1×2 | 1,50 | 1,80 | 2,90 | R/B | 7,40 | ||
| ※ R:RED B:BLACK W:WHITE Y:YELLOW | ||||||||
| ※ Tolerance range for insulation and sheath diameter. Insulation: ±0,05mm | Jacket:±0,30 mm | ||||||||
| Order Informations | ||||||||
| Marking | HELLOSIGNAL JB-Y(ST)Y N×N×N Fire alarm Cable ...300M(or Per customer's request) | |||||||
| Inner Package | 300m/Spool(or Per customer's request) | |||||||
| Outer Package | Carton, Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
