12 Fibers LC UPC G.652.D Single Mode Unjacketed Color Coded Fiber Optic Patch Cord FOPT

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC 12 Fibers G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	Unjacketed LC UPC Patch Cord , Color Coded LC UPC Patch Cord

Product Description

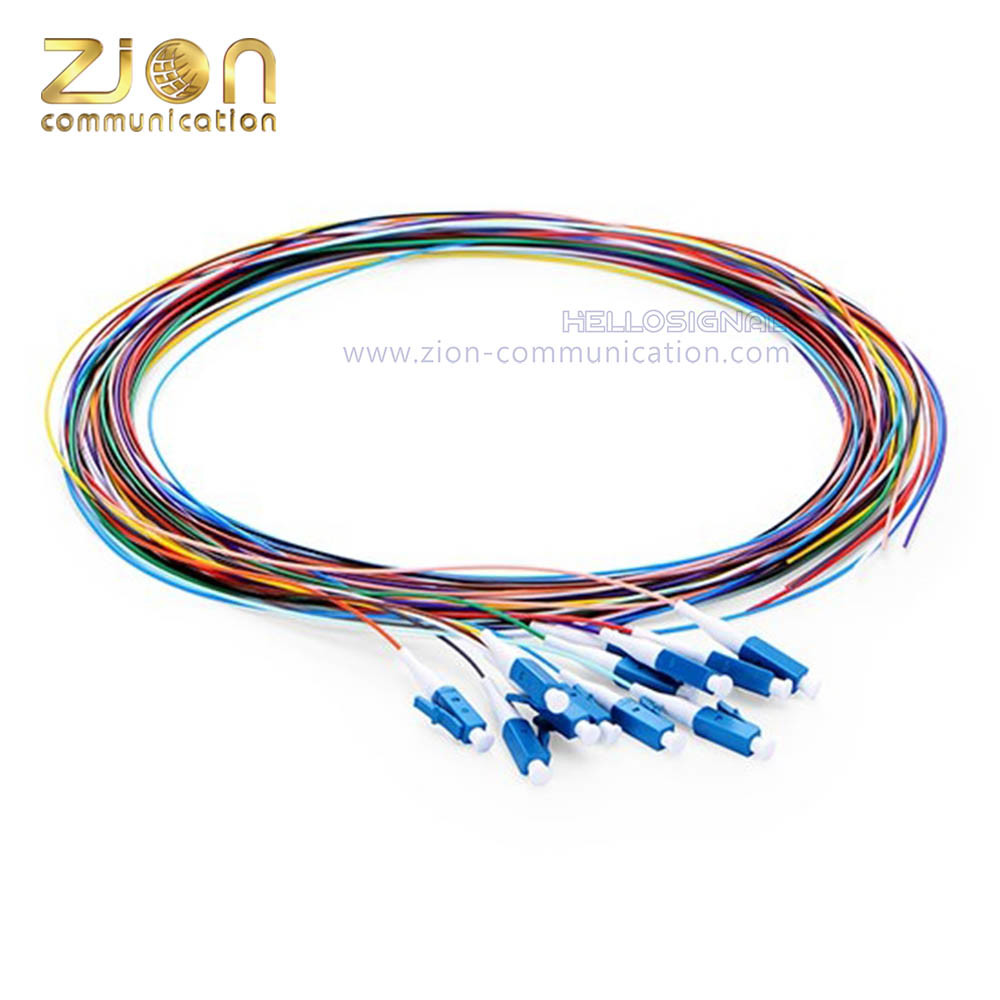

LC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded FOPT

High-performance fiber optic patch cord designed for reliable data transmission in telecommunications and networking applications.

Product Code: 11F12111U-2

Fiber Optic Cable Specifications

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2) Multi-mode: OM1(62.5/125), OM2(50/125), [(OM3, OM4) (50/125,Laser Optimization)]
900um/0.9mm Buffer Colour	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4 Customized: Green, Brown, White, Red, Black, Purple, Rose, Slate
900um/0.9mm Types	Single Typical: 1 Fiber Bunch Typical: 12 Fibers Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm)	Aramid yarn is laid over the cable core to serve as peripheral strength member.
Cable Jacket	Main material: PVC / LSZH / Plenum (OFNP) OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color	Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2) Orange: OM1, OM2 Aqua: OM3, OM4
Cable Length	1m, 2m, 3m. Other lengths available on request

Connector Specifications

Connector Type	LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

LC (Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections, SFP and SFP+ transceivers, XFP transceivers

Performance Parameters

Parameter	LC UPC SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm)	1310-1550
Insertion Loss (dB)	≤ 0.3
Return Loss (dB)	≥ 55
Repeatability (dB)	≤ 0.1
Interchangeability (dB)	≤ 0.2
Tensil Strength (N)	≥ 1000
Operating Temperature (℃)	-20 ~ +85
Storage Temperature (℃)	-40 ~ +85

Product Identification

Zion Code	Description
11F12111U-2	LC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded FOPT

OEM/ODM Customization Services

ZION Communication has extensive experience in producing OEM/ODM solutions with our professional R&D team.

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Color & Different Lengths Available
