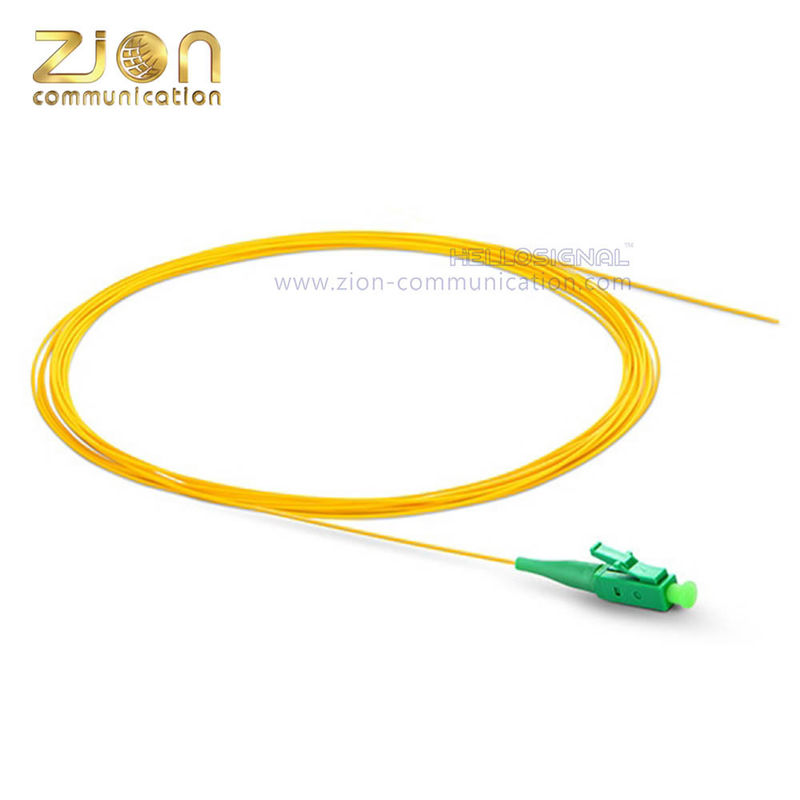

G.652D Fiber Optic Patch Cord with LC APC Connector and PVC Jacket for Single Mode Applications

G.652D Fiber Optic Patch Cord with LC APC Connector and PVC Jacket for Single Mode Applications
G.652D Fiber Optic Patch Cord with LC APC Connector and PVC Jacket for Single Mode Applications
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: LC APC Simplex G.652.D
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 25 workingdays
Payment Terms: T/T,L/C
Supply Ability: 30,000 PCS / Month
Get Best Price Contact Now
Detail Information
Fiber Unit: G.652D Or G.657A Tight Buffer Fiber: Tight Buffer Fiber
Jacket: PVC Or LSZH Color: Yellow
Package: 1 PC/Plastic Bag, PCS/Carton
Highlight:

Yellow OS2 LC APC Simplex

,

G.652D Fiber Unit LC APC Simplex

Product Description

G.652D Fiber Unit LC APC Simplex Single Mode With PVC Jacket
Fiber Optic Patch Cord Overview

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now G.652D Fiber Optic Patch Cord with LC APC Connector and PVC Jacket for Single Mode Applications 0

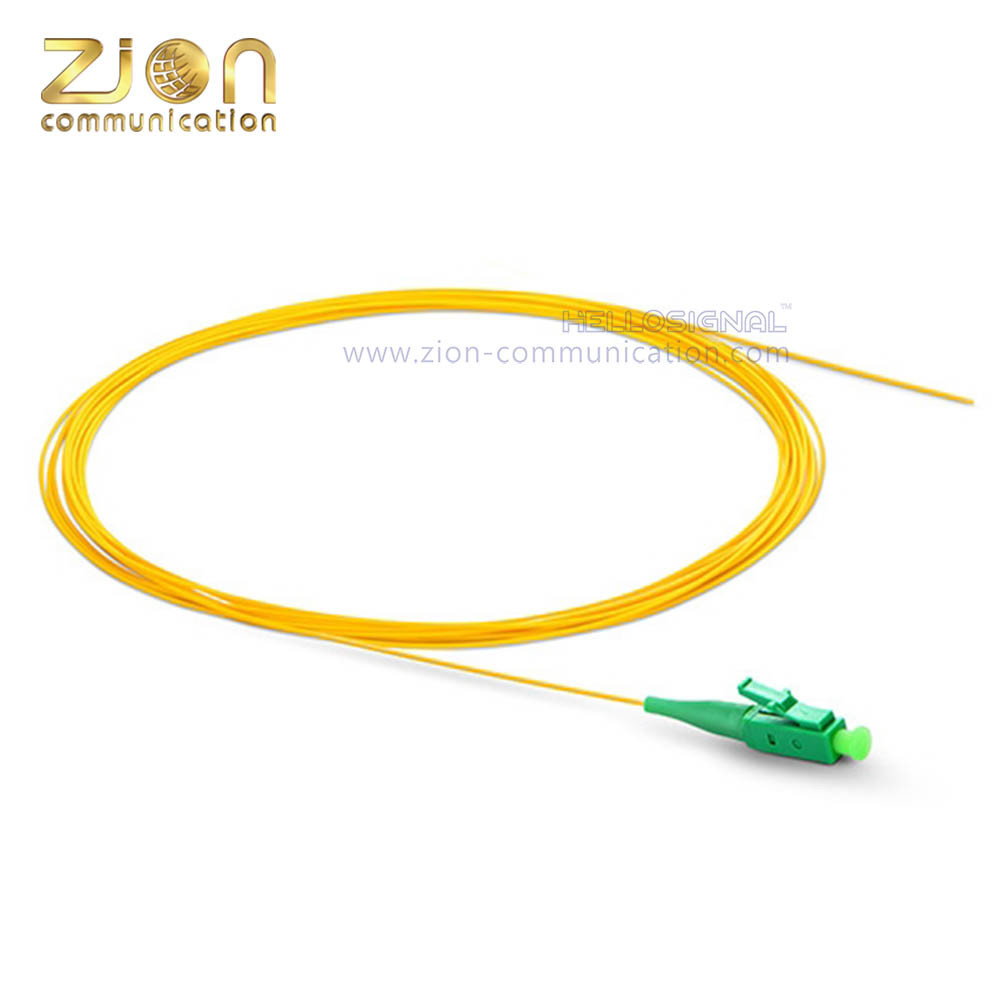

LC APC Simplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPT
Product Specifications
Fiber Optic Cable Details
Fiber Type Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125), [(OM3, OM4) (50/125,Laser Optimization)]
900um/0.9mm Buffer Colour Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized: Green,Brown,White,Red,Black,Purple,Rose,Slate
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core to serve as peripheral strength member.
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. Other lengths available on request
Connector Specifications
Connector Type LC, SC, FC, ST, MU, MTRJ, LSH, E-2000
G.652D Fiber Optic Patch Cord with LC APC Connector and PVC Jacket for Single Mode Applications 1

LC (Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections, SFP and SFP+ transceivers, XFP transceivers

G.652D Fiber Optic Patch Cord with LC APC Connector and PVC Jacket for Single Mode Applications 2
Performance Parameters
Parameter LC APC SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm) 1310-1550
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 60
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensil Strength (N) ≥ 1000
Operating Temperature (℃) -20 ~ +85
Storage Temperature (℃) -40 ~ +85
Product Identification
Zion Code Description
12F1111-2 LC APC Simplex G.652.D Single Mode PVC 0.9mm -2m(6ft) FOPT
G.652D Fiber Optic Patch Cord with LC APC Connector and PVC Jacket for Single Mode Applications 3
OEM/ODM Customization Services

ZION Communication has extensive experience in producing OEM/ODM solutions with our professional R&D team.

  • Customized Logo
  • Printing on Cable
  • Label/PE bag/Carton design
  • Different Color & Different Lengths Available
