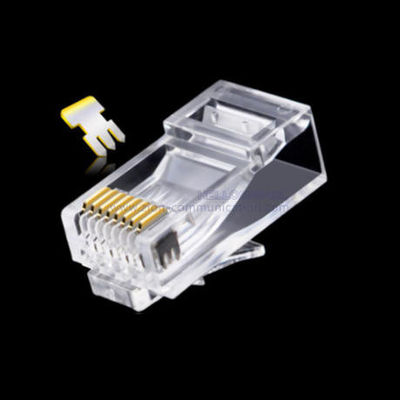

Cat6A UTP 8P8C RJ45 Connector Plug with Polycarbonate Material and Phosphor Bronze Contacts

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024014

Categories:

Cat6 Plug

Highlight:

CAT6A Plug Accessories

150Vac Modular Plug

Polycarbonate Modular Plug

Product Description

Cat6A UTP 8P8C RJ45 Connector Plug

High-performance Cat6A UTP 8P8C RJ45 connector plug accessories manufactured by Zion Communication. These polycarbonate connectors are designed for reliable network connectivity in industrial and commercial applications.

More details available on our Copper System Equipment page

Product Specifications

Part Number	7024014 \| ZC-MP6A88UR
Product Type	Modular Plug, 8P/8C, CAT6A, round, 8-position crystal head
Package Quantity	100/bag

Physical Characteristics

Dimensional Structure

Technical Specifications

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac
Fluke Test Compliance	Compliant

General Specifications

Cable Type	Round
Interface	RJ45
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Positions/Loaded Contacts	8P/8C

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-23 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ
Material Type	PC = Polycarbonate
Plug Insertion Life, minimum	750 times

Compliance & Certifications

RoHS 2011/65/EU

Compliant

Order Information

Label Customization	Available
Delivery Time	Normally 15 working days
Brand	Hellosignal ®
OEM Services	Yes
Contact Email	info@zion-communication.com
